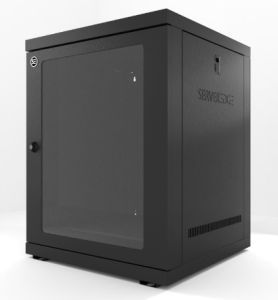

Serveredge Wall Mount cabinets and rack enclosures are perfect for storing your standard rack mount equipments on wall in various locations such as wiring receptacles, POS stations and offices were you have access to very limited floor space.This Serveredge rack is made up of sturdy wall mounting bracket and steel frame. It can mount up to 80 Kg of rack mount hardware. Vertical Mounting Rails in the rack are adjustable and can accommodate all standard 19 inch rack equipment. These Serveredge wall mount racks feature a toughened &tempered lockable glass door with perforated side panels to assure a generous airflow to keep your equipment operating safely. Side Panels of this rack are lockable &removable to ensure easy access to the mounted devices. The top and bottom panels of this rack include convenient cable routing ports. The rack features a removable back panel for easy routing cable through the wall when need be. The ingenious design allows for castors to be installed on the rack for use as a Free Standing Rack.  The rack ships fully assembled and comes with a 25 Year manufacturers product warranty.





Installed whole system maximum rack depth (mm): 500


Rack Height: 15RU


Shipping Dimensions (WDH/mm): 665 X 665X 780


Shipping weight (kg): 38


Unit Dimensions (WDH/mm): 600 X 600 X 770


Unit weight (kg): 32


Colour : Black


Weight Capacity - Stationary (kg): 80


Grounding lug: Front and Back Door Frames





(1) Wall Mount Rack
(20) M6 screws
(20) M6 cage nuts
(20) M6 washers
(1)  Fixed Shelf
(2) Keys





Designed for limited space environments where equipment needs to be secure and out of the way
Adjustable front vertical rack mount rails
Locking, reversible front door and locking, removable side &rear panels
Ingenious design allows for castors to be installed on the rack for use as a Free Standing Rack
Fully assembled for quick installation* Confirm to Standard ANSI/EIA RS-310-D, IEC297-2, DIN4191; PART1, DIN4194; PAT7, GB/T3047M 2-92
Warranty : 25-year
