ECR10R

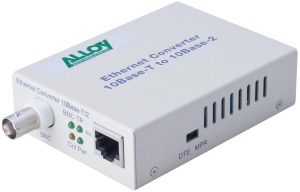

Ethernet Standalone/Rackmount Media Converter 10Base-T (RJ-45) to 10Base-2 (BNC), 185m



The ECR10R, an ECR10 Series Ethernet Media Converter, can be used 'Standalone' or installed in an Alloy DCR12 Series Media Converter Chassis. It has a 10Base-T and a 10Base-2 thin coax port with a BNC connector. Thin coax cable range is up to 185m.



The ECR10R is a dual purpose Fast Ethernet Media Converter. It can be used as a standalone device, or can be installed as a Media Converter Module into any Alloy DCR12 Series 12-slot Media Converter Chassis. With a 10Base-T RJ-45 port and a 10Base-2 BNC terminated port, the ECR10R is designed for 10Mbps copper UTP to 10Mbps copper RG-58 Thin coax ('Thinnet') cable segment media conversion applications in legacy Ethernet networks. The RJ-45 port supports Ethernet UTP/STP links at up to a 100 metres range, and the 100Base-2 port has a maximum thin coax cable range of up to 185 metres.

The ECR10R is a model from Alloy's ECR10 Series of Dual Purpose Media Converters. As mentioned above, these Converters can be used 'standalone' or installed in an Alloy DCR12 Series Media Converter chassis. In addition to the ECR10R, other models in the series support a 10Mbps RJ-45 copper to 10Base-FL multimode fibre media conversion with either SC or ST type fibre connectors, supporting a maximum fibre cable range of 2 kilometres. All models in the series are housed in a compact, highly durable all-metal case.

When used in 'standalone' mode as a discrete Media Converter device, all models in the ECR10 Series are powered by an external plugpack, which is supplied with the Converter. All ECR10 Series models have a comprehensive LED suite enabling status monitoring of the Converter. The RJ-45 and 10Base-FL ports on all models can operate in half or full duplex mode, and the RJ-45 port can be manually selected for DTE or MPR type links for connection to computer or switch type devices without utilising crossover UTP cable.





ECR10R model: 10Base-T copper to 10Base-2 Thinnet coax media conversion - 185m range
Dual Purpose ECR10 Series - use 'standalone' or install in a DCR12 Series Media Converter Chassis
ECR10 Series - media conversion applications for legacy Ethernet networks
SC and ST fibre and BNC Thinnet Coax connector supported on individual ECR10 Series models
Easy 'Slide-in, Hot Swap' installation into DCR12 Media Converter Chassis systems
Compact, rugged all-metal case





ECR10 SERIES CONVERTER SPECIFICATIONS

Implementation and Installation

Dual Purpose Implementation

Use as a 'Standalone' discrete Media Converter device or
Install as a Media Converter Module in to any DCR12 Series Media Convert Chassis

Installation in to DCR12 Chassis

Converters installed in slots 1 to 12 of any DCR12 Series Media Converter Chassis
Any mix of ECR10 Series Converters can be used as Converter Modules plus
GCR2000, FCR200, ACR and SCR Converters can also be used as Converter Modules in DCR12 Chassis
All Converter Series types are 'slide-in, Hot Swap' field/user upgradable devices

Converter Module Speed/Interfaces/Protocol Support/Maximum Range

This model

ECR10R: 10Mbps; 10Base-T RJ-45 (100m max) to 100Base-2 with BNC connector, 185m per segment



Other models in the ECR10 Series



ECR10SC: 10Mbps; 10Base-T RJ-45 (100m max) to 100Base-FL with SC connector, 2Km max range
ECR10ST: 10Mbps; 10Base-T RJ-45 (100m max) to 100Base-FL with ST connector, 2Km max range



Data Transfer Rate



10Mbps: 14,880pps



Network Interfaces



10Base-2 Ports



Transmission: Half-Duplex
10Base-T Ports
• Transmission: Full or Half-Duplex
• DTE/DCE manual configuration via selector switch ("DTE/MPR")
10Base-FL (Multimode)
• Transmission: Full or Half-Duplex
• Wavelength: 850nm
Cable Types Supported
• RG-58 coaxial cable ('Thinnet')
• UTP or STP copper: CAT3 or higher
• Multimode fibre: 62.5/125µm, 50/125µm recommended (other grades may be used)
Mechanical
• Case: compact all-metal enclosure
• Dimensions : 26.2(H) x 94(L) x 70.3(W) mm
LED Indicators
• ECR10SC/ST models: TP Link/Activity, FL Link/Activity, Power, Collision
• ECR10R model: BNC ACT, Power, TP Link/Activity, Collision
Environmental
• Power Requirement : 1A@+5VDC (from Plugpack)
• Ambient Temperature : 0° to 50°C
• Humidity : 5% to 90%
Emission and Safety Regulations
• Complies with FCC Part 15 Class A, CE Mark Approval, C-Tick
Standards Compliance
• IEEE 802.3 10Base-T specification
• IEEE 10Base-FL specification
