All stock codes associated to this product
SM2280S3G2/480G, 3143458, 740617248975
Next-generation SSD technology.

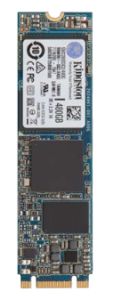

Kingston’s M.2 SATA G2 SSD is a thin and compact, caseless internal solid-state drive that combines high capacity with low power consumption to serve as a reliable caching device or primary storage for the O/S and applications. Suitable for desktop motherboards utilizing the Intel 9x chipset and popular Small Form Factor (SFF) PCs including ultrabooks, notebooks, and tablets, the M.2 2280 SATA G2 SSD easily integrates into designs with M.2 connectors and is ideal for system builders and DIY end users.
Lighter weight than a cased SSD, the M.2 SATA G2 SSD optimizes performance with advanced garbage collection, wear-leveling and TRIM support to keep performance consistent over the life of the drive. DevSleep, a recent addition to the SATA specification, is an efficient power management option that minimizes power consumption and extends and ensures data in cache is constantly flushed and hardened to NAND to enable the drive to recover in the event of an unsafe shutdown.
The complimentary Kingston SSD Manager (KSM) monitors warranty status and SSD health via the Kingston website. The M.2 SATA G2 SSD is backed by a limited five-year warranty, free technical support and legendary Kingston® reliability.
Space-saving caseless design fits ultrathin computing applicationss
Multi-purpose SFF connector replaces small mSATA and mini-PCIe slots
Capacities up to 480GB
M.2 Gen 2 SSDs are backed by a limited five-year warranty
Features/Benefits
M.2 Form Factor — Multi-purpose SFF connector replaces small mSATA and mini-PCIe slots
Single-sided design (120GB/240GB) — Integrates easily into designs with M.2 connectors; ideal for thin-and-light systems
High capacity — Available in capacities up to 480GB
Guaranteed — 5 year limited warranty and free technical support
Specifications:
Form factor: M.2 2280
Interface: SATA Rev. 3.0 (6Gb/s) – with backward compatibility to SATA Rev. 2.0
Capacities: 120GB, 240GB, 480GB
Baseline performance
Sequential Read/Write SATA Rev. 3.0
120GB - Up to 550/200MB/s
240GB - Up to 550/330MB/s
480GB - Up to 550/520MB/s
Max 4k Read/Write
120GB - up to 90,000/48,000 IOPS
240GB - up to 100,000/80,000 IOPS
480GB - up to 90,000/85,000 IOPS
Random 4k Read/Write
120GB - up to 80,000/48,000 IOPS
240GB - up to 79,000/79,000 IOPS
480GB - up to 80,000/80,000 IOPS
Endurance
120GB: 150TB and 0.56 DWPD
240GB: 300TB and 0.70 DWPD
480GB: 800TB and 0.93 DWPD
Power consumption
Max Read: 1.56W
Max Write: 3.01W
Idle: 0.06W
Storage temperature
-40°C~85°C
Operating temperature
0°C~70°C
Dimensions
80mm x 22mm x 3.5mm
Weight:
120GB - 5.99 (g)
240GB - 5.99 (g)
480GB - 7.98 (g)
Vibration operating
2.17G Peak (7–800Hz)
Vibration non-operating
20G Peak (10–2000Hz)
Life expectancy
1 million hours MTBF
