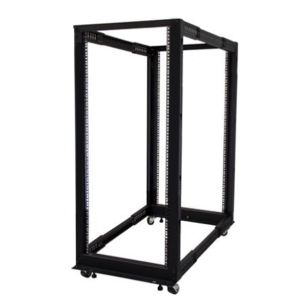

Serveredge 22RU fully assembled 4 post Adjustable Server rack With Castors

Product Description

The Serveredge CBN-4P-22RU Open Frame 4 Post Server Rack is a perfect solution for securely storing your standard rack mount equipment in a sturdy, adjustable depth open-frame rack.

With features such as easy-to-read markings for both rack units (RU) and depth and a wide range of mounting depth adjustments (22 - 40in), this server rack is designed with ease of use in mind, making it easy to adapt the rack to fit your equipment.

It has a static loading capacity of up to 550kg. It is also compliant with industry rack standards (EIA/ECA-310, IEC 60297, DIN 41494), signifying its compatibility with most rack equipment.

Includes optional accessories such as casters, leveling feet and cable management hooks. A pre-drilled base alows it to be securely fastened to the floor if needed, providing additional stability in server environments.


Casters : Yes
Fan(s) : No
Frame Type : Open Frame
Front Door Type : Open
Industry Standards : DIN 41494, EIA/ECA-310-E, IEC 60297-3-100
Key Lock : No
Rack Type : 4-Post
U Height : 22RU
Weight Capacity : 550kg
Color : Black
Enclosure Type : Steel
Dimensions (H x W x D) : 1215.3mm x 600mm x 661.8mm
Height with Casters : 1290 mm
Internal Height : 1115.8 mm
Internal Width : 465 mm
Maximum Mounting Depth : 1016 mm
Minimum Mounting Depth : 558.8 mm
Flat Pack : Yes
Shipping (Package) Weight : 31.6 kg
Product Weight : 29.6 kg

Package Includes

(2) Left Vertical Rail
(2) Right Vertical Rail
(2) Base Bracket
(8) Corner Section
(4) Center Section
(2) Top Bracket
(48) M8 Bolt
(48) M8 Washer
(1) M8 (13mm) Wrench
(1) M6 (10mm) Wrench
(1) Phillips Screwdriver
(32) M6 Cage Nut
(32) PVC Cup Washer
(32) M6 Phillips Head Screw
(12) Cable Management Hook
(12) Hook Mounting Screw
(4) Casters
(4) Leveling Feet
(16) M6 Screw
(16) M6 Flat Washer
(16) M6 Flange Nut
(4) Grounding Wires


22RU Open frame design
Adjustable mounting depth from 22 - 40in
Supports a static loading capacity of 550kg
Easy-to-read rack Unit (U) and depth adjustment markings
Casters, leveling feet and cable management hooks included
Pre-drilled holes to secure the rack directly to the floor
Easy to assemble
Flat-packed for easy shipping
Warranty : 25-years
