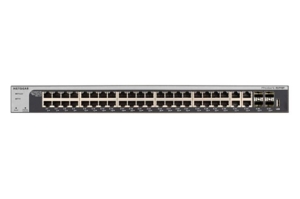

Netgear XS748T-100AJS ProSAFE 48 Port 10-Gigabit Ethernet Smart Managed Switch

Overview

As a leading provider of network equipment for SMBs, NETGEARunderstands the importance of reliable and high performance networks. With the growth of virtualization, cloud-based services and applications like VoIP, video streaming and IP surveillance, SMB networks need to extend beyond simple reliability to higher speed and performance. The 10-Gigabit Smart Managed Switch series from NETGEAR presents the right solution for this requirement; delivering unprecedented non-blocking 10-Gigabit bandwidth at an affordable cost.

he NETGEAR ProSAFEXS708T, XS716T, XS728T, and XS748T are powerful Smart Managed Switches that come with 8, 16, 24, or 44 10-Gigabit Copper ports and either 2 Shared (Combo) Copper/SFP+ ports (XS708T/XS716T) or 4 additional Dedicated SFP+ ports (XS728T/XS748T) for 10G Fiber links. The NETGEAR 10-Gigabit Smart Managed Switches are purposely designed as a cost-effective way to provide 10G connections to 10G-capable servers and NAS (Network Attached Storage) systems. They can be used at the center of a small business network or as an aggregation / access switch in a larger organization including workgroup access, connecting to a 10Gigabit NETGEAR ProSAFE Fully Managed Switch on one end and extending the 10G connections to the edge. The XS708T and XS716T are also ideal for smaller workgroups that need high bandwidth for sharing, collaborating, editing, and publishing high-density content like video or animation.

Comprehensive L2+/Layer 3 Lite Features

The ProSAFE 10G Smart Managed Switches provide comprehensive L2+/Layer 3 Lite features in order to meet current and future needs on virtualization, converged networking and mobility. Some of the main features include:

Advanced VLAN features such as Protocol-based VLAN, MAC-based (Media Access Control) VLAN and 802.1x Guest VLAN

Advanced QoS (Quality of Service) with L2/ L3/L4 awareness and 8 priority queues

IPv4 and IPv6 static routing

Private VLAN

Dynamic VLAN assignment

IGMP and MLD snooping

Advanced Security

IPv6 for management, QoS and ACL

10-Gigabit Transition with BASE-T

• 10GBASE-T, like other BASE-T technologies, uses the standard RJ-45 Ethernet jack
• It is backward compatible, auto-negotiating between higher and lower speeds thereby not forcing an all-at-once network equipment upgrade
• Cat 5 / Cat 5e are supported for Gigabit speeds up to 100 meters
• Cat 6 twisted pair copper cabling supports 10-Gigabit speeds up to 45 meters
• Cat 6a or newer Cat 7 cabling will allow for up to 100 meter 10GBASE-T connections

Designed as a Core Switch for SMB Networks

• 10G connection to 10G-capable servers and network storage
• Powerful L2+/Layer 3 Lite features make them the most cost-effective core switches for SMB and virtualization environment
• Future-proof your network with 10G bandwidth, advanced traffic management and comprehensive IPv6 support
• Static routing helps to route internal traffic for more efficient use of network resources
• IGMP and MLD snooping provide advanced multicast filtering

Act as an Aggregation Switch for Medium Sized Networks

• 10-Gigabit switches help to resolve the congestion issue between network edge and core, which is caused by the broader adoption of Gigabit-to-the-desktop
• 10-Gigabit Ethernet provides greater scalability than multiple Gigabit Ethernet links, resulting in a simplified and highly efficient network infrastructure
• Up to eight 10-Gigabit Ethernet links can be aggregated into a virtual 80Gbps connection
• 10-Gigabit Ethernet reduces cabling complexity and uses existing cabling efficiently

Performance

• Packet buffer memory: XS708T/XS716T: 2 MB ----- XS728T/XS748T: 3 MB
• Bandwidth: XS708T: 160 Gbps ----- XS716T: 320 Gbps ----- XS728T: 560 Gbps ----- XS748T: 960 Gbps
• Priority queues: 8
• Priority queuing: Weighted Round Robin (WRR) and Strict Priority
• MAC Address database size: 16K
• Multicast groups: 512
• Number of IPv4 static routes: XS708T/XS716T: 32 ----- XS728T/XS748T: 64
• Number of IPv6 static routes: XS708T/XS716T: 32 ----- XS728T/XS748T: 64
• Number of routed VLANs: XS708T/XS716T: 15 ----- XS728T/XS748T: 32
• Number of ARP cache entries: XS708T/XS716T: 738 ----- XS728T/XS748T: 1024
• Number of DHCP snooping bindings: XS708T/XS716T: 8K ----- XS728T/XS748T: 1K
• Access Control Lists (ACLs) - shared for MAC, IP and IPv6 ACLs: XS708T/XS716T: 100 ----- XS728T/XS748T: 164
• Jumbo frame support: XS708T/XS716T: Up to 9K ----- XS728T/XS748T: Up to 10K

L2 Services - VLANs

• Number of VLANs: XS708T/XS716T: 256 ----- XS728T/XS748T: 512
• IEEE 802.1Q VLAN Tagging
• IP-based VLANs
• MAC-based VLANs
• Auto-VoIP based on protocols (SIP, H323 and SCCP)
• Auto-Voice VLAN based on OUI bytes (default database and user-based OUIs) in the phone source MAC address
• Auto-Video VLAN
• Private VLAN

L2 Services - Availability

• Broadcast, multicast, unknown unicast storm control
• IEEE 802.3ad - LAGs (LACP)
• IEEE 802.3x (full duplex and flow control)
• IEEE 802.1D Spanning Tree Protocol
• IEEE 802.1w Rapid Spanning Tree Protocol
• IEEE 802.1s Multiple Spanning Tree Protocol

L2 Services - Multicast Filtering

• IGMP snooping (v1, v2, and v3)
• MLD snooping support (v1 and v2)
• IGMP snooping queries
• Block unknown multicast
• Multicast VLAN Registration (MVR): XS708T/XS716T: Yes ----- XS728T/XS748T: No

L3 Services - DHCP

• DHCP client
• DHCP snooping

L3 Services - Routing

• IPv4 static routes: XS708T/XS716T: 32 ----- XS728T/XS748T: 64
• IPv6 static routes: XS708T/XS716T: 32 ----- XS728T/XS748T: 64
• Host ARP table: XS708T/XS716T: 738 entries ----- XS728T/XS748T: 1024 entries
• ICMP Router Discovery Protocol (IRDP): XS708T/XS716T: Yes ----- XS728T/XS748T: No
• VLAN routing: XS708T/XS716T: 15 VLANs ----- XS728T/XS748T: 32 VLANs
• Number of IP VLAN interfaces: XS708T/XS716T: 15 ----- XS728T/XS748T: 32

Link Aggregation

• IEEE 802.3ad - LAGs (LACP)
• Manual Static LAG
• LAG hashing: L2 only (MAC addresses)
• 8 LAGs with max 8 members in each LAG (XS708T/XS716T)
• 12 LAGs with max 8 members in each LAG (XS728T/XS748T)

Network Monitoring and Discovery Services

• 802.1ab LLDP
• SNMP: v1, v2c, v3
• RMON group 1,2,3,9

Network Security

• IEEE 802.1X
• RADIUS accounting
• Access Control Lists (ACLs): L2 / L3 / L4
• MAC lockdown
• MAC lockdown by the number of MACs
• Control MAC # Dynamic learned entries: 600
• Control MAC # static entries: XS708T/XS716T: 20 ----- XS728T/XS748T: 600
• IEEE 802.1x RADIUS port access authentication
• Port-based security by locked MAC addresses
• Dynamic ARP inspection: XS708T/XS716T: Yes ----- XS728T/XS748T: No
• Broadcast, multicast, unknown unicast storm control
• DoS attacks prevention: XS708T/XS716T: Yes ----- XS728T/XS748T: No

Quality of Service (QoS)

• Port-based rate limiting: XS708T/XS716T: Egress only ----- XS728T/XS748T: Ingress and egress
• Port-based QoS
• Support for IPv6 fields
• DiffServ QoS
• IEEE 802.1p COS
• Destination MAC and IP
• IPv4 and IPv6 DSCP
• IPv4 and IPv6 ToS
• TCP/UDP-based
• Weighted Round Robin (WRR)
• Strict priority queue technology
• Auto-VoIP

• Auto-Voice VLAN

Management

• Password management
• Configurable management VLAN
• Admin access control via RADIUS and TACACS+
• IPv6 management
• SNTP client over UDP port 123
• SNMP v1/v2c
• SNMP v3 with multiple IP addresses
• RMON group 1,2,3,9
• Port mirroring
• Many-to-one port mirroring: XS708T/XS728T/XS748T: 8 ----- XS716T: 16
• Web browser-based graphical user interface (GUI)
• Smart Control Center (SCC) for multi-switch management
• Dual software (firmware) image
• Dual configuration file
• Cable test utility
• SSL/HTTPS Web-based access (version): XS708T/XS716T: Yes (v3) ----- XS728T/XS748T: Yes (v2)
• TLS Web-based access (version): XS708T/XS716T: Yes (v1.0) ----- XS728T/XS748T: Yes (v1.0 ~ v1.2)
• File transfers (uploads, downloads): TFTP / HTTP
• HTTP upload/download (firmware)
• Syslog (RFC 3164)
• USB port for firmware updates, configuration settings upload/backup, and system log file downloads

Specifications
