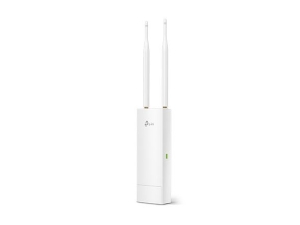

TP-Link EAP110-Outdoor 300Mbps Wireless N Outdoor Access
Point
Overview
Weatherproof Enclosure with IP65 Certification
Rated as IP65 during Ingress Protection testing, a resilient weatherproof
enclosure protects the access points against harsh outdoor condition.
- Casing made from durable ASA material
- Specialized waterproof antennas
- 6KV Lightning Protection and 15KV ESD Protection
- No Ingress of Dust
- Water Proof Enclosure
Wi-Fi That Goes the Distance
With high transmission power and two high-gain omnidirectional antennas,
EAP110-Outdoor provides stable wireless coverage at a range of up to 200 meters
in outdoor settings.
- High Transmission Power
- High-Gain Antennas
Supports Passive PoE for Easy Outdoor Set up
Do away with DC power adapters and power cords with passive Power over
Ethernet (PoE), making outdoor deployment simple and fast.
Flexible Installation Options
Secure access points to walls or poles with the mounting kits provided.
Efficient Network Administration in Centrally Managed and Standalone
Modes
Centralized Management
Manage hundreds of access points at once with the multi-function Auranet
Controller software, ideal for small and medium-sized business networks.
Standalone Mode
In smaller-scale networks, manage standalone access points with ease via our
intuitive web interface.
Features
-
Wireless N Speed up to 300Mbps
-
Simple mounting design makes easy to install on any wall or
pole
-
Passive PoE supported for convenient and affordable
installation
-
Weatherproof enclosure, 15KV ESD and 6KV lightning protection
-
Free Controller Software for easy centralized management of
hundreds of EAPs
-
Captive portal provides one convenient method of authentication for
Wi-Fi guests
-
Rate limiton per SSID to restrict the bandwidth of each
client
-
Load balance ensures large numbers of users have smooth network
experiences in high density business networks
-
Access Control restricts or only allows the client to access the
specified network segment
-
Reboot Schedule enables all the APs to reboot automatically at a
specified time
-
WPA/WPA2-enterprise, 802.1X with RADIUS secure authentication and
rogue access point detection ensure the security of WLAN
-
Multi-SSID divides multiple wireless network for different
users
-
Multiple operating modes including managed AP and standalone AP
satisfy different application conditions
Specifications
|
HARDWARE
FEATURES |
|
Interface |
Fast Ethernet (RJ-45)
Port *1Support
Passive PoE |
|
Button |
Reset |
|
Power
Supply |
24VDC / 0.6A Passive
PoE Supply |
|
Power
Consumption |
6.3
W |
|
Dimensions ( W x D x H
) |
8.2 3.7 1.7 in. (209 95
42.6 mm) |
|
Antenna
Type |
2*5dBi External Omni
waterproof |
|
Mounting |
Pole / Wall Mounting
(Kits included) |
|
Watch
Dog |
Yes |
|
|
|
WIRELESS
FEATURES |
|
Wireless
Standards |
IEEE
802.11n/g/b |
|
Frequency |
2.4GHz |
|
Signal
Rate |
11n: Up to
300Mbps(dynamic) |
|
11g: Up to
54Mbps(dynamic) |
|
11b: Up to
11Mbps(dynamic) |
|
Transmit
Power |
CE |
|
<20dBm |
|
FCC: |
|
<27dBm |
|
Wireless
Functions |
Multiple SSIDsUp
to 8 SSIDs |
|
Enable/Disable Wireless
Radio |
|
Automatic Channel
Assignment |
|
Transmit Power Control
Adjust
Transmit Power on dBm |
|
QoS(WMM) |
|
Load
Balance |
|
Rate
Limit |
|
Reboot
Schedule |
|
Wireless
Schedule |
|
Wireless Statistics
based on SSID/AP/Client |
|
Wireless
Security |
Captive Portal
Authentication |
|
Access
Control |
|
Wireless Mac Address
Filtering |
|
Wireless Isolation
Between Clients |
|
SSID to VLAN
Mapping |
|
Rogue AP
Detection |
|
802.1X
Support |
|
64/128/152-bit WEP /
WPA / WPA2-Enterprise, |
|
WPA-PSK /
WPA2-PSK |
|
|
|
MANAGEMENT |
|
Auranet Controller
Software |
Yes |
|
Email
Alerts |
Yes |
|
LED ON/OFF
Control |
Yes |
|
Management MAC Access
Control |
Yes |
|
SNMP |
Yes |
|
System Logging
Local/Remote Syslog |
Yes |
|
Telnet |
Yes |
|
Web-based
Management |
HTTP/HTTPS |
|
L3
Management |
Yes |
|
Multi-site
Management |
Yes |
|
|
|
OTHERS |
|
Certification |
CE, FCC,
RoHS |
|
Package
Contents |
300Mbps Wireless N
Outdoor Access Point, EAP110-Outdoor |
|
Passive PoE
Adapter |
|
Power
Cord |
|
Mounting
Kits |
|
Waterproof Rubber
Insert |
|
Waterproof
Antennas |
|
Installation
Guide |
|
System
Requirements |
Microsoft Windows XP,
Vista, Windows 7, Windows 8, Windows10 |
|
Environment |
Operating Temperature:
-30~65
(-22~149) |
|
Storage Temperature:
-40~70
(-40~158) |
|
Operating Humidity:
10%~90% non-condensing |
|
Storage Humidity:
5%~90%
non-condensing |
Networking
