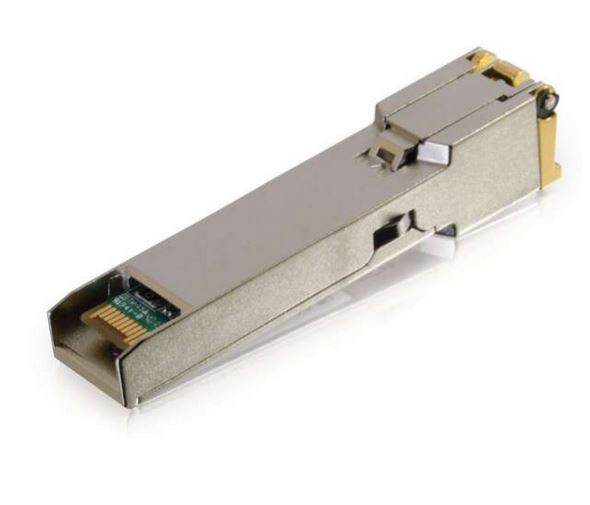

ALG-GLC-T | Alogic 1000Base-T Copper SFP (mini-GBIC) Transceiver Module - RJ45, 100m

Overview

• This SFP (mini-GBIC) transceiver module is designed for use with Cisco network equipment and is equivalent to Cisco part number GLC-T. This transceiver is built to meet or exceed the specifications of the OEM and to comply with Multi-Source Agreement (MSA) standards. This product is 100% functionally tested, and compatibility is guaranteed. The transceiver is a hot-swappable input/output device which allows a Gigabit Ethernet port to link with a copper network and is compatible with 10/100/1000BASE-T standards. OEM specific configuration data is loaded on to the EEPROM of the transceiver at the factory, allowing this transceiver to initialize and perform identically to an OEM transceiver. This transceiver may be mixed and deployed with other OEM or third party transceivers and will deliver seamless network performance. A list of compatible network equipment is available on the Specs tab of this page.
• Cisco and the Cisco logo are trademarks or registered trademarks of Cisco Systems, Inc. This product is not certified or endorsed by Cisco Systems

Features

• Hot Pluggable
• Low power consumption
• Compliant with MSA Specifications
• All-metal housing for superior EMI performance
• Cost effective solution, enables higher port densities and greater bandwidth

Specifications

• Compliant with IEEE 802.3z, IEEE802.3u, IEEE802.3ab compliant
• Compliant with SFP MSA specifications.
• Hot-pluggable SFP footprint
• Support 1000BASE-T full duplex default operating mode
• Support 10/100/1000BASE-T operation in host systems with SGMII interface
• RJ-45 connector
• Auto-sense MDI/MDIX
• Single power supply 3.3V
• RoHS Compliance
• Warranty: 1 Year
