Overview
- Boosts your existing Wi-Fi coverage to deliver fast and reliable wired and
wireless connectivity.
- External antennas for faster and more reliable Wi-Fi.
- Supports AP mode which creates a new Wi-Fi Access point.
- Easily expand wireless coverage at a push of the Range Extender button.
- Set the Power Schedule for the range extender for power-saving.
- Tether App allows easy access and management with your mobile devices
remotely.
- Works with Any Wi-Fi Router.
Compact. Strong.

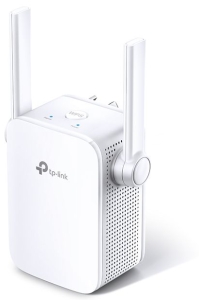

Despite its compact size, it may be hard to ignore the TL-WA855RE due to the
truly impressive way that it projects Wi-Fi access into the areas of your home
that your standard router simply cannot reach. The TL-WA855RE supports wireless
speeds of up to 300Mbps and keeps all of your favorite devices running as fast
as possible.
As Powerful As You Expect
The two external antennas with MIMO technology help set the TL-WA855RE apart
from the rest. MIMO technology enhances your network by dramatically increasing
wireless speeds and the two external antennas ensure that a stable wireless
signal reaches you where you need it most.
Effortless Network Expansion
Two Simple Taps and You are Ready to Connect
Just press the WPS button on your router, then press the Range Extender
button on TL-WA855RE to begin enjoying simple, expanded
Wi-Fi.
Connect with Confidence
The Intelligent LED indicator provides a simple, color-coded indication,
allowing you to find the perfect location.
When Your Router Fails You
The TL-WA855RE works as a repeater to save you from poor signal by expanding
your routers network coverage to the primary dead zones.
To Create a New Wi-Fi Network
Now you can turn that Ethernet port in your hotel room into your own personal
Wi-Fi Hotspot .
Functional Web UI Puts You in Control
- Wi-Fi Coverage Control Adjust settings that affect your wireless coverage
area
- Access Control Secure your network by controlling who uses it.
- Power Schedule Create a timetable to turn the network on/off as you
desire.
Easy Monitoring and Remote Control
Tether is an intuitive app that allows users to conveniently monitor the
state of your range extender, controlling its functions and altering its
settings from any compatible mobile device remotely.
Specifications
|
HARDWARE FEATURES |
|
|
Plug Type |
US |
|
Interface |
1 x 10/100M Ethernet Port (RJ45) |
|
Button |
WPS Button, Reset Button |
|
Power Consumption |
3.6W |
|
Antenna |
2 x external |
|
Dimensions ( W x D x H ) |
3.15 x 3.06 x 3.04 in. (80 x 77.8 x 77.3mm) |
|
|
|
WIRELESS FEATURES |
|
|
Wireless Standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
|
Frequency |
2.4~2.4835GHz |
|
Signal Rate |
11n: Up to 300Mbps (dynamic) |
|
11g: Up to 54Mbps (dynamic) |
|
11b: Up to 11Mbps (dynamic) |
|
Reception Sensitivity |
270M: <-68dBm@10% PER |
|
130M: <-68dBm@10% PER |
|
108M: <-68dBm@10% PER |
|
54M: <-68dBm@10% PER |
|
11M: <-68dBm@8% PER |
|
6M: <-68dBm@10% PER |
|
1M: <-68dBm@8% PER |
|
Transmit Power |
< 20 dBm (EIRP) |
|
Wireless Modes |
Range Extender/Access Point |
|
Wireless Functions |
Wireless MAC Address Filtering |
|
Domain Login Function |
|
Transmit Power Control |
|
Wireless Security |
64/128/152-bit WEP |
|
WPA-PSK / WPA2-PSK |
|
|
|
OTHERS |
|
|
Certification |
CE, RoHS, UL |
|
Package Contents |
300Mbps Wi-Fi Range Extender TL-WA855RE |
|
Quick Installation Guide |
|
System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10,
Mac OS, NetWare, UNIX or Linux. |
|
Environment |
Operating Temperature: 0C~40C (32F~104F) |
|
Storage Temperature: -40C~70C (-40F~158F) |
|
Operating Humidity: 10%~90% non-condensing |
|
Storage Humidity: 5%~90%
non-condensing |
