TP-Link EAP225-Outdoor Omada AC1200 Wireless MU-MIMO Gigabit
Indoor/Outdoor Access Point
Features
- Durable, weatherproof enclosure for outdoor Wi-Fi applications
- Up to 1200Mbps with 2×2 MIMO technology
- High transmission power and high gain antennas provide a long-range
coverage area
- Free Omada Controller software enables administrators easily manage
hundreds of EAPs
- Captive portal provides a convenient method for guest authentication
- Facebook Wi-Fi and SMS anthentication help to boost your business
- 802.3af/Passive PoE (PoE Adapter Included) compatible and simple mounting
design allow for flexible deployment and convenient installation

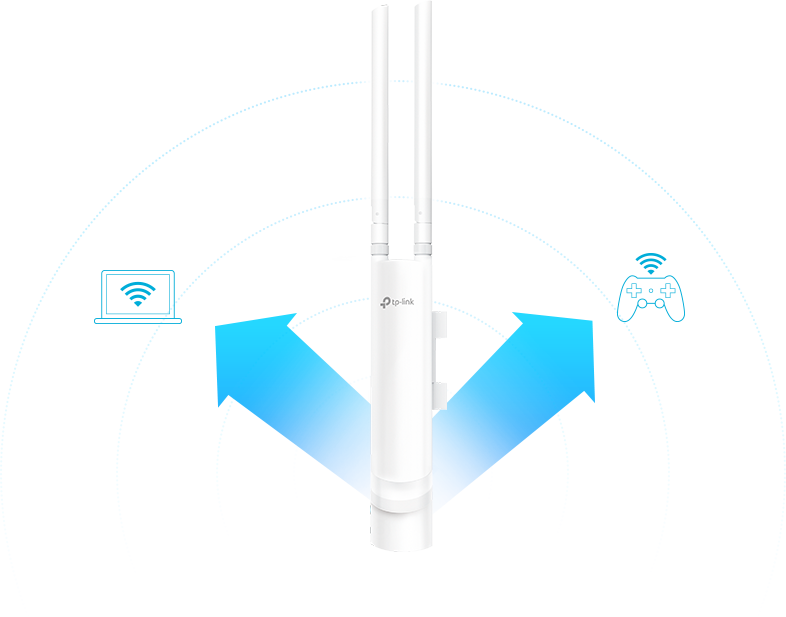

Gigabit Wi-Fi Speeds with MU-MIMO Technology
EAP225-Outdoor supports simultaneous dual band speed of up to 1200Mbps.
Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, EAP225-Outdoor can
communicate with multiple clients at the same time which making it ideal for
high density environment.
Excellent Hardware Designs
With special design of its antenna, appearance, power options and
installation methods, EAP225-Outdoor can perfectly fit for different scenarios
both indoors and outdoors.

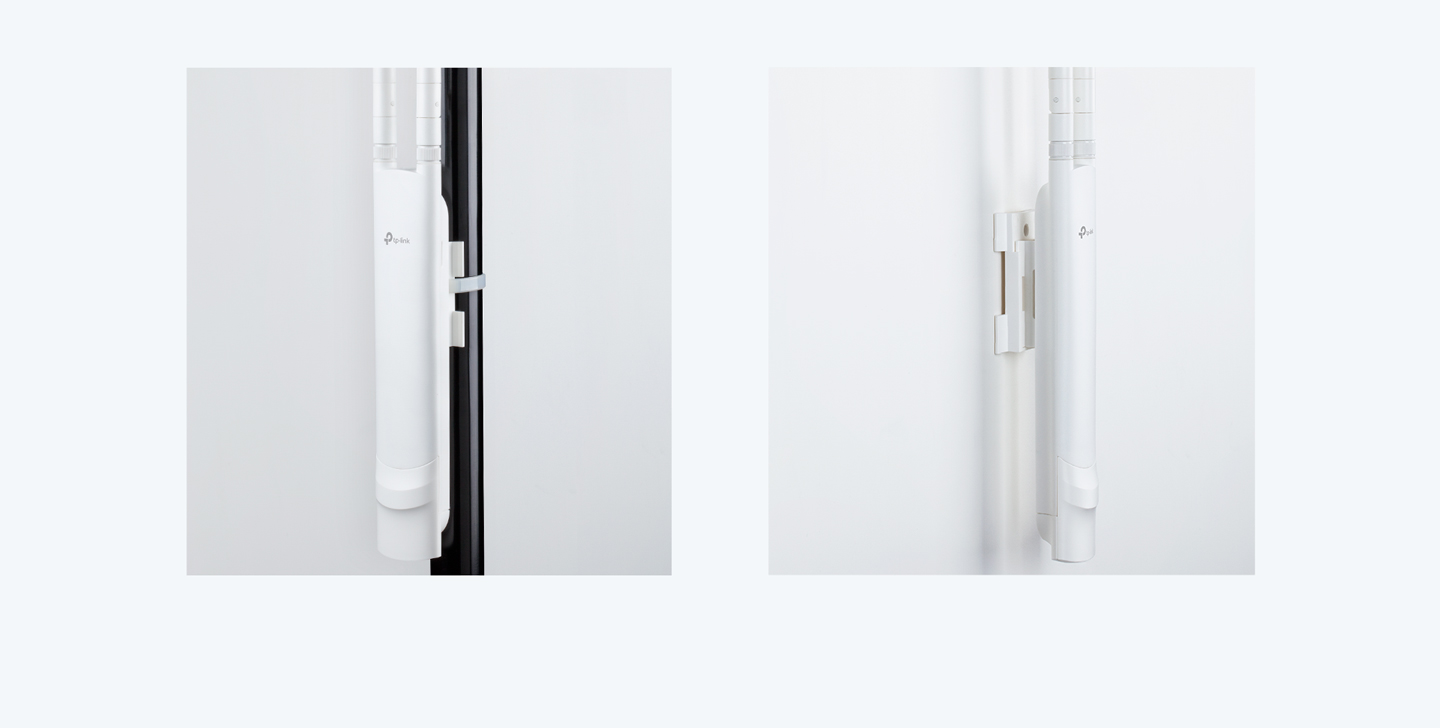

Flexible Deployment
EAP225-Outdoor can be easily installed on a wall or to a pole with the
mounting kits provided.
Wi-Fi That Goes the Distance
With high transmission power and high gain omnidirectional antennas,
EAP225-Outdoor provides stable wireless coverage at a range up to 200m+* at
2.4GHz and 300m+* at 5GHz in outdoor settings.
Specially Designed Weatherproof Enclosure for Outdoor
Environment
Rated as IP65 during Ingress Protection testing, a resilient weatherproof
enclosure protects the access points against harsh outdoor condition.
4KV Lightning Protection and 15KV ESD Protection
No Ingress of Dust
Water Proof Enclosure
Efficient Centralized Network Management
With Omada Controller software, small and medium-sized businesses can take
command of hundreds of indoor and outdoor access points all from a single
location. It’s network management as it should be - efficient and intuitive.
Specifications
|
Hardware |
|
|
Interface |
Gigabit Ethernet (RJ-45)Port*1(Support 802.3af PoE and Passive
PoE) |
|
Button |
Reset |
|
Power Supply |
802.3af PoE and 24 Passive PoE(PoE Adapter
Included) |
|
Power Consumption |
10.5W |
|
Antenna |
2.4GHz: 2 * 3dBi, 5GHz: 2 * 4dBi |
|
Dimensions ( W x D x H ) |
8.5 1.8 1.1in. (215 46 27 mm) |
|
Mounting |
Pole / Wall Mounting (Kits included) |
|
Watch Dog |
Yes |
|
|
|
Wireless |
|
|
Wireless Standards |
IEEE 802.11a/b/g/n/ac |
|
Frequency |
2.4GHz, 5GHz |
|
Signal Rate |
802.11ac: 5G:6.5 Mbps to 867Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80)
2.4G:78Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS=1 to
3) |
|
802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT
20/40) |
|
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
|
802.11b: 1, 5.5, 11Mbps |
|
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
|
Wireless Functions |
Multiple SSIDsUp to 16 SSIDs,
8 for each band |
|
Enable/Disable Wireless Radio |
|
Automatic Channel Assignment |
|
Transmit Power Control Adjust
Transmit Power on dBm |
|
QoS(WMM) |
|
MU-MIMO |
|
Airtime Fairness |
|
Beamforming |
|
Band Steering |
|
Load Balance |
|
Rate Limit |
|
Reboot Schedule |
|
Wireless Schedule |
|
Wireless Statistics based on SSID/AP/Client |
|
Wireless Security |
Captive Portal Authentication |
|
Access Control |
|
Wireless Mac Address Filtering |
|
Wireless Isolation Between Clients |
|
SSID to VLAN Mapping |
|
Rogue AP Detection |
|
802.1X Support |
|
Transmission Power |
CE:<20dBm(2.4GHz,EIRP),<23dBm(5GHz,EIRP) |
|
FCC:<30dBm(2.4GHz, EIRP),<30dBm(5GHz, EIRP) |
|
|
|
Management |
|
|
Omada Controller Software |
Yes |
|
Email Alerts |
Yes |
|
Management MAC Access Control |
Yes |
|
System Logging Local/Remote Syslog |
Yes |
|
Web-based Management |
Yes |
|
L3 Management |
Yes |
|
Multi-site Management |
Yes |
|
Management VLAN |
Yes |
|
|
|
Others |
|
|
Certification |
CEFCCRoHS |
|
Package Contents |
AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access
Point |
|
EAP225-Outdoor |
|
Power Adapter |
|
Mounting Kits |
|
Installation Guide |
|
|
|
Environment |
|
|
Operating Temperature |
-30 degree C ~70
degree C (-22 degree F~158 degree F) |
|
Storage Temperature |
-40 degree C
~70 degree C (-40degree F~158 degree F)
|
|
Operating Humidity |
10%~90% non-condensing |
|
Storage Humidity |
5%~90%
non-condensing |
