All stock codes associated to this product
WSC385012SS, WS-C3850-12S-S, 2704318, 882658660436

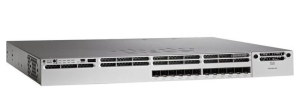

Cisco WS-C3850-12S-S Catalyst 12-Port Managed Stackable SFP Switch -
1RU, IP Base Feature Set
The digital transformation: Converged wired and wireless access and
aggregation
The promise of digital for your business is all about innovating more quickly
while reducing risk, cost, and complexity. It will be your network that forms
the foundation of your businesss transformation.
But supporting your digital organization will require your network to move
beyond just connectivity to be a platform for insights, automation, and
security.
This is the power of the Cisco Digital Network
Architecture (Cisco DNA).
Cisco DNA is a monumental shift on how to design and build networks. The
Cisco Catalyst 3850 Series, as part of the Cisco DNA
portfolio of next-generation enterprise-class stackable Ethernet and
Multigigabit Ethernet access and aggregation layer switches, securely enables
time-saving virtualization, greater automation, and valuable analytics data that
directly address your evolving business needs, including less cost to install
and operate.
The Cisco Catalyst 3850 Series provides capabilities that ideally suited to
support the convergence of wired and wireless access. The new Cisco Unified
Access Data Plane (UADP) Application-Specific
Integrated Circuit (ASIC) powers the switch and enables uniform wired-wireless
policy enforcement, application visibility, flexibility, and application
optimization. This convergence is built on the resilience of the new and
improved Cisco StackWise-480 technology.
The Cisco Catalyst 3850 Series Switches support full IEEE 802.3at Power over
Ethernet Plus (PoE+), Cisco Universal Power Over Ethernet (Cisco UPOE), modular and field-replaceable network modules, RJ-45 and
fiber-based downlink interfaces, and redundant fans and power supplies.
Specifications
| Product Description |
Cisco Catalyst 3850-12S-S - switch - 12 ports - Managed -
rack-mountable |
| Device Type |
Switch - 12 ports - L3 - Managed - stackable |
| Enclosure Type |
Rack-mountable 1U |
| Subtype |
Gigabit Ethernet |
| Ports |
12 x Gigabit SFP |
| Performance |
Switching capacity: 68 Gbps Stacking bandwidth: 480 Gbps Forwarding
performance: 68.4 Mpps |
| Capacity |
IPv4 routes: 24000 NetFlow entries: 24000 Switched virtual interfaces
(SVIs): 1000 |
| MAC Address Table Size |
32000 entries |
| Jumbo Frame Support |
9198 bytes |
| Routing Protocol |
RIP-1, RIP-2, EIGRP, RIPng |
| Remote Management Protocol |
SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, SSH, CLI |
| Features |
Auto-negotiation, ARP support, trunking, VLAN support, auto-uplink
(auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Rapid
Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol
(MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support,
Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol
(TFTP) support, Access Control List (ACL) support, Quality of Service
(QoS), RADIUS support, Virtual Route Forwarding-Lite (VRF-Lite), MLD
snooping, Dynamic ARP Inspection (DAI), STP Root Guard, Uni-Directional
Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4
support, Shaped Round Robin (SRR), Link Aggregation Control Protocol
(LACP), Remote Switch Port Analyzer (RSPAN), layer 3 load balancing,
Energy Efficient Ethernet, Cisco StackWise-480 technology, Cisco
StackPower technology, Flexible NetFlow (FNF) |
| Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE
802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE
802.1x, IEEE 802.1s |
| Power |
AC 120/230 V (50/60 Hz) |
| Power Redundancy |
Optional |
| Dimensions (WxDxH) |
44.5 cm x 45 cm x 4.45 cm |
| Weight |
7.02 kg |
| Manufacturer Warranty |
Limited lifetime warranty |
| Bundled Services |
Limited lifetime warranty |
