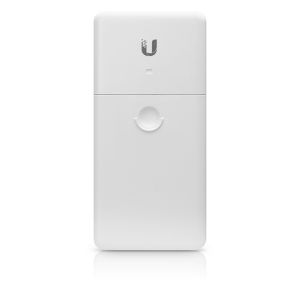

Ubiquiti N-SW NanoSwitch Outdoor 4-Port PoE Passthrough
Switch
Features
- (1) Gigabit 24V Passive PoE In Port
- (3) Gigabit 24V Passive PoE Out Ports
- Outdoor, Weather-Resistant Enclosure
Overview
Introducing the Ubiquiti Networks NanoSwitch, an unmanaged switch with four
Gigabit Ethernet ports. For its total nonblocking line rate, the NanoSwitch
supports up to 4Gbps.
Hardware Features
Featuring a durable, weatherproof form factor, the NanoSwitch is ideal for
outdoor deployment. For quick installation, the compact NanoSwitch can be easily
mounted on a pole or wall.
Power over Ethernet
The NanoSwitch has four PoE ports:
Ports |
Passive PoE |
(1) PoE In |
24V, 2-Pair |
(3) PoE Passthrough |
24V, 2-Pair |
Specifications
N-SW |
|
Dimensions |
196.4 x 93.5 x 32.4 mm (7.73 x 3.68 x 1.28") |
Weight |
271 g (9.6 oz) |
Enclosure Characteristics |
White Polycarbonate |
Total Non-Blocking Line Rate |
4 Gbps |
Typical Power Consumption |
1.5W |
Passive PoE Max. Wattage per Port |
24V, 2-Pair, 1A per Port (24W) |
Total Passive PoE Max. Wattage |
24V, 2-Pair, 1A for 3 Ports (24W) |
Power Method |
Passive 24V, 2-Pair PoE In |
Power Supply |
POE-24-24W PoE Adapter (Not Included) |
Passive PoE Voltage Range |
21.6 - 26.4V |
LEDs |
Speed/Link/Activity (All Ports) |
Networking Interfaces |
(4) 10/100/1000 Mbps RJ45 Ports |
PoE Interfaces |
Passive 24V, 2-Pair PoE In |
ESD/EMP Protection |
Air: ± 24 kV, Contact: ± 24 kV |
Operating Temperature |
-30 to 70° C (-22 to 158° F) |
Operating Humidity |
5 to 95% Noncondensing |
Shock and Vibration |
ETSI300-019-1.4 Standard |
Certifications |
CE, FCC, IC |
