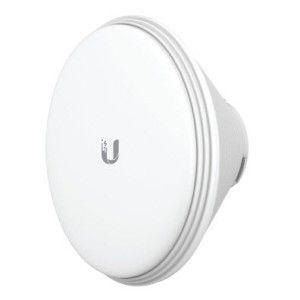

Ubiquiti HORN-5-45 (PrismAP-5-45) PRISM AP airMAX AC Beamwidth Sector Isolation Antenna Horn

Ubiquiti PrismAP-5-45 PRISM AP airMAX AC Beamwidth Sector Isolation Antenna Horn

Features

• Isolation Antenna Horns for PrismStation and IsoStation
• Designed for Increased Co-Location Performance
• Dual-Linear Polarization

Overview

Ubiquiti Networks launches a new generation of airMAX ac beamwidth isolation antennas, the PrismAP.

Modular Design

The isolation antennas are interchangeable and feature high-performance beam patterns for a range of demanding deployment needs. Combined with the PrismStation 5AC or IsoStation radio, the system gets maximum gain out of the smallest footprint.

Symmetrical horn antenna

30° and 45° versions offer breakthrough scalability options for wireless systems. Unique beam performance and great co-location characteristics allow for a higher density of sectors than traditional sector technology.

Asymmetrical horn antennas

60° and 90° versions have naturally attenuated side lobes and extremely low back radiation. They offer the best front-to-back ratio in the industry and the lowest side lobe radiation. Asymmetrical horn antennas are ideal for cluster sector installations with high co-location requirements.

Modular Design

Interchangeable Antennas

The PrismAP antennas come with precise radiation angles for specific beam shaping, ranging from 30 to 90, making them suitable for a wider range of installations.

• Designed for increased co-location performance
• Available in 30o , 45o , 60o , and 90o designs
• Designed for use with PS-5AC, IS-5AC, and IS-M5
• Single button release for ease of changing antennas
• Newly designed horn for improved beam shaping

Specifications
