Hardware Features |
|
|
Processor |
Qualcomm 560MHz CPU, MIPS 74Kc |
|
Memory |
64MB DDR2 RAM,8MB Flash |
|
Interface |
1 10/100Mbps Shielded Ethernet Port (LAN/POE) |
|
1 Reset Button |
|
Power Supply |
Passive Power over Ethernet via LAN (+4,5pins;
-7,8pins) |
|
Voltage range: 16-27VDC |
|
Dimensions |
360 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.) (No
mount) |
|
Antenna Gain |
23dBi |
|
Antenna Beamwidth |
9(Azimuth), 7(Elevation) |
|
Protection |
15KV ESD Protection |
|
6KV Lightning Protection |
|
Enclosure |
Material: Outdoor PC stabilized plastic |
|
Weatherproof: IP65 water and dust proof design |
|
|
|
Wireless Features |
|
|
Wireless Standards |
IEEE 802.11a/n |
|
Proprietary Protocol |
TDMA Mode (with Pharos MAXtream enabled) |
|
Wireless Speeds |
Up to 300Mbps (40MHz,Dynamic) |
|
Up to 144.4Mbps (20MHz,Dynamic) |
|
Up to 72.2Mbps (10MHz,Dynamic) |
|
Up to 36.1Mbps (5MHz,Dynamic) |
|
Frequency |
5.15~5.85GHz |
|
Transmit Power |
Max. 29dBm/790mW (Adjustable power by 1dBm) |
|
|
|
Software Features |
|
|
Operating Modes |
AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP
Client) |
|
Network Configuration |
WAN: Static/Dynamic/PPPoE/L2TP/PPTP |
|
LAN: Static/Dynamic/DHCP |
|
Forwarding: DMZ/ALG/UPnP/Virtual Server/Port
Trigger |
|
Security: SPI Firewall/ Ping Forbidden/VPN/DoS
Protection |
|
Access Control |
|
Static Routing |
|
Bandwidth Control |
|
IP & MAC Binding |
|
Wireless Configurations |
Pharos MAXtream TDMA Technology |
|
Selectable Channel Width: 5/10/20/40MHz |
|
Auto Channel Selection |
|
Transmit Power Control |
|
Dynamic Frequency Selection(DFS) |
|
WDS Enable/Disable |
|
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP)
Encryption, |
|
64/128/152-bit WEP Encryption |
|
SSID Broadcast Enable/Disable |
|
Multi-SSID with VLAN Tagging(AP Mode only) |
|
Distance/ACK Timeout Setting |
|
Wireless MAC Address Filter |
|
Wireless Advanced: |
|
Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP
Isolation/Short GI/Wi-Fi Multimedia |
|
Management |
Discovery and Remote Management via Pharos Control
application |
|
HTTP/HTTPS Web-based management |
|
System log |
|
SNMP Agent(v2c) |
|
Ping Watch Dog |
|
Dynamic DDNS |
|
SSH Server |
|
System Tools |
Indicators:Signal Strength/Noise/Transmit
CCQ/CPU/Memory |
|
Monitors:
Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP |
|
Spectrum Analyzer |
|
Speed Test |
|
Ping |
|
Traceroute |
|
System-Level Optimizations |
Optimized IGMP Snooping/Proxy for multicast
applications |
|
Hardware watch dog |
|
|
|
Others |
|
|
Certification |
CE, FCC, RoHS, IP65 |
|
Package Contents |

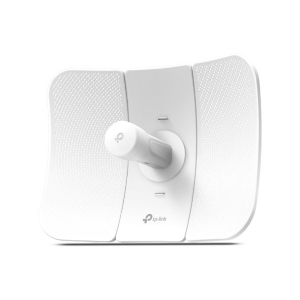

Outdoor Wireless CPE |
|
24V 0.5A Passive PoE Adapter |
|
Pole Mounting Straps |
|
AC Power Cord |
|
Installation Guide |
|
System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 10, Windows 8,
Windows 7, MAC OS, NetWare, UNIX or Linux. |
|
Note: We recommend you to use one of following Web browsers for an
improved user experience: Google Chrome, Safari, and Firefox. IE browsers
are not recommended. |
|
Environment |
|
|
Operating Temperature |
-40°C~70 °C(-40°F~158°F) |
|
Storage Temperature |
-40°C~70°C(-40°F~158°F) |
|
Operating Humidity |
10%~90% non-condensing |
|
Storage Humidity |
5%~95%
non-condensing |
