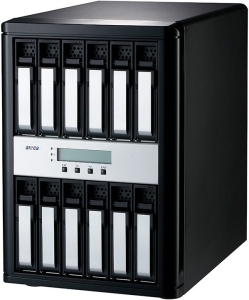

Areca 48000GB (48TB) 12-Bay Thunderbolt3 to 12Gb/s SAS RAID Storage -
TB3
ARC-8050T3 is the most complete 12Gb/s SAS 4/6(M)/6/8/12-bay Thunderbolt 3
desktop SAS/SATA RAID storage with RAID control capabilities solution for both
PC and Mac. ARC-8050T3 incorporated on-board RAID-On-Chip and ECC SDRAM memory
to deliver true high performance hardware RAID protection against drive failure.
This combination helps to provide a high performance storage device perfect for
the video editor working with Real time multi-stream HD and 4K workflows.
Thunderbolt 3 brings Thunderbolt to USB-C at speeds up to 40 Gbps, creating
one compact port that does it all – delivering the fastest, most versatile
connection to any dock, display, or data device. ARC-8050T3 is equipped with
dual Thunderbolt 3 ports for connecting to any Thunderbolt 3-enabled host and
offers an additional Thunderbolt 3 port for daisy-chaining other peripherals.
The Thunderbolt daisy-chaining allows connection of up to six devices, so
customers can connect ARC-8050T3 for massive amounts of video storage with a
single Thunderbolt connection to their host computer.
Highlights
- High performance 40Gbps Thunderbolt 3 interface
- Support simultaneous 4K in/output workflow
- Dual Thunderbolt 3 ports for daisy-chaining
- EFI supported for macOS multi-boot
- Intelligent power On/Off function for data integrity
- Delivers enterprise-class data protection and security
- Advanced configuration for video optimized performance settings
- Configuration by the Thunderbolt/LAN port/LCD
- Controller-level hardware encryption (not available for 4-Bay)
- Support BBM option for cache protection (not available for 4/6M model)
RAID Features
- ARC-8050T3-4: RAID level 0, 1, 10, 3, 5, 6, Single Disk, JBOD
- ARC-8050T3-6/6M/8/12: RAID level 0, 1, 1E, 3, 5,6, 10, 30, 50, 60, Single
Disk or JBOD
- Multiple RAID selection
- Support up to 1MB stripe size
- Online array roaming
- Online RAID level/stripe size migration
- SED (self-encrypting drives) function support
- Support global hot spare and local hot spare Instant availability and
background initialization
- Advanced configuration for smooth data streaming
- Disk scrubbing/ array verify scheduling support
- Multiple pairs SSD/HDD disk clone function
- SSD automatic monitor clone (AMC) support
- Support HDD firmware update
- Complete configuration management suite
- McRAID manager – browser-based management tool (LAN or Thunderbolt)
- Push Buttons and LCD Display panel for setup and status
- Command Line Interface (CLI) – scriptable configuration tool
- API libraries support – combine GUI with user management utility
- SNMP support for remote monitoring
- SMTP support for email notification
Product Features
| Features |
8050T3-12 |
| Form Factor |
Desktop 12-Bay |
| Disk Port |
12 x 12Gb/s SAS |
| Disk Support |
3.5"/2.5" 12Gb/s SAS/SSD
or 6Gb/s
SAS/SATA/SSD |
| RAID-on-Chip |
12G SAS dual-core controller
@ 1.2 GHz |
| Onboard Cache |
2GB DDR3-1866 |
| Expansion Support |
SFF-8644 (4-lanes) |
| Cooling Fan |
2 x 2700rpm |
| Power Supply |
400W |
Dimension
(W x H x D) |
8.1x12.2x11.4 in
(206x310x290 mm) |
| Weight |
20.8 lbs / 9.5Kg |
| Connection |
Thunderbolt 3 x2 /
Display Port x1 |
| OS Support |
Mac OS X 10.12 or higher &
Windows 8/10 or
higher
For Windows, Install Driver
First |
Performance
| (MB/Sec) |
AJA |
Iometer |
Black Magic |
| Write |
Read |
Write |
Read |
Write |
Read |
| SSD |
R0 |
2266 |
2399 |
2593 |
2692 |
1948.1 |
2089.4 |
| R5 |
2023 |
2388 |
2303 |
2678 |
1736.8 |
2130.6 |
| R6 |
2018 |
2379 |
1928 |
2662 |
1715.8 |
2083.6 |
| SAS |
R0 |
2174 |
2359 |
2781 |
2717 |
1776.4 |
2027.0 |
| R5 |
1985 |
2312 |
2330 |
2538 |
1631.2 |
1979.2 |
| R6 |
1964 |
2145 |
2316 |
2309 |
1613.9 |
1907.3 |
| SATA |
R0 |
2203 |
2296 |
2706 |
2706 |
1815.1 |
1985.4 |
| R5 |
1981 |
2306 |
2325 |
2551 |
1626.4 |
1932.8 |
| R6 |
1991 |
2152 |
2255 |
2323 |
1616.9 |
1940.5 |
Function Advantages
| Feature 1 |
Advanced Configuration |
| Provide optimized parameter to
adjust controlled firmware behavior for smooth data streaming. |
| Feature 2 |
Controller-level Hardware Encryption |
| Board-level hardware encryption
manages any kinds of drives attached to ARC-8050T3-6/6M/8/12 without
impacting the performance for higher levels of security. |
| Feature 3 |
BBM Support |
| Support a battery backup option
that protects all data in cache memory in the event of unexpected power
outage. |
| Feature 4 |
Intelligent Power On/Off Function |
| Turn ARC-8050T3 power in unison
with the host computer power status for data integrity. |
| Feature 5 |
Front Panel LCD and Buttons |
| Easy access for configuration and
status report. |
| Feature 6 |
Network Interface |
| Embedded web server for remote
control from one 10/100/1000 Ethernet (RJ-45). |
| Feature 7 |
Bootable Drive Support |
| Provides user the capability of
adding bootable drive via Thunderbolt on Apple thunderbolt-capable
machine. |
