All stock codes associated to this product
CGR1120/K9, 2572432
The CGR 1000 Series Routers are ruggedized, modular platforms on which
utilities and other industrial customers can build a highly secure, reliable,
and scalable communication infrastructure. The products are certified to meet
harsh environmental standards. They support a variety of communications
interfaces, such as Ethernet, serial, cellular, WiMAX, radio-frequency (RF)
mesh, and power line communications (PLC). The Cisco CGR 1000 Series run Cisco
IOS Software, the operating system powering millions of Cisco routers worldwide.
Grid operators gain the benefits of Cisco IOS Software's wide variety of Layer 3
services such as FlexVPN. The distributed intelligence capabilities of the CGR
1000 Series allow customers to run 3rd party applications such as application
protocol translation, distributed data processing and filtering, and application
security on the routers dire ctly leveraging Cisco IOx - an open, extensible
environment for hosting applications at the network edge. The Cisco CGR 1000

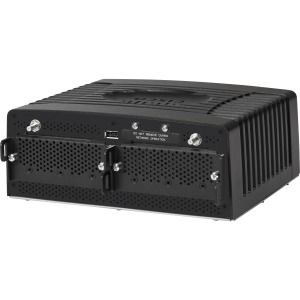

Series includes two platforms, shown in Figure 1: The Cisco 1120 Connected Grid
Router (CGR 1120), which is designed for indoor deployments; and the Cisco 1240
Connected Grid Router (CGR 1240), which is a weatherproof router in a NEMA Type
4 enclosure for outdoor deployments.Connected
Grid Field Area Network Solution and CGR 1000 SeriesUtilities all over the
world are transitioning their grids from transmission to consumption. Regulatory
mandates are driving initiatives around smart metering, grid reliability, and
the integration of solar and wind farms into the distribution grid. The
situation imposes a unique set of challenges for utilities to build a
bidirectional communications field area network (FAN) that enables these diverse
applications and also scales across millions of endpoints. The Cisco Connected
Grid FAN solution has been specifically developed to meet these challenges,
using design principles from industry-leading Cisco GridBlocks architecture.
Under the GridBlocks architecture, a typical communications network for the
distribution grid is a two-tier architecture with a neighborhood area network
(NAN) and a wide area network (WAN). The NAN provides network connectivity to
endpoints such as smart meters, street lights, and other environmental sensors.
These endpoints form a mesh network based on radio-frequency (RF) or power-line
communications (PLC) technologies. The mesh network is aggregated at a CGR 1000
mounted on poletops or in secondary distribution substations. The CGR 1000 can
also aggregate locally connected devices for distribution automation (DA). The
WAN tier provides network connectivity from the CGR 1000 to the utility's
control center over a public cellular network, a utility-owned (private) WiMAX
or WiFi network, or an Ethernet fiber network
Basic |
Brand
Name: |
Cisco |
Ethernet
Technology: |
Gigabit
Ethernet |
Form
Factor: |
DIN
Rail |
Network
Technology: |
1000Base-LH |
Number
of Total Expansion Slots: |
2 |
Product
Family: |
1000 |
Product
Type: |
Router |
Total
Number of Ports: |
8 |
General Information |
Brand
Name: |
Cisco |
Manufacturer
Part Number: |
CGR1120/K9 |
Manufacturer
Website Address: |
https://www.cisco.com/c/en_au |
Manufacturer: |
Cisco
Systems, Inc |
Product
Model: |
CGR
1120 |
Product
Name: |
CGR
1120 Router |
Product
Series: |
1000 |
Product
Type: |
Router |
I/O Expansions |
Number
of Total Expansion Slots: |
2 |
Interfaces/Ports |
Management
Port: |
Yes |
Powerline: |
No |
Total
Number of Ports: |
8 |
Network & Communication |
Ethernet
Technology: |
Gigabit
Ethernet |
Network
Technology: |
1000Base-LH |
Physical Characteristics |
Compatible
Rack Unit: |
2U |
Depth: |
198.1
mm |
Form
Factor: |
DIN
Rail |
Height: |
88.9
mm |
Weight
(Approximate): |
3.63
kg |
Width: |
228.6
mm |
