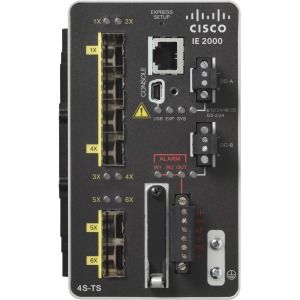

Cisco IE-2000-4S-TS-G-L Industrial Ethernet 2000 Series Switches



Overview

The CiscoIndustrial Ethernet 2000 (IE 2000) Series is a range of compact, ruggedized access switches that handle security, voice, and video traffic across industrial networks. They provide customers in industries such as automotive, oil and gas, mining, transportation, and energy with highly secure access and industry-leading convergence using Cisco Resilient Ethernet Protocol (REP).

Product Details

The Cisco IE 2000 Series are designed for low cost, low ports, and small sizes. They offer:

  • Four, eight, or 16 10/100Base-T Ethernet ports (Small Form-Factor Pluggable [SFP] downlinks on selected models); fixed configurations with a compact form factor
  • Two gigabit combo ports: SFP (100 Mbps and 1 Gbps) or RJ45 uplink
  • Dual-input DC power supply, alarm relays, DIN rail mount
  • Industrial Power over Ethernet (PoE) solution
  • Conformal coating available
  • Swappable SD flash card and mini-USB connector
  • Industrial environmental compliance and certifications
  • Industrial partner applications: Ethernet/IP and PROFINET

Primary Benefits and Features

  • Easy deployment: Zero-touch discovery using Dynamic Host Control Protocol (DHCP), express setup, and fast bootup time (60 seconds) to help in migrating to an Ethernet environment without resistance.
  • Security: 802.1x, port security, and DHCP allow dynamic port-based authentication; Secure Shell (SSHv2); SNMPv3 provides encrypted administrator traffic during Telnet and SNMP sessions; TACACS+ and RADIUS authentication facilitate centralized control and restrict unauthorized users.
  • Resiliency: Cisco REP ring protocol and PROFINET– Media Redundancy Protocol (MRP)
  • Manageability: Auto SmartPort, Web Device Manager, Telnet, HTTPS access, SNMP, CNA, and Cisco Prime Infrastructure.
  • Network Address Translation (NAT): Line-rate, hardware-enabled 1:1 static address translation designed to enable duplicate IP address usage in the Layer 2 machine node networks.
  • Layer 3 routing: IPv4 and IPv6.
  • Industrial PoE: PoE (IEEE 802.af) and PoE+ (802.3at) supported on selected models.
  • Industrial automation protocols: EtherNet/IP (CIP) and PROFINET MRP (IEC 62439-2) allow integration with existing management platforms from Rockwell, Siemens, and others.

Product Specifications

Switch Performance and Scalability

  • Maximum Forwarding Bandwidth 3.8Gbps
  • Maximum Switching Bandwidth 7.6Gbps
  • Maximum Forwarding rate: 5.66Mpps with 64-byte packets (Line-rate at all packet sizes)
  • Egress buffer: 2 MB
  • Unicast MAC addresses: 8000
  • Internet Group Management Protocol (IGMP) multicast groups: 255
  • Maximum virtual LANs (VLANs): 1005
  • IPv4 MAC security ACEs: 384 (default ternary content-addressable memory [TCAM] template)
  • Bidirectional, 128 NAT translation entries
  • IPv4 routing: 3500 routes, IPv6 routing: 1750 routes

Detailed Product Information

Figure 1 shows switch models, and Table 1 shows the Cisco IE 2000 Series configuration information. Table 2 lists the SKUs for power supplies and license upgrades. Table 3 includes IE 2000 Series product specifications. Table 4 lists software features. Table 5 includes compliance specifications. Table 6 outlines management and relevant industry standards.

Figure 1. Industrial Ethernet 2000 Series

Table 1. Industrial Ethernet 2000 Series Configurations

Product Number

Total Ports

RJ45 Ports

Combo Ports

SFP Ports

Manufacturing License

Type of possible Upgrade

IEEE 1588

L2NAT

PoE/

Conformal Coating

IE-2000-4S-TS-G-L

6

4 FE, 2GE

LAN Lite

3

Type of possible Upgrade Legend:

1: LAN Base to IP Lite Cisco IOS Software Upgrade

2: Enhanced LAN Base to IP Lite Cisco IOS Software Upgrade

3: LAN Lite to LAN Base Cisco IOS Software Upgrade

4: LAN Base to Enhanced LAN Base Cisco IOS Software Upgrade and License Upgrade

U: Upgradable to L2NAT via Enhanced Lan Base or IP Lite license

Table 2. Accessories and License Upgrade PIDs

Product Number

Description

SD-IE-1GB=

1 GB Ruggedized SD memory card (must be ordered, not included by default)

STK-RACK-DINRAIL=

19 in. DIN Rail mount kit

L-IE2000-L-B=

IE2000 LAN Lite to LAN Base e-license

L-IE2000-B-E=

IE2000 LAN Base to Enhanced LAN Base e-license

LIC-IE2000-IP-L=

IE2000 LAN Base or Enhanced LAN Base to IPLite e-license

LIC-IE2000-L-IP=

IE2000 LAN Lite to IPLite e-license

LIC-MRP-MANAGER=

MRP Ring Manager license

LIC-MRP-Client=

MRP Ring Client license

Wallmount-IE2k-04=

Wall mount kit accessory for IE2000 4-ports downlink PID

Wallmount-IE2k-08=

Wall mount kit accessory for IE2000 8-ports downlink PID

Wallmount-IE2k-16=

Wall mount kit accessory for IE2000 16-ports downlink PID

Table 3. Product Specifications

Description

Specification

Hardware

256 MB DRAM with ECC memory

IEEE 1588v2 FPGA

64 MB on-board flash memory

1GB removable SD flash memory card (optional)

Mini-USB connector

Alarm

Alarm I/O: Two alarm inputs to detect dry contact open or close; one alarm output relay

Power Consumption

4-port downlink models: 9.5-15 W

8-port downlink models: 12.5-20 W

16-port downlink models: 21-30 W

4-port PoE/PoE+ models: 21-30 W (16-port base switch) and 4 PoE/PoE+ power requirement

Connectors and Cabling

100BASE-FX MMF (2 km), -LX SMF (10 km) -ZX SMF (100 km), BX10 SMF (10 km) SFP and CWDM SFP- based ports: LC fiber connectors

10/100/1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling

Dimensions (H x W x D) Including DIN Rail

IE-2000 6 ports (SFP downlinks) chassis: 5.1H x 3.15W x 4.51D in (130mm H x 80mm W x 115mm D)

Weight

IE-2000 6 ports (SFP): 2.69 lbs (1.22 kg)

Table 4. IE 2000 Series Power Supplies

Product Number

Wattage

Rated Nominal Input Operating Range

Supported Input Voltage Operating Range

Power Output

PoE/PoE+ Support

Use Case Scenario

PWR-IE170W- PC-AC=

170W

AC 100-240V/2.3A 50-60Hz

or

DC 125-250V/2.1A

AC 90-264V

or

DC 106-300V

54VDC/3.15A

Yes

Maximum PoE/PoE+ port support in a AC or high DC environment1

PWR-IE170W- PC-DC=

170W

DC 12-54V/23A

DC 10.8-60V

54VDC/3.15A

Yes

Maximum PoE/PoE+ port support in a DC environment1

PWR-IE50W- AC=

50W

AC 100-240V/1.25A 50-60Hz

or

DC 125-250V/1.25A

AC 90-264V

or

DC 106-300V

24VDC/2.1A

No

Provides power to main system, not used for PoE in an AC or high DC environment

PWR-IE50W- AC-IEC=

50W

AC 100-240V/1.25A 50-60Hz

AC 90-264V

24VDC/2.1A

No

Provides power to main system, not used for PoE in DC environment

PWR-IE65W- PC-AC=

65W

AC100-240V/1.4A50-60Hz

or

DC 125-250V/1.0A

AC90-264V

or

DC 106-300V

54VDC/1.2A

Yes

Supportsupto4portsPoE or2ports PoE+whenusedinPoEpowerinput in anACor highDCenvironment

PWR-IE65W- PC-DC=

65W

DC 24-48VDC/4.5A

DC 18-60V

54VDC/1.2A

Yes

Supportsupto4portsPoE or2ports PoE+whenusedinPoEpowerinput in aDCenvironment

The 170W (both AC and DC) power supplies have enough power for the base unit and the PoE. Connect one power output from the 170W PSU to the main power input of the IE2000, and the other power output of the 170W PSU to the PoE power input of the IE2000.

Table 5. Cisco IE 2000 Software Features

LAN Lite License

Baseline Features

Layer 2 Switching

IEEE 802.1, 802.3, 802.3at, 802.3af standard (see Table 6), VTPv2, NTP, UDLD, CDP, LLDP, Unicast MAC filter, Resilient Ethernet Protocol (REP), Media Redundancy Protocol (MRP) Ring (IEC 62439-2)

Security

SCP, SSH, SNMPv3, TACACS+, RADIUS Server/Client, MAC Address Notification, BPDU Guard, SPAN session

Multicast

IGMPv1, v2, v3 Snooping, IGMP filtering, IGMP Querier

Management

Fast Boot, Express Setup, Web Device Manager, CNA, Cisco Prime, LMS, MIB, SmartPort, SNMP, syslog

Industrial Ethernet

EtherNet/IP, Profinet v2

LAN Base License

Additional Features

Layer 2 Switching

VTPv3, EtherChannel, Voice VLAN, Flexlink

Security

IPv4 Port-Security, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, 802.1x, Guest VLAN. MAC Authentication Bypass, 802.1x Multi-Domain Authentication, Storm Control, Trust Boundary, Access-List (ACL), IPv6 MLD snooping

Quality of Service

IPv4 Ingress Policing, Rate-Limit, Egress Queuing/Shaping, AutoQoS

Management

Port-Based DHCP, Storm Control - Unicast, Multicast, Broadcast, SPAN Sessions, RSPAN, DHCP Server, Customized TCAM/SDM Size Configuration, Embedded Event Manager (EEM)

Industrial Ethernet

IEEE 1588 PTPv2

IPv4 Routing

IPv4 static routing

IPv6 Routing

IPv6 host support, HTTP over IPv6, SNMP over IPv6

Enhanced LAN Base

Additional Features

Industrial Management

Layer 2 switching with 1:1 static Network Address Translation (NAT)

IP Lite License

Additional Features

IPv4 Routing

RIP, OSPF, EIGRP, VRF Lite, PIM for L3 multicast routing including sparse (SM) and dense (DM) mode.

IPv6 Routing

IPv6 Static routing, OSPFv3

Security

FIPS 140-2

Embedded Event Manager

EEM feature enabled with IP Lite License

Table 6. Compliance Specifications

Description

Specification

Safety Certifications

UL/CSA 60950-1
EN 60950-1
CB to IEC 60950-1 (with country deviations)
NOM to NOM-019-SCF1 (through partners and distributors)
CE Marking

Hazard Location

ANSI/ISA 12.12.01 (Class1, Div2 A-D)*
EN 60079-0, -15 ATEX Certificate (Class 1, Zone2 A-D)*

*Cabinet enclosure required

EMC Emissions and Immunity Compliance

FCC 47 CFR Part 15 Class A
EN 55022A Class A
VCCI Class A
RoHS compliance
AS/NZS CISPR 22 Class A, AS/NZS CISPR 24
CISPR11 Class A, CISPR22 Class A
ICES 003 Class A
KCC -Korea
CE Marking
C-Tick (Australia)
Russia certification
Brazil certification
IEC/EN/EN61000-4-2 (Electro Static Discharge), 15kV air/8kV contact
IEC/EN 61000-4-3 (Radiated Immunity, 10 and 20 V/m)
IEC/EN 61000-4-4 (Fast Transients - 4kV power line, 4kV data line)
IEC/EN 61000-4-5 (Surge 2 kV/1 kV)
IEC/EN 61000-4-6 (Conducted Immunity, 10 V/emf)
IEC/EN 61000-4-8 (Power Frequency Magnetic Field Immunity)
IEC/EN 61000-4-9 (Pulse Magnetic Field Immunity)
IEC/EN 61000-4-10 (Oscillatory Magnetic Field Immunity)
IEC/EN 61000-4-11 (AC power Voltage Immunity)
IEC/EN 61000-4-29 (Voltage Dips Immunity)
IEC/EN 61000-6-1 (Immunity for Light Industrial Environments)
IEC/EN 61000-6-2 (Immunity for Industrial Environments)
IEC/EN 61000-6-4 Class A
EN 61326

Shock and Vibration

IEC 60068-2-27 (Operational Shock: 30G 11ms, half sine)
IEC 60068-2-27 (Non-Operational Shock 55-70G, trapezoidal)
IEC 60068-2-6, IEC 60068-2-64, EN 61373 (Operational Vibration)
IEC 60068-2-6, IEC 60068-2-64, EN 61373 (Non-operational Vibration)

Industry Standards

UL508
CSA C22.2 No. 142
EN 61131-2 (EMC/EMI, environmental, mechanical)
Protective coating (specific models only)
Marine DnV
Substation KEMA (IEEE 1613, IEC 61850-3)
Railway EN 50155 (EMI/EMC, environmental, mechanical)
EN50121-3-2
EN50121-4
NEMA TS-2 (EMC, environmental, mechanical)
ABB Industrial IT certification
IP30
ODVA Industrial Ethernet/IP support
PROFINETv2.3 support

Corrosive Testing

ISO-12944-6
IEC-60068-2-60

Humidity

IEC 60068-2-52 (salt fog mist, test Kb) marine environments
IEC 60068 -2-3
IEC 60068-2-30
Relative humidity: 5% to 95% non-condensing

Operating Temperature

-40C to +70C (vented enclosure - 40 LFM Air Flow)
-40C to +60C (sealed enclosure 0 LFM Air Flow)
-34C to +75C (fan or blower-equipped enclosure 200 LFM Air Flow)
-40C to +85C (IEC 60068-2-2 Environmental Type Testing 16 hours)
Operational altitude: Up to 15,000 ft

Storage Temperature

-40 C to +85 C (storage temperature)
IEC 60068-2-14
Storage altitude: Up to 15,000 ft

Mean Time Between Failure (MTBF)

Mean time between failure: 374,052 hours (42.7 years)

Warranty

Five-year limited warranty on all IE-2000 HW PIDs and all IE Power Supplies defined in table 4 above. See link below for details on warranty

Table 7. Cisco Services and Support Programs

Advanced Services

Cisco Total Implementation Solutions (TIS), available directly from Cisco
Cisco Packaged TIS, available through resellers
Cisco SMARTnetand SMARTnet Onsite support, available directly from Cisco
Cisco Packaged SMARTnet support program, available through resellers
Cisco SMB Support Assistant
Project management
Site survey, configuration, and deployment
Installation, text, and cutover
Training
Major moves, adds, and changes
Design review and product staging
24-hour access to software updates
Web access to technical repositories
Telephone support through the Cisco Technical Assistance Center (TAC)
Advance replacement of hardware parts
Supplements existing staff
Helps ensure that functions meet needs
Mitigates risk
Helps enable proactive or expedited issue resolution
Lowers TCO by taking advantage of Cisco expertise and knowledge
Reduces network downtime

No additional files, specification sheets, guides or documentation found for product.

Warranty: 60 Month Manufacturers Return To Base

Full manufacturers warranty details are available at the manufacturers (Cisco) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.

Visitor Reviews

[ There are no visitor reviews for this product yet]

Review Product
Click on a thumbnail to view it below

No related products found.


L7: 7 | TM: 42 | LM: 47 | TY: 815 | T: 4499
We accept the following with No surcharge on VISA, Mastercard and Paypal!
© Techbuy Pty Ltd 2000 - 2024 All rights reserved.
All prices shown on techbuy.com.au are in $AUD and inclusive of GST. Prices and availability are subject to change without prior notice. Images displayed are accurate to the best of our knowledge and we will not be held responsible for purchases based soley on these images. All brands and names are trademarks of their respective companies. Shipping Australia wide to all metro and regional areas (Sydney, Melbourne, Brisbane, Adelaide, Perth) and Internationally. For more information, please see our usage policies.
