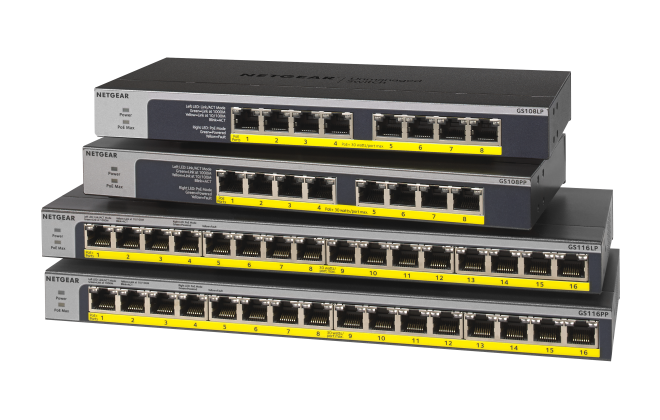

Netgear GS116LP-100AJS 16-Port Unmanaged Switch
Overview
Instant Connectivity with Reliable Performance
The NETGEAR Gigabit Unmanaged Switch series helps businesses cost-effectively
expand their network to Gigabit speeds and higher port counts. These unmanaged
Gigabit switches come in a wide range of models including desktop, wall-mount
and rackmount form factors and 5 to 24 port configurations.
They are energy efficient, built to last, and rigorously tested to provide
the reliability businesses need. 802.1p traffic prioritization and jumbo frame
support allow for seamless integration with more sophisticated networks.
High quality components and Energy Efficiency
NETGEAR switches are built with top quality components to assure a long life.
They are built to last, and rigorously tested to provide the reliability
businesses need.
NETGEAR Unmanaged Switches also support the latest Energy Efficient Ethernet
(IEEE 802.3az) standard, which reduces energy consumption when there is light
traffic on an active port or when there is no link or no activity detected. It
can further save energy when a short cable is used.
PoE+ Support (GS108LP,GS108PP,GS116LP,GS116PP)
Power-Over-Ethernet (PoE) and PoE+ options available for powering IP Security
Cameras, VoIP phones, wireless access points, and other PoE-powered devices.
These PoE+ Switches are not just flexible in terms of placement they are also
flexible in terms of PoE power. All models have a built-in PoE power selector
switch that allow for optional / interchangeable power adapters* (sold
separately) that can be used to increase (or decrease) the PoE power available
on the switch.
The flexible mounting system gives you the flexibility to place them in a
desktop environment, wall mount them, or even rack-mount (accessories included).
Specifications
Product
Number |
GS116LP |
Product
Thumbnail |
|
Speed |
10/100/1000Mbps
Gigabit Ethernet |
Datasheet
(PDF) |
GS108LP/GS108PP/GS116LP/GS116PP
Datasheet |
Number
of Ports |
16 |
PoE
ports |
16
PoE+ ports , up to 30W per port |
Total
PoE Budget |
76W |
Loop
Detection |
n/a |
Short
cable power saving |
Yes |
Energy
Efficient Ethernet Support (IEEE 802.3az) |
Yes |
Jumbo
Frame Support |
Yes |
Queue
WRR Ratio |
1:3:5:7:8:10:12:15 |
MAC
Table Size |
4K |
Packet
buffer size |
1MB |
IEEE
802.1p QoS |
Yes |
Dimensions
(WxDxH) @mm |
286
x 102 x 27 mm |
Weight
(kg) |
0.88
kg |
Max
Power Consumption |
90W |
Operating
Temperature |
0
to 40ÂșC |
MTBF
(hours) |
2,088,514
hours |
FCC
Class |
B |
