All stock codes associated to this product
TLSF1005P(UN), TL-SF1005P(UN), TLSF1005P, TL-SF1005P

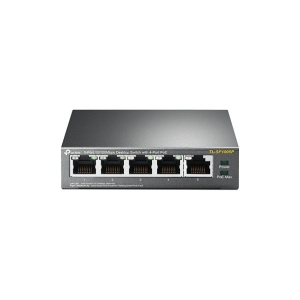

TP-LINK TL-SF1005P 5-Port 10/100Mbps Desktop Switch with
4-Port PoE
Features
- 5 10/100Mbps RJ45 ports
- With four PoE ports, transfers data and power on one single cable
- Working with IEEE 802.3af compliant PDs, expands home and office network
- Supports PoE Power up to 15.4W for each PoE port
- Supports PoE Power up to 58W for all PoE ports
- Requires no configuration and installation
Overview
What This Product Does
TL-SF1005P is a 5 10/100Mbps ports unmanaged switch that requires no
configuration and provides 4 PoE (Power over Ethernet) ports. It can
automatically detect and supply power with all IEEE 802.3af compliant Powered
Devices (PDs). In this situation, the electrical power is transmitted along with
data in one single cable allowing you to expand your network to where there are
no power lines or outlets, where you wish to fix devices such as APs, IP Cameras
or IP Phones, etc.
Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch
support Power over Ethernet (PoE) function. These PoE ports can automatically
detect and supply power with those IEEE 802.3af compliant Powered Devices
(PDs).
Overload Arrangement
TL-SF1005P has the priority function which will help protect the system when
the system power is overloaded. If all PoE PDs power consumption is >= 58W, a
priority will be arranged among the PoE ports, then the system will cut off the
power of the lowest-priority port.
Port Priority Function
Priority (port-1=port-2=port-3>port-4): This function will help to ensure
the normal operation of the system, it means Port 4 will be cut off when all
total PoE PDs power consumption exceed 58W. For an example, Port 1, 2 and 4 is
using 15.4W (maximum power for per port is 15.4W); the system power is 46.2W in
total. If there is an additional PD inserted to Port 3 with 12W, and then the
system will cut off the power of Port 4 because of the overloaded power, this
means Port 1, 2 will use 15.4W, and Port3 will use 12W, no power will be
supplied to Port 4.
Easy To Use
TL-SF1005P is easy to install and use. It requires no configuration and
installation. With desktop design, outstanding performance and quality, the
TP-Links TL-SF1005P 5-Port 10/100Mbps Desktop Switch with 4-Port PoE is an ideal
choice for expanding your home or office network.
Specifications
|
HARDWARE
FEATURES |
|
|
Interface |
5 10/100Mbps RJ45
Ports |
|
AUTO Negotiation/AUTO
MDI/MDIX |
|
Network
Media |
10BASE-T: UTP category
3, 4, 5 cable (maximum 100m) |
|
EIA/TIA-568 100 STP
(maximum 100m) |
|
100BASE-TX: UTP
category 5, 5e cable (maximum 100m) |
|
EIA/TIA-568 100 STP
(maximum 100m) |
|
Number of
Fans |
Fanless |
|
External Power
Supply |
External Power
Adapter(Output: 48VDC / 1.25A) |
|
PoE ports
(RJ45) |
Standard: 802.3 af
compliant |
|
PoE Ports: Port1-
Port4 |
|
Power Supply:
58W |
|
MAC Address
Table |
2K |
|
Switching
Capability |
1Gbps |
|
Dimensions |
3.9 x 3.9 x 1.0 in.
(99.8 x 98 x 25 mm) |
|
Transmission
Distance |
Store-And-Forward |
|
Maximum Power
Consumption |
63.51W (max. with 58w
PD connected) |
|
1.70W (max. no PD
connected) |
|
|
|
SOFTWARE
FEATURES |
|
|
Transmission
Method |
Store-And-Forward |
|
Advanced
functions |
Compatible With IEEE
802.3af Compliant PDs |
|
Priority
Function |
|
Mac Address
Auto-Learning And Auto-Aging |
|
IEEE802.3x Flow Control
For Full-Duplex Mode And Backpressure For Half-Duplex
Mode |
|
|
|
OTHERS |
|
|
Certifications |
FCC, CE,
RoHS |
|
Package
content |
TL-SF1005P, Power
Adapter, User Guide |
|
Consumption |
1.70 watts (max. no PD
connected) |
|
63.51 watts (max. with
58w PD connected) |
|
Environment |
Operating Temperature:
0°C~40°C (32°F~104°F) |
|
Storage Temperature:
-40°C~70°C(-40°F~158°F) |
|
Operating Humidity:
10%~90%RH non-condensing |
|
Storage Humidity:
5%~90%RH non-condensing |
