Icydock MB607SP-B ToughArmor Rugged Full Metal 4 Bay 2.5"

Introducing the Icy Dock ToughArmor MB607SP-B full metal quad bay 2.5" SATA 6Gbps hard drive or SSD hot swap rugged mobile rack cage for use in a single external 5.25" bay. The MB607SP-B is predicated off the incredibly popular ruggedized mobile rack MB994SP-4SB-1, while taking its general concept, but built with cost effective structure without sacrificing anything in the way of strength. For better compatibility, the original 4 pin power connector has been replaced with a more, popularly used, 15 pin SATA power connector, and reducing cable clutter. The MB607SP-B takes 4 x 2.5" SAS/SATA HDD/SSD from 5mm to 15mm height, and supports hot swap for quick and easy drive replacements. The single 40mm cooling fans has an additional 3-Mode Fan Speed control, allowing the best flexibility Turn off / low when using SSDs and high when using mechanical SATA hard drives. The MB607SP-B is constructed of rugged robust metal to survive the most demanding conditions making it a perfect storage upgrade kit for Medical & Military systems, embedded system, and industrial PC.

Industrial Construction Ready

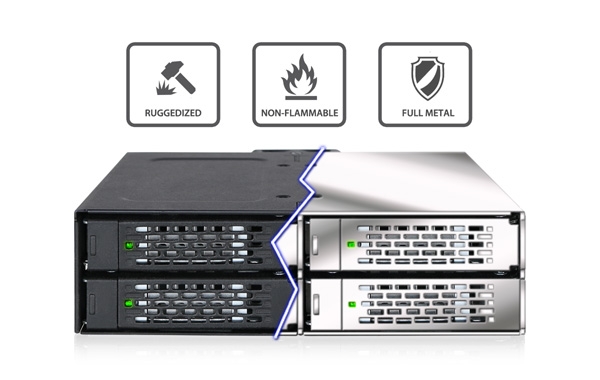

Ensuring drive protection and longevity are the foundation of a high-quality data storage system design/build. The MB607SP-B is capable of withstanding the harshest environments due to its rugged heavy duty full metal construction from the outer shell to the inner trays. The ToughArmor's full metal design is perfect for industrial and medical systems that may require a flammability rating as the full metal design is considered to already comply with most requirements.

Versatile & Durable Drive Trays

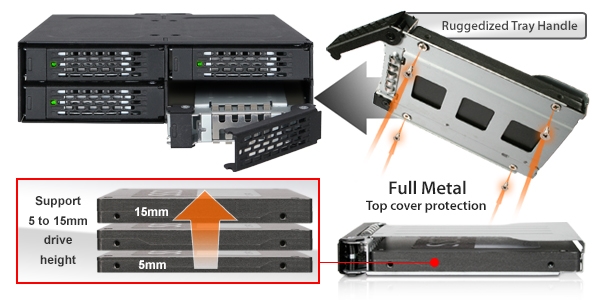

The MB607SP-B utilizes our EZ Slide Mini Trays, making drive interchangeability and maintenance completely hassle free. The trays are built using rugged full metal so that they are durable for many lifetimes, but will not weigh you down when transporting your data from system to system. The EZ Slide Mini tray is featuring a full range drive protection design; the top drive cover provides added protection while moving the drive. The trays are designed to accommodate 5mm, 7mm, 9.5mm, 12.5mm & 15mm drives giving you the ultimate universal 2.5" SAS/SATA drive support with hot-swap function.

Multifunctional Applications

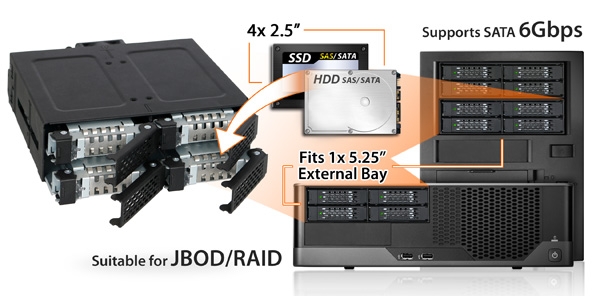

Utilizing its small form factor, the MB607SP-B is perfect for use in small form factor system or system that requires multiple drives with limited physical space. With its high density drive design and limited number of 5.25" drive bays available, it is a perfect combo to create a RAID 5 or RAID 10 systems with ease. Also, it is built to function in the most demanding environments including military and law enforcement deployment, as well as manufacturing conditions such as embedded control systems and factory automation systems. The full metal design makes it ideal for placement in tough environments.

Absolute Control of your 2.5 hard drive or SSD

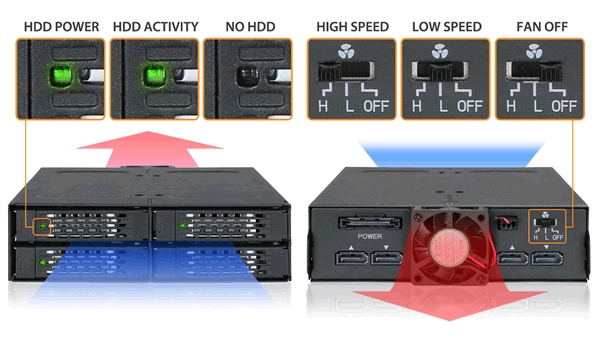

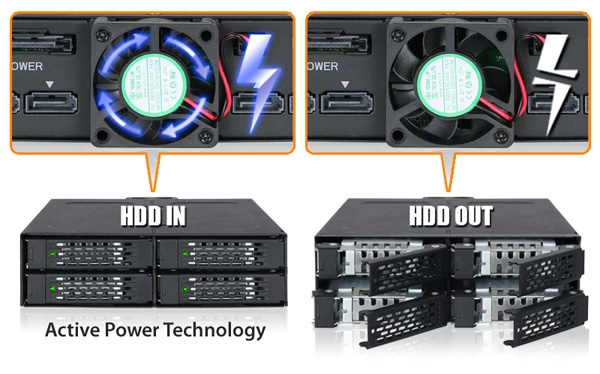

Bringing more utility to your hard drives or SSDs, LEDs are installed into the front of the mobile rack to provide individual drive status information at all times. Active Power Technology (APT) allows each LED and the cooling fan to be active only when a hard drive is inserted into the enclosure.

A single 40mm cooling fan is placed on the rear panel, providing equivalent airflow throughout the entire cage. In addition, a 3-Mode Fan Speed Control has been added to be flexible in various situations, depending on your usage - you may need the fan to be at a higher speed, or completely off for silent operation.

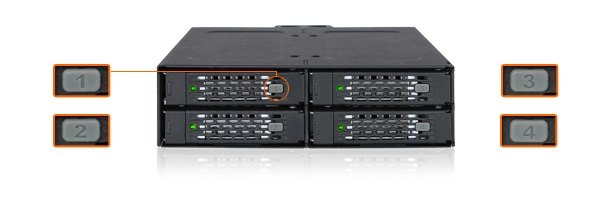

Never forget which drives belong in what bays. With our individual drive ID labels youll always know which drive tray belongs in your RAID array or which drive contains certain files. Freely unplug and rearrange them to better suit your configuration or simply remove them for a more simplified look.

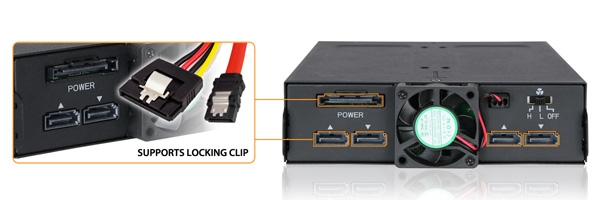

The ToughArmor MB607SP-B supports both 7-pin SATA data and 15-pin SATA power cables with locking latches so youll never need to worry about cables unintentionally disconnecting from your enclosure. Once these cables are connected, theyll lock into place and stay that way.

Product Name :

Full Metal 4 Bay 2.5" SAS/SATA SSD& HDD Backplane Cage

Model Number :

MB607SP-B

Color :

Black

Support Drive Size :

4 x 2.5" SSD / HDD

Compatible Drive Type :

SATA / Single channel SAS (SAS host required)

Number of Drives :

4

Max Drive Height :

15mm

Drive Bay :

1 x external 5.25" drive bay

Host Interface :

4 x SATA 7pin

Power Input :

1 x 15 pin SATA power connector

Transfer Rate :

SATA 3.0 up to 6Gbps / SAS 3.0 up to 12Gbps

Support HDD Capacity :

No Limitation

Drive Cooling :

1 x 40mm fan

RAID Function :

N/A

Structure / Material :

Full Metal

Support Hot-Swap :

Yes

Drive Security :

N/A

Product Dimension (L x W x H) :

142.4 x 146 x 41.3 mm

Product Net Weight :

847g

Package Gross Weight :

918.9g

RAID Status LED Indicator :

None

Drive Activity LED Indication :

Drive power: solid green; HDD access: flashing green

Package contents :

1 - Device, 1 - user manual, 1 - ID Plug, 28 - screw

SATA Connector Insertion Rate :

10,000

Humidity :

5%~65% RH

Operating Temperature :

0C to 60C (32F to 140F)

Storage Temperature :

-35C to 70C (-31F to 158F)

Compliance :

CE, RoHS, REACH

Warranty :

3 years
