Netstor NA611TB3-2V6E Thunderbolt 3 NVMe SSD
Storage
Overview
Small yet with Stunning-Fast Extreme Speed
While the portable storage is small in size and ultra light in weight, the
storage does exactly provide the lightning-fast 40 Gbps transfer speeds via
Thunderbolt 3 supporting all sorts of data archiving and real-time editing.
Palm-Sized Storage for 4K
Even though created handy and mini in size, the pocket-sized storage is ready
for the 4K video editing and post-production workflows with utmost performance
and finest protection.
Always Double Capacity
Besides the ultra transfer speeds and the extraordinary performances to the
host computer over Thunderbolt 3, the dual M.2 SSD slots inside the storage
device do truly provide the opportunity to bear two M.2 NVMe SSD memory modules
to have the empowered double capacity at all times. No matter how big the
capacity of M.2 SSD you use, dual M.2 SSDs are ensured always bringing you the
doubled storage capacity.
Designed with Latest M.2 NVMe Technology
The NA611TB3 can be equipped with two M.2 PCIe NVMe flash storage modules
with each module having PCIe 3.0 x2 lanes up to 16Gbps throughput. Moreover, the
dual M.2 modules can further choose to be configured for software array as RAID
0 in favor of performance or RAID 1 in support of security.
Astonishing Data Transfer Rates and Achievement
The Netstor Thunderbolt 3 external NVMe SSD flash storage supports all
high-performance PCIe 3.0 M.2 SSD controllers in the industry allowing NA611TB3
to surpass USB 3.1 Gen2 flash storage by up to x3 times speed.
AJA Test Performance - RAID 0 Mode

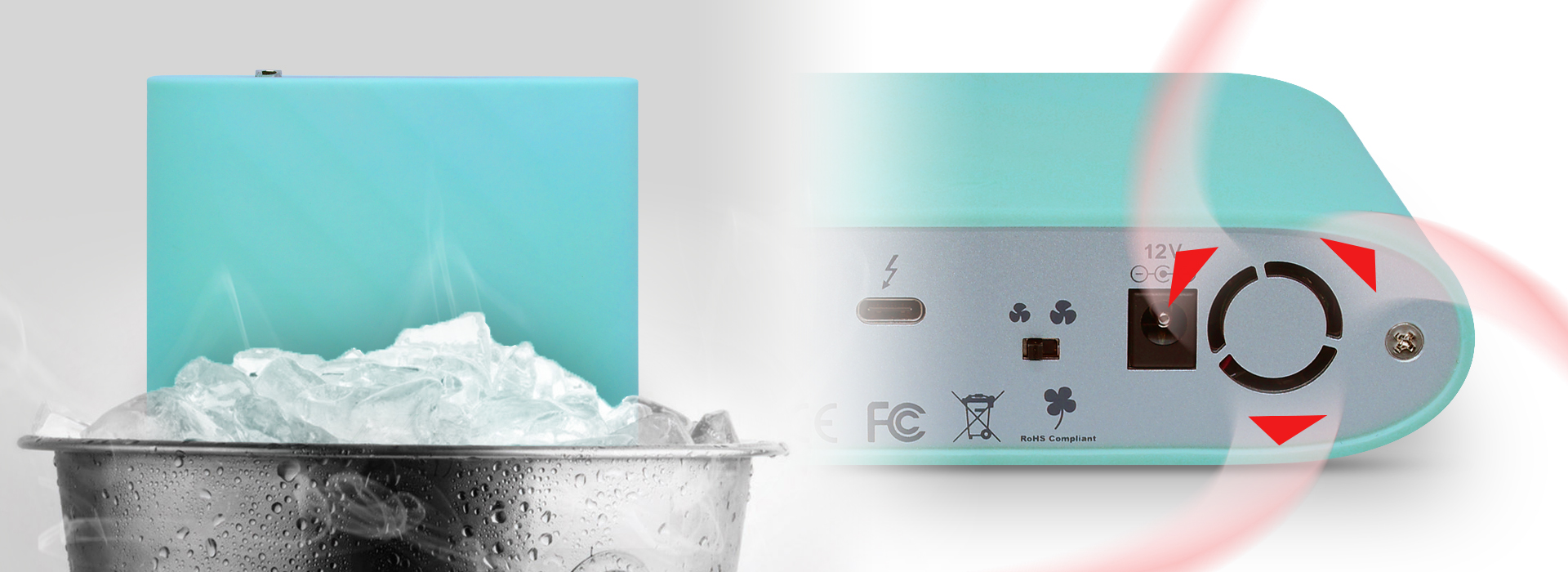

Active Cooling Makes your NVMe Cool
The variable-speed fan cooling system of NA611TB3 effectively cools down your
NVMe SSDs and brings M.2 NVMe to the optimum efficiency.
Tiny in Size yet Featuring Dual Thunderbolt 3 Ports
Despite the fact small-scale in size, the Netstor storage device is still
designed with two Thunderbolt 3 (USB-C) ports to allow the end-users to make a
daisy-chain easily of up to five additional Thunderbolt peripheral devices and a
monitor for varied working applications.
Specifications
|
Host
Interface |
Thunderboltâ„¢3
(USB-C) |
|
Data
Transfer Rate |
40Gbps |
|
NVMe
Interface |
Two
M.2 x4 M key (Two PCIe 3.0 x2 electrical) |
|
NVMe
Type |
Supports
2242 / 2260 / 2280 / 22110 PCIe SSD |
|
Capacity |
NVMe
SSD sold separately |
|
RAID
Mode |
JBOD
(RAID 0 or 1 can be provided by OS) |
|
Configurations |
A
Single volume (single M.2 NVMe SSD is installed as JBOD
mode) |
|
|
B
Dual volumes (two M.2 NVMe SSDs are installed as JBOD
mode) |
|
|
C
Single volume (two M.2 NVMe SSDs are installed configured as RAID 0 by
O.S.) |
|
|
D
Single volume (two M.2 NVMe SSDs are installed configured as RAID 1 by
O.S.) |
|
Boot
Disk |
Yes |
|
|
macOS
10.13+ |
|
|
Windows
10 |
|
LED
Display for Enclosure |
Standby
- orange |
|
|
Power
on - blue |
|
|
NVMe
Access - flashing white |
|
Dimension |
125(D)
x 150(W) x 35(H) mm |
|
|
4.92(D)
x 5.9(W) x 1.37(H) inch |
|
Material |
Aluminum
housing |
|
Power
Supply |
Power
Adapter: |
|
|
AC
Input: 100–240V, 50-60Hz |
|
|
DC
Output:+12V/5A, 60W |
|
Cooling |
One
20 x 20 x 10 mm Cooling Fan |
|
O.S.
support |
macOS
High Sierra 10.13 above |
|
|
Windows
8 / 10 |
|
Weight |
0.6
Kgs / 1.32 lbs (w/o Adapter) |
|
Operating
Temperature |
0
to 40°C (32 to 104°F) |
|
Storage
Temperature |
-10
to 50°C (14 to 122°F) |
|
Relative
Humidity |
20
to 80% (non-condensing) |
|
Scalability |
Thunderbolt
3 port for daisy-chain up to 6 devices |
|
Limited
Warranty |
2
Years |
|
Package
Content |
Enclosure
x 1 |
|
|
60W
Power Adapter x 1 |
|
|
Thunderbolt3-40Gbps
cable x 1 (0.5 meter) |
|
|
Power
Cord x 1 |
|
Accessories |
|
|
Model
No. |
|
|
NA611TB3 |
Thunderbolt3
to M.2 NVMe Storage, Dual Thunderbolt3 Ports, with 60W Power Adapter, One
0.5 meter Thunderbolt3
cable |
