Netstor NA211TB3 Thunderbolt 3 to 3 PCIe Expansion
Enclosure
The Expansion that Brings the Most Possibility
Creativity is not limited by your host computer. Since truly understanding
professional video editors' application needs in the production field which
generally requires multiple pro video/audio cards for varied development, this
day three PCIe slots have been created for the proficient video producers and
audio developers to utilize up to 3 specialty PCIe cards for their creative
works. Now pro cards such as Red Rocket-X (graphics accelerator), Blackmagic
DeckLink (video capture) and Avid Pro Tools (audio) can all work together in the
same box for both studio and mobile on-site editing purposes to efficiently and
smoothly accomplish your workflows.

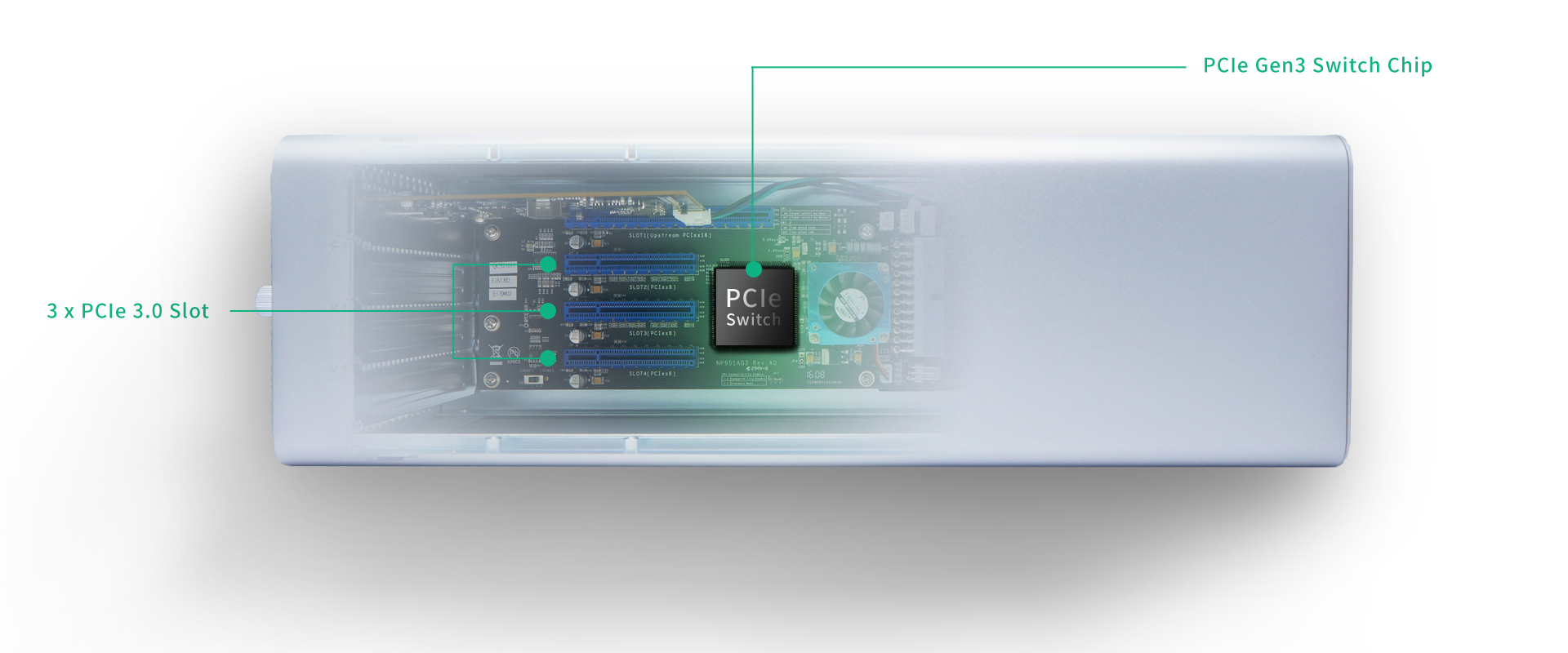

Integrated High Speed PCIe Gen3 Switch
An ultra fast, high tech PCIe Gen3 switch has been thoughtfully built on the
PCIe slots backplane to allow each PCIe 3.0 slot within expansion chassis to be
kept at highest, full performance and achievements.
40Gbps Thunderbolt 3 Host Interface
Designed to feature Thunderboltâ„¢ 3 interface (40Gb/s) capable of providing
PCIe bandwidth up to 2750 MB/s, 2x times Thunderbolt 2, for diverse professional
PCIe cards like video transcoding and video capture that mainly require higher
throughput of data rate to the host computer.

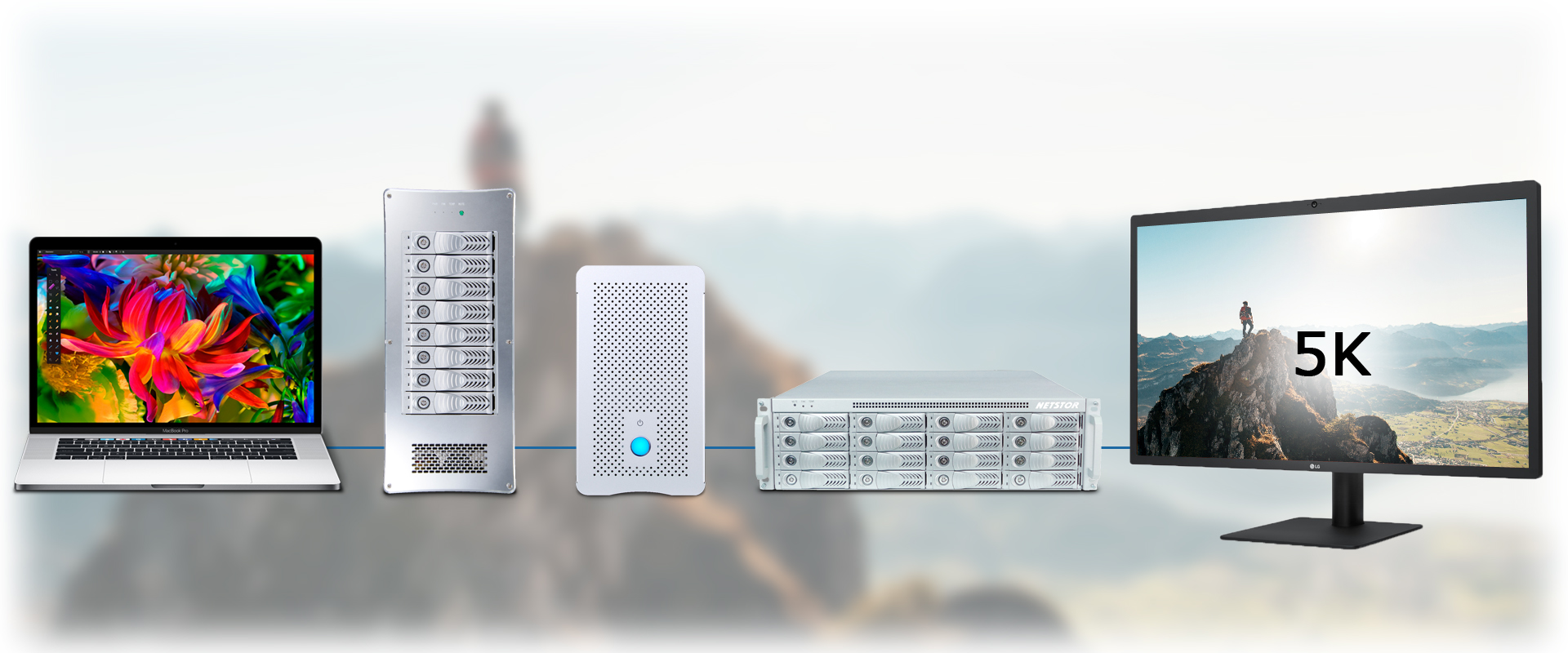

Dual Thunderbolt 3 Ports - The USB C That Does It All
By the two Thunderboltâ„¢ 3 (USB-C) ports, users can have the first port to
computer while the second port to daisy-chain of up to five additional
Thunderbolt peripheral devices with two 4K displays or one 5K display being
positioned at the very end of the chain. USB 3.1 Gen 2 (10Gbps) is also
supported: connecting one USB device to the second port for application is
available.

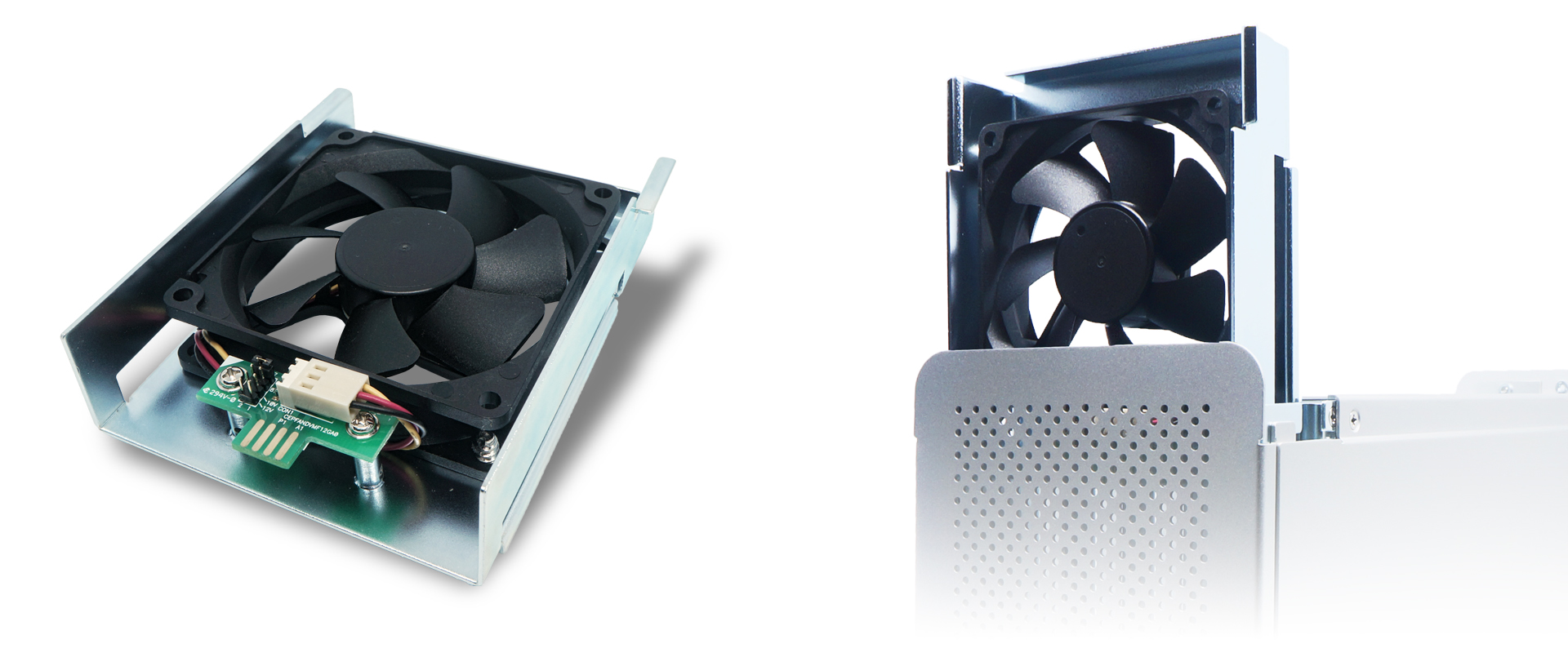

Convenient Adjustable Fan Speeds
Carrying one front hot-swappable 8x8 cm ultra quiet cooling fan module, which
provides most excellent airflow ventilation ever and ensures PCIe cards within
can run long term without any high temp concern. Additionally, the fan speed of
the cooling fan can be adjusted manually according to PCIe cards implementation
situation within enclosure.

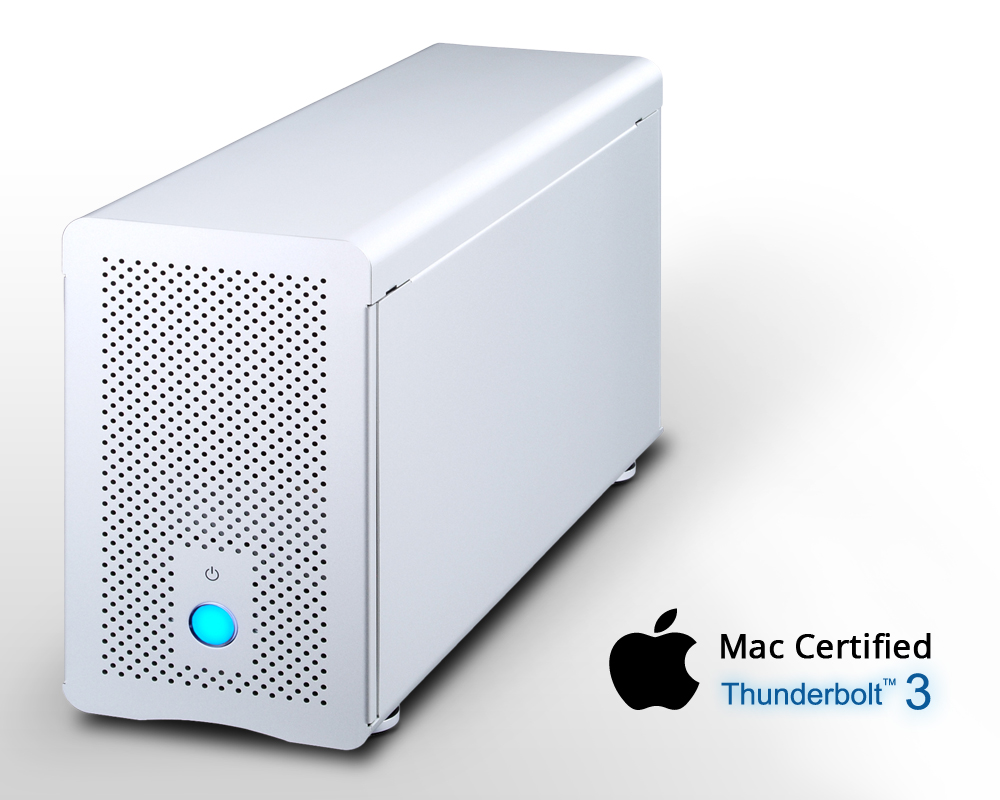

Mac certified. Works with All Series of Thunderbolt Mac
The Thunderboltâ„¢ 3 NA211TB3 PCIe expansion chassis has passed Apple's strict
certification testing process and is Mac certified, which supports and works
with all series of Thunderbolt Mac.

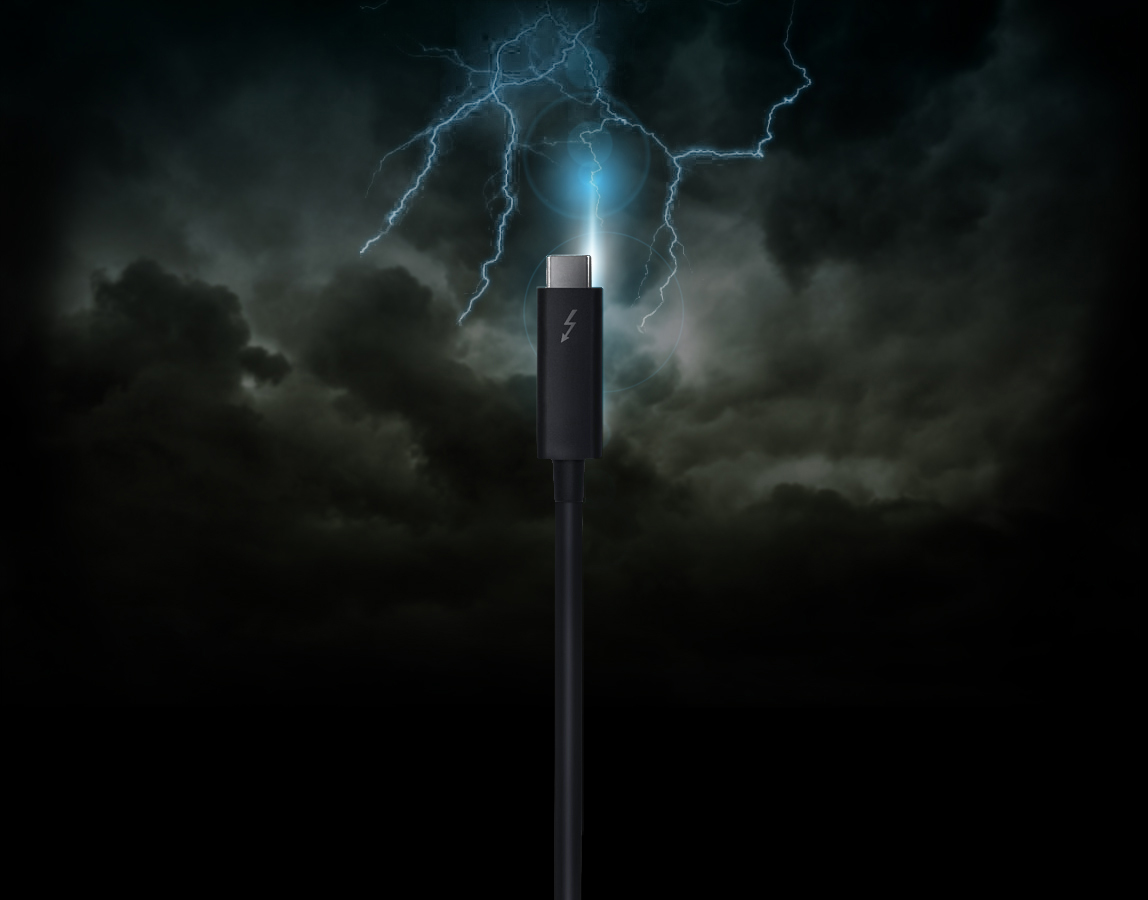

Containing 2-Meter Thunderbolt 3 (40Gb/s) Active Cable
The included long two-meter Thunderboltâ„¢ 3, 40Gbps, active cable allows users
to freely arrange chassis on desktop, permitting a more flexible way to apply
Thunderbolt 3 device to the working environment.
The Ultra Low Noise PSU
The built-in PSU's greatest acoustical performance with sound level under 22
dBA will surely meet video editors' requirement in the field.

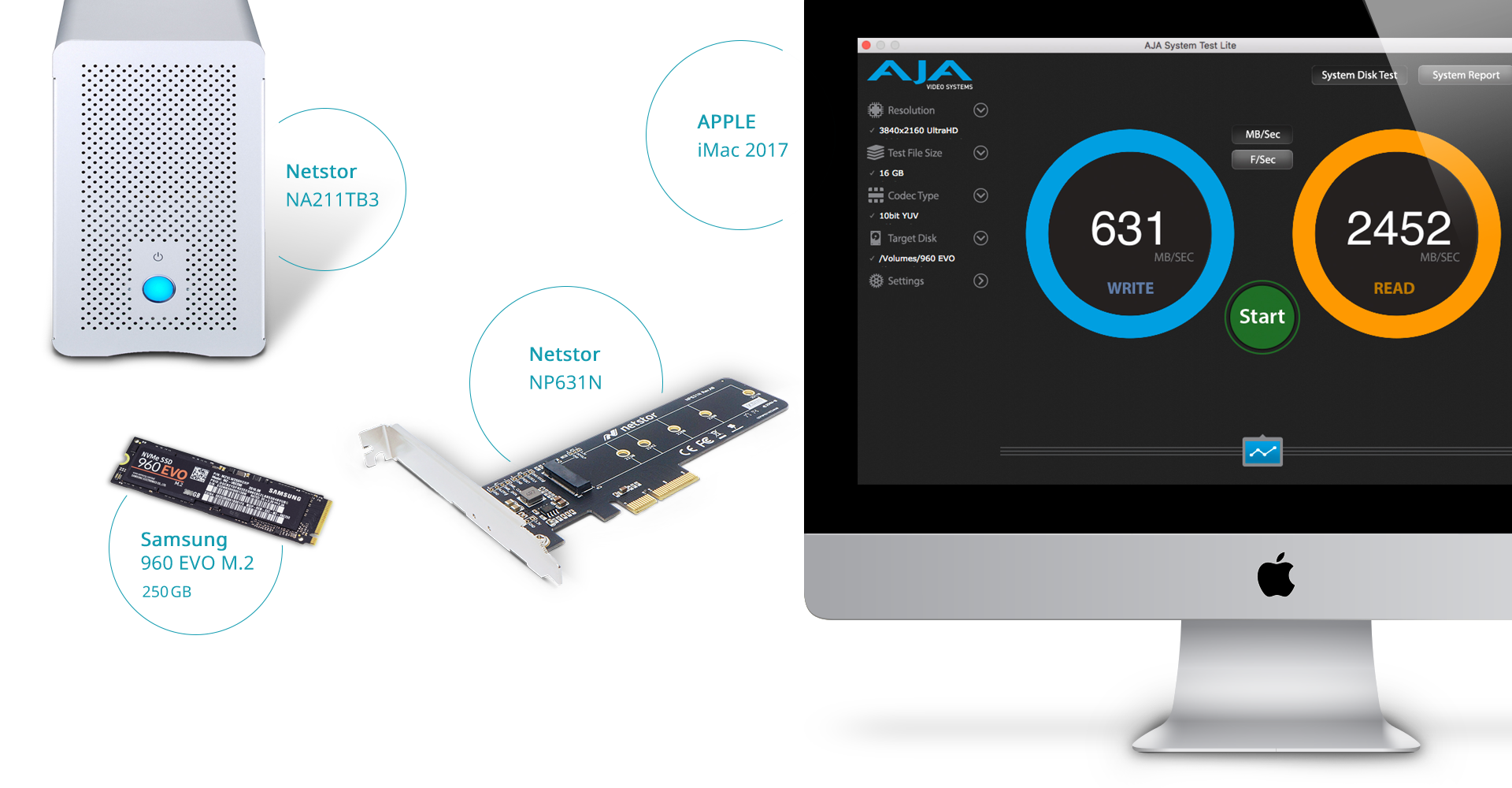

Adding NVMe Flash Storage to Mac is now Possible !
For those who still worry the insufficient native flash storage capacity
inside your Mac, now High Sierra you can use any brand, any capacity M.2 NVMe
PCIe SSD1 with Netstor NP631N adapter2 in NA211TB3 chassis to work with any
Thunderbolt 3 Mac.
Specifications
|
Host
Interface |
Thunderboltâ„¢3
(Dual Port USB-C for Daisy Chain) |
|
Data
Transfer Rate |
40Gbps |
|
No.
of PCIe Slots |
Three
PCIe 3.0 x8 (Two slots are available for PCIe x16
card) |
|
Thunderbolt
Expansion |
Up
to Six Thunderbolt devices |
|
LED
Display for Enclosure |
Power
On |
|
Material |
Aluminum
housing with solid metal structure |
|
Power
Supply |
Single
300W PSU (High-Efficiency & Low Noise) |
|
|
Input:
90-230 VAC/50-60 HZ |
|
|
Output:
+5V and +12V |
|
|
(With
two PCIe 6+2 pin & one 4 Pin auxiliary power
cable) |
|
Dimension |
371(D)
x 110(W) x 200(H) mm |
|
|
14.6
(D) x 4.3 (W) x 7.87 (H) inch |
|
Cooling |
One
Hot-Swappable 80 x80 x20 mm Cooling Fan |
|
System
Support |
MacBook
Pro(2016) with a Thunderbolt 3 port |
|
|
Note:
Thunderbolt 2 Mac will request a Thunderbolt 3(USB-C) to Thunderbolt 2
adapter from Apple. |
|
O.S.
Support |
Mac
OS X 10.12.3 above |
|
PCIe
card Driver Request |
Third-party
PCIe card should support Mac OS with Thunderbolt aware's
driver |
|
PCIe
card Size Available |
Full
length (315mm), full height (120mm) PCIe cards |
|
Operating
Temperature |
0
to 40°C (32 to 104°F) |
|
Storage
Temperature |
-10
to 50°C (14 to 122°F) |
|
Relative
Humidity |
20
to 80% (non-condensing) |
|
Package
Content |
Enclosure
x 1 |
|
|
Thunderbolt3-40Gbps
cable x 1 (2 meter) |
|
|
Carry
Bag x 1 |
|
|
Power
Cord x 1 |
|
Accessories |
|
|
Model
No. |
Description |
|
NA211TB3 |
Thunderbolt3
to PCIe Expansion Chassis, Supporting up to Three(3) full-length and
full-height PCIe cards, with bulit-in 300W single power supply and
providing extra 6+2 pin PCIe power cable, One Thunderbolt3, 2 meter
cable. |
