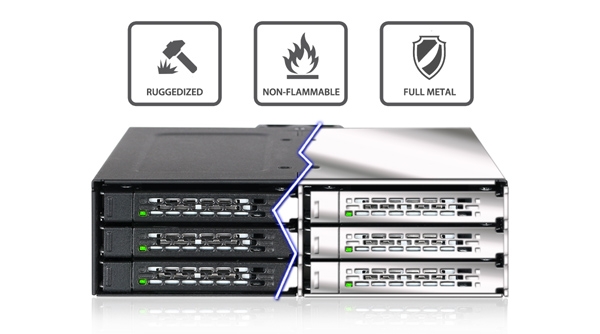

Versatile &Durable Drive Trays
|
|
 |
|
The MB608SP-B utilizes our EZ
Slide Micro trays, making drive interchangeability and maintenance
completely hassle free. The trays are built using rugged full metal so
that they are durable for many lifetimes, but will not weigh you down
when transporting your data from system to system. The EZ Slide Micro
tray is featuring a full range drive protection design; the top drive
cover provides added protection while moving the drive. The trays are
designed to accommodate 5mm, 7mm &9.5mm drives giving you the
ultimate universal 2.5" SAS/SATA drive support with hot-swap function.
|
|
|
Multifunctional Applications
|
|
 |
|
Utilizing its small form
factor, the ToughArmor MB608SP-B is perfect for use in small form factor
system or system that requires multiple drives with limited physical
space. With its high density drive design and limited number of 5.25"
drive bays available, it is a perfect combo to create a RAID 6 or RAID
10 systems with ease. Also, it is built to function in the most
demanding environments including military and law enforcement
deployment, as well as manufacturing conditions such as embedded control
systems and factory automation systems. The full metal design makes it
ideal for placement in tough environments.
|
|
|
|
Absolute Control of your 2.5 hard drive or SSD
|
|
 |
|
Bringing more utility to your
hard drives or SSDs, LEDs are installed into the front of the mobile
rack to provide individual drive status information at all times. Active
Power Technology (APT) allows each LED and the cooling fan to be active
only when a hard drive is inserted into the enclosure.
|
|
 |
|
A high performance 40mm
cooling fan is placed directly at the center of the rear panel,
providing equivalent airflow throughout the entire cage. In addition, a
3-Mode Fan Speed Control has been added to be flexible in various
situations, depending on your usage - you may need the fan to be at a
higher speed, or completely off for silent operation.
|
 |
|

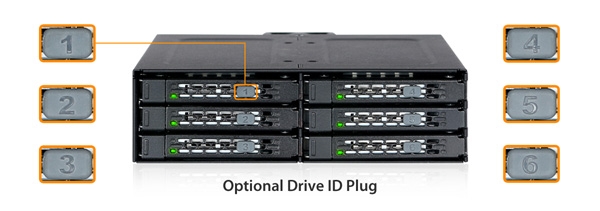

Never forget which drives
belong in what bays. With our individual drive ID labels youll always
know which drive tray belongs in your RAID array or which drive contains
certain files. Freely unplug and rearrange them to better suit your
configuration or simply remove them for a more simplified look.
|
 |
|
The ToughArmor MB608SP-B
supports both 7-pin SATA data and 15-pin SATA power cables with locking
latches so youll never need to worry about cables unintentionally
disconnecting from your enclosure. Once these cables are connected,
theyll lock into place and stay that way.
|
|
|
Make ToughArmor On-The-GO!
With MB991U3-1SB
|
To access your data outside of your system or in a remote location, the ToughArmor MB991U3-1SB
is the way to go about. The drive tray slot of MB991U3-1SB is
compatible with a variety of ToughArmor drive trays including the
ToughArmor MB607, MB991, MB992, MB994, MB996 and MB998 series. This
allows existing ToughArmor users to access their internal drive
externally without opening up the case. It is a great tool for an
individual drive diagnostic test. If you need to do a safe data erase or
just simply expending system storage capacity, just remove the tray
from the internal ToughArmor unit and insert it in the MB991U3-1SB to
perform individual tasks externally with USB 3.0 interface. Best of all,
the MB991U3-1SB uses USB bus-powered and it does not require a power
adapter to operate. Simply connect the USB cable to any system and you
are ready to go.
|
|
|
|
|
|
Drive Tray
|
|
 |
|
EZ Slide Micro Tray MB992TRAY-B DriveTray for ToughArmor MB608, MB992, MB996 Series
|
|
|
|
|
|
|
|
Key Features
|
|
|
*
|
Full steel construction
commercially designed for medical &military systems, media servers,
and HPC (high performance computer) systems, embedded systems and IPCs,
approved &used by Tier 1 companies.
|
|
*
|
Perfect for rugged applications and complies to flammability requirements 2.5" SAS/SATA drive support with hot-swap function.
|
|
*
|
Fits 6 x 5mm to 9.5mm 2.5 SAS/SATA HDD or SSD in a single external 5.25 bay for I/O intensive data storage applications.
|
|
*
|
Support SATA 3.0 6Gbps or SAS 3.0 12Gbps (single channel)
|
|
*
|
Anti-Vibration Technology (AVT) - creates a safe environment for hard drives or SSDs
|
|
*
|
Active Power Technology (APT) - individual LED &cooling fan only powers up if there is a drive installed in the bay
|
|
*
|
Eagle-hook lock system keeps drives secured within the enclosure
|
|
*
|
Removable EZ Slide Micro tray system for easy maintenance
|
|
*
|
Full metal tray construction - adds extra drive protection.
|
|
*
|
Heavy duty full steel construction throughout the device.
|
|
*
|
Status LED on Front for Each Drive.
|
|
*
|
40mm cooling fans with external fan controller for high, low and off setting
|
|
*
|
Small Form Factor Perfect for IPC, Servers, and Small Form Factor Cases.
|
|
*
|
Supports SATA power and SATA data cables with locking latch design.
|
|
*
|
Industry leading 3 year warranty with exceptional customer support. | | |
