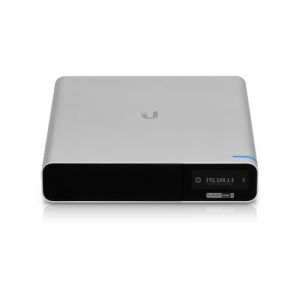

Ubiquiti UCK-G2-Plus Hybrid Cloud Key Technology with
Integrated Application Server
Features
- Fully Integrated, Stand-Alone UniFi Controller with 1TB HDD
- Multi-Site Network Management and IP Video Surveillance
- Remote, Private Cloud Access to UniFi SDN and UniFi Protect
Overview
Designed for convenient monitoring and complete management of your camera
surveillance system, the UniFi Protect Controller allows you to set up,
configure, and monitor your UniFi cameras using a graphical user interface. As
one of the built-in apps on the Cloud Key Gen2 Plus, there are no separate
software, licensing, hosting, or support fees.
UniFi Controller with Hybrid Cloud
The UniFi Cloud Key Gen2 Plus is an integrated hardware controller and
self-contained application server designed to monitor and manage your UniFi
network devices and camera surveillance system. It features an eight-core
processor with 3 GB RAM, a 1 TB SATA HDD for video storage, and 32 GB eMMC flash
storage, and utilizes the latest version of the UniFi Controller with hybrid
cloud technology.
Breakthrough Efficiency
The UniFi Cloud Key Gen2 Plus is fully capable of configuring and managing
dozens of UniFi devices on your network, and offers an ultra-low energy PoE
replacement for a dedicated server or computer, with virtually no digital
footprint.
Hybrid Cloud Technology
The Ubiquiti hybrid cloud configuration provides a secure, private SSO
(Single Sign-On) to access all of your UniFi deployments from anywhere in the
world. With the Ubiquiti hybrid cloud, a third-party hosted cloud service is not
required, so all of your personal data and network information remains local and
securethe way it should be.
Incredible, Agile Scalability
Add, provision, configure, monitor, and manage all of your UniFi devices,
whether in one or hundreds of private networksall from a centralized control
panel.
Easily accessible through one of our downloadable apps or a standard web
browser (Chrome recommended), the UniFi Cloud Key Gen2 Plus is a powerful
solution for managing your UniFi networks across the campus or across the
globe.
Easy Setup
Using a standard web browser or Bluetooth setup from your mobile device,
deployment of your UniFi Protect controller can be set up and configured in a
matter of minutes.
Feature-Packed User Interface
Accessible from a web browser, the UniFi Protect was designed to be
easy-to-use yet packed with advanced features. The UniFi Protect interface is
incredibly intuitive and loaded with powerful features such as statistical
reporting, multiple live views options, versatile camera settings, advanced
analytics, and customizable event recordings.
Plug and Play Installation
Automatic camera detection in UniFi Protect makes it easy to install and
deploy cameras. All of the camera settings are integrated into the software. You
can also configure, reboot, or upgrade the firmware on any camera from within
the UniFi Protect interface.
Additional Live Views
Playlists can be created with a configurable live camera feed rotation.
Define the cameras you want included in the playlist and how long you want them
to appear on the screen before moving on to the next live feed.
Cost-Effective Solution
Shattering conventional industry thinking, UniFi Protect provides powerful IP
surveillance software without the huge up-front costs or monthly subscription
fees.
Mobile App
The downloadable app provides free remote cloud access to your UniFi Protect
system. It also allows you to securely access video recordings that are
privately stored on the Cloud Key Gen2 Plus and not a third-party server or
internet cloud.
Live View
View up to 20 live camera feeds in a single window. With basic and advanced
template options available, choose the live view template thats right for
you.
Time Lapse
The new Time Lapse feature allows you to scroll through video events and
recordings quickly and efficiently. Now you can sift through hundreds of hours
of video in just minutes.
Events
Video recordings are stored privately on the Cloud Key Gen2 Plus. With a
built-in 1 TB HDD, you can retain hundreds of recording hours without
third-party storage or online digital footprints.
UniFi SDN Controller
Designed for convenient management, the UniFi SDN Controller software allows
admins to configure and monitor UniFi devices using a graphical user interface.
There are no separate software, licensing, hosting, or support fees.
Multi-Site Management
A UniFi Cloud Key Gen2 Plus installed at each deployment site provides an
always-on, private UniFi cloud service. Every site is accessible through its
assigned secure SSO. Each Cloud Key Gen2 Plus is independent with its own
network monitoring, configuration, maps, statistics, and admin accounts.
Improved User Experience
Redesigned to be more intuitive and easier to navigate, the new UI raises the
bar for enterprise network management efficiency. Important network details are
logically organized for a simplified, yet powerful, interface.
Network Overview
A comprehensive overview of your network health is readily available in the
new dashboard. Monitor your networks vitals and make onthefly adjustments as
needed.
Detailed Analytics
Use the configurable reporting and analytics to monitor large user groups and
expedite troubleshooting.
LAN/WLAN Groups
The UniFi SDN Controller can manage flexible configurations of large
deployments. Create multiple LAN and WLAN groups and assign them to the
respective UniFi devices.
Wi-Fi Management
Use the UniFi SDN Controller to provision UniFi APs, configure wireless
networks, map out networks, and quickly manage system traffic. Powerful Wi-Fi
management features include:
- RF monitoring and device mapping
- Detailed RF performance analysis
- Band steering support
- Guest portal/hotspot support
Router and Switch Management
Use the UniFi Controller to provision UniFi Security Gateways and Switches.
Configure a variety of features:
- WAN/LAN/VLAN configuration
- Operation mode (switching, mirroring, or aggregate) per port
- PoE setting per port (device dependent)
- Jumbo frame and flow control services
- Monitor and analyze performance of each port
Dashboard
UniFi provides a visual representation of your networks status and delivers
basic information about each network segment.
SDN Mobile App
The downloadable app provides free remote cloud access to your UniFi
Controller. It also allows you to analyze and manage the health and traffic of
your UniFi network from anywhere in the world using your single-signon Ubiquiti
account.
Statistics
The Statistics tab provides a visual representation of the network clients
and network traffic carried by your managed UniFi Switches and APs.
Rackmount Accessory
Now you can mount the Cloud Key Gen2 Plus in a standard 19" rack, along with
other UniFi switches and network devices. Sold separately, the optional
Rackmount Accessory, model CKG2-RM, features a docking bay for the Cloud Key
Gen2 Plus and an alternate Ethernet port1 for power and network
connectivity.
The Docking Bay is also designed to house the Cloud Key Gen2 model, UCK-G2.
Simply press the Locking Tab on the back of the Rackmount Accessory and adjust
the size of the Docking Bay.
Specifications
Dimensions |
131.16
x 27.10 x 134.20 mm (5.16 x 1.07 x 5.28") |
Weight |
582
g (1.28 lb) |
Enclosure |
Anodized
Aluminum |
Management
Interface |
UniFi
Management Portal; UniFi SDN; UniFi Protect |
Hard
Drive Capacity |
1
TB 2.5" SATA HDD (user-upgradeable) |
Device
Capacity |
|
UniFi
Protect Mode |
Up
to 20 UniFi Cameras |
UniFi
SDN + UniFi Protect |
Up
to 15 UniFi Cameras and 50 UniFi Devices |
Processor |
APQ8053
8 Core with 3 GB RAM |
eMMC
Memory |
32
GB |
Networking
Interface |
(1)
10/100/1000 Ethernet Port |
Buttons |
(1)
Power; (1) Reset |
LEDs |
(1)
Power, White/Blue |
Power
Method |
Standard
802.3af PoE; Quick Charge 2.0/3.0 Power Adapter (9VDC,
2A) |
Supported
Voltage Range |
Standard
802.3af PoE or 9VDC, 2A |
Max.
Power Consumption |
12.95W
(PoE); USB-C Power |
Operating
Temperature |
0
to 35° C (32 to 104° F) |
Operating
Humidity |
20
to 80% Noncondensing |
Certifications |
CE,
FCC, IC |
