All stock codes associated to this product
PE0212GATG, PE0212G-AT-G, KVAPE0212G, KVA-PE0212G, 4719264647215
Aten PE0212G-AT-G Basic Power Distribution Unit
Series
Features
- Basic PDU
- Space saving -1U rack mount design
- IEC or NEMA outlet models
- Overcurrent Protection
- Aluminum material
Typical Applications
- Servers
- Network Devices
- Telecom Equipment
Overview

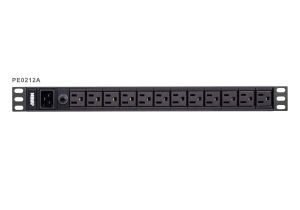

The PE0212 series Basic PDU contains 12 AC outlets and is available in IEC or
NEMA socket configurations. The PE0212 series Basic PDU features a space-saving
1U design that allows it to be mounted vertically on the outside of a rack,
resulting in a more effi cient use of space in the server room, while providing
12 AC outlets.
Package Contents
- 1x Basic PDU
- 1x Power cord
- 1x User Instructions
Diagram
Specifications
|
Function |
PE0212G |
|
Electrical |
|
|
Nominal
Input Voltage |
100-240
VAC |
|
Maximum
Input Current |
16A
(Max) |
|
|
|
|
Input
Frequency |
50-60
Hz |
|
Input
Connection |
IEC-320
C20 |
|
|
|
|
Input
Power |
3840VA(Max) |
|
|
|
|
Outlet
Type |
(12)
IEC 320 C13 |
|
Maximum
Output Current (Outlet) |
10A
(Max) |
|
|
|
|
Maximum
Output Current (Bank) |
16A
(Max) |
|
|
|
|
Maximum
Output Current (Total) |
16A
(Max) |
|
|
|
|
OPD(Overcurrent
Protection Device) |
Yes |
|
Physical
Properties |
|
|
Dimensions
(L x W x H) |
48.80
x 4.40 x 4.50 cm |
|
|
(19.21
x 1.73 x 1.77 in.) |
|
Weight |
0.88
kg ( 1.95 lb ) |
|
Power
Cord Length |
10ft(3×1.5mm2) |
|
Environmental |
|
|
Temperature
(Operating / Storage) |
0
– 40℃/ -20 – 60℃ |
|
|
*When
the environmental temperature comes close 40 degrees, it is recommended to
lower the load to 60% to comply to the safety
regulations. |
|
Elevation
(Operating / Storage) |
3000m |
|
Compliance |
|
|
EMC
Verification |
CE
Class A |
|
Safety
Verification |
CE,
LVD |
|
Note |
For
some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
