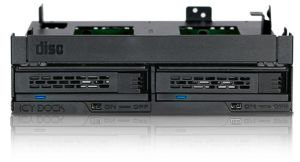

The ICY DOCK ExpressCage MB732SPO-B lets you use your 5.25 bay
to its fullest extent by installing two hot-swappable 2.5 HDD / SSD
bays, and a CD-ROM/DVD/Blu-Ray disc reader bay. To maximize
compatibility, the disc reader bay can be used with either a slim
(12.7mm) or ultra-slim (9.5mm) disc reader using an included
multi-purpose spacer. Additionally, the innovative tray design expands
compatibility to all 2.5 HDDs and SSDs, up to 15mm in height, and uses
built-in pegs in place of screws for easy 100% tool-less installation.
Full-metal chassis with plenty of ventilation holes keeps your drives
safe from environmental damage and overheating issues.
|
|
 |
The ExpressCage MB732SPO-B is perfect in systems needing to
maximize their space efficiency; Small-form factor systems, Home-Theater
PCs with media collections on drives and discs, and photo/video editors
working with traditionally stored files and files stored on DVDs and
Blu-Rays.
|
|
|

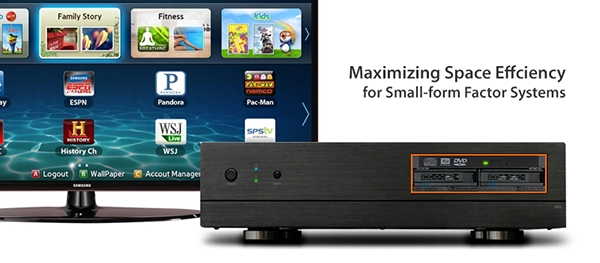

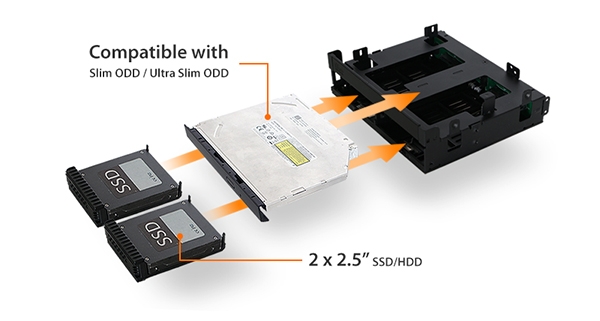

Maximize Space Efficiency
|
|
 |
|

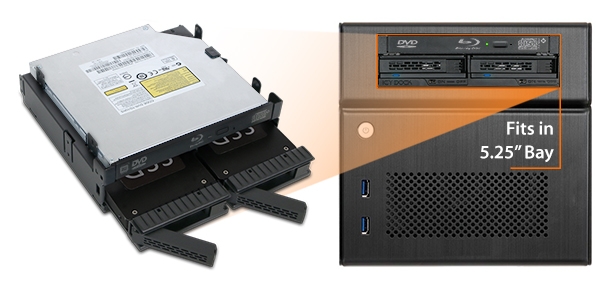

The ExpressCage MB732SPO-B is
designed to unlock the full potential of the external 5.25 bay. By
combining a slim/ultra-slim CD-ROM/DVD/Blu-Ray disc reader bay and 2x
hot-swappable 2.5 HDD/SSD bays, the MB732SPO-B provides a dense unified
solution for managing optical disks, hard drives, and SSDs for
small-form-factor and home-theater PC (HTPC) systems, without
compromising storage or expandability.
|
|

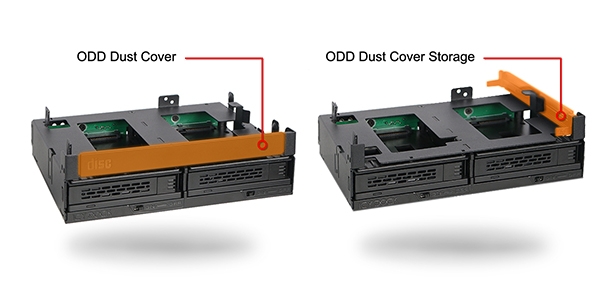

Multifunctional Detachable ODD Faceplate
|
 |
The MB732SPO-B comes with a multifunctional detachable
faceplate for the CD-ROM/DVD/Blu-Ray ODD slot. When no disc reader is
installed, or when using an ultra-slim (9.5mm) disc reader, the
faceplate becomes a protective front dust cover, protecting your
internal components from overheating due to accumulated dust blocking
ventilation holes. The faceplate can be easily hidden and stored inside
of the enclosure with a specially design housing spot for the faceplate.
|
 |
|

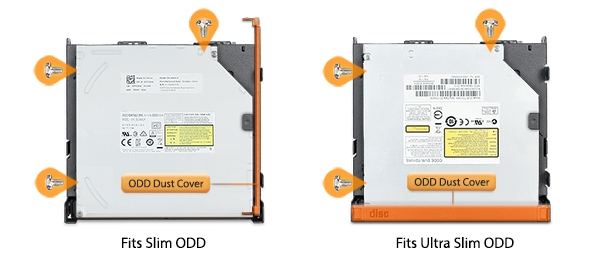

To install a slim ODD (12.7mm
height), simply insert your slim ODD into the MB732SPO-B and secure the
device with included screws. The Multifunctional ODD bay faceplate can
also be used as a spacer when a thinner ultra slim ODD (9.5mm height) is
installed.
|
|
|
Packed with Features
|
|
 |

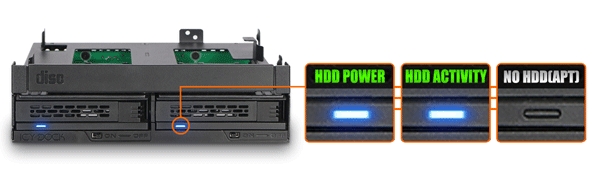

Each of MB732SPO-Bs drive bays has its own
indicator light to notify you of any drive activity, preventing drive
damage by alerting you when your drive is in use. A blue LED is easily
visible, without casting too much light and straining your eyes.
|
 |

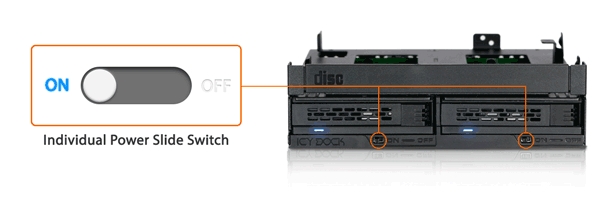

Each drive bay has its own power switch,
saving power when not in use. Because you dont have to physically
remove the drive, using the power switch protects the internal
connectors from wear and erosion of their protective coatings.
|
|
 |

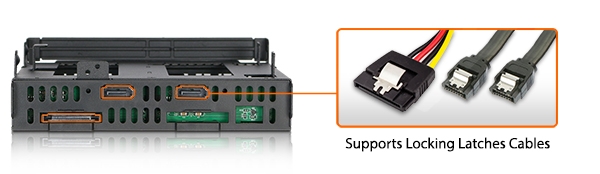

The ExpressCage MB732SPO-B supports both
7-pin SATA and 15-pin SATA power cables with locking latches, so youll
never need to worry about cables unintentionally disconnecting from your
enclosure. Once these cables are connected, theyll lock into place and
stay that way.
|
|
|

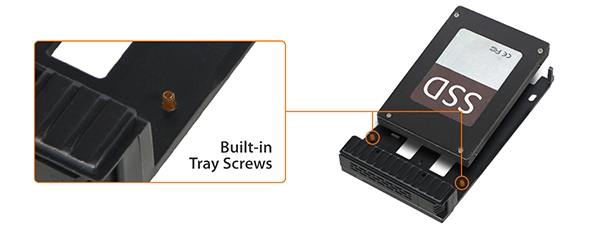

Innovative ExpressTray Design
|
|
 |
The ExpressCage MB732SPO-B uses an
intelligently engineered tray design that requires no tools or screws.
Built-in pegs insert into the screw holes of your drive to provide a
secure hold in seconds, saving you time over traditional trays needing a
screwdriver.
|
 |

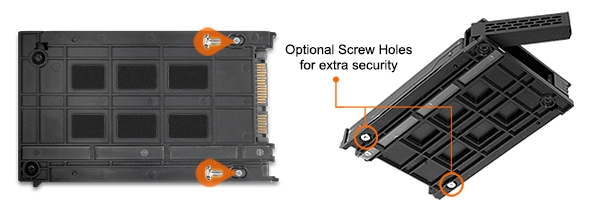

When additional security is required, such as
when transporting drives outside of the enclosure, the included screws
can be used to further secure drives and prevent them from falling out
in transit.
|
|
|
Designed for Security and Protection
|
|
 |

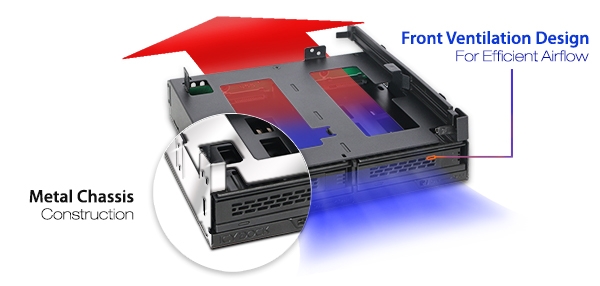

The ExpressCage MB732SPO-B was designed with
drive security and protection in mind. A full-metal frame protects
against external hazards and ensures the enclosure lasts through
thousands of insertion/removal cycles. Ventilation holes are amply
placed throughout the enclosure, to maximize air cooling and ensure that
your drives stay cool even under heavy load.
|
|
 |

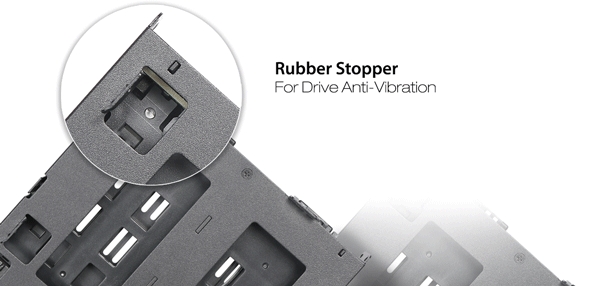

Anti-vibration
rubber stoppers are placed inside the enclosure, which holds the drive
firmly in place and protects drive from vibration damage. Anti-vibration
is particularly important for mechanical hard drive that put out
excessive vibration and noise, which is greatly reduced the MB732SPO-B.
|
|
|
Drive Tray
|
|
 |
|
ExpressTray MB732TP-B for ExpressCage MB732SPO-B Drive Tray
|
|
|
|
|
Key Features
|
|
Rugged metal housing with durable ABS caddies for maximum security and protection
Fits 2x 5mm-15mm 2.5 SATA HDD/SSD & 1 x Ultra Slim / Slim optical disk drive (ODD)
Fits any external 5.25" drive bay
Multi-Flow Technology provides excellent passive cooling
Accommodates 2.5" drives with 5mm, 7mm, 9.5mm, 12.5mm & 15mm height
Active Power Technology (APT) - only powers up if there is drive installed in the drive bay
Advanced ExpressCage drive caddy MB742TP-B with a new drive-gripping mechanism, strengthened
single-piece latch, and tool-less drive installation
Removable drive caddy system for easy maintenance
Supports SAS (single channel)/SATA 6Gbps and hot-swap
Supports SATA data and power cables with locking latches
A Single SATA power cable powers both drives, reducing cable clutter
Backed by 3-year manufacturer warranty
| |
