All stock codes associated to this product
CSSDF1920GBMP510, CSSD-F1920GBMP510, HBCSF1920GBMP510, HBCS-F1920GBMP510, 840006603153

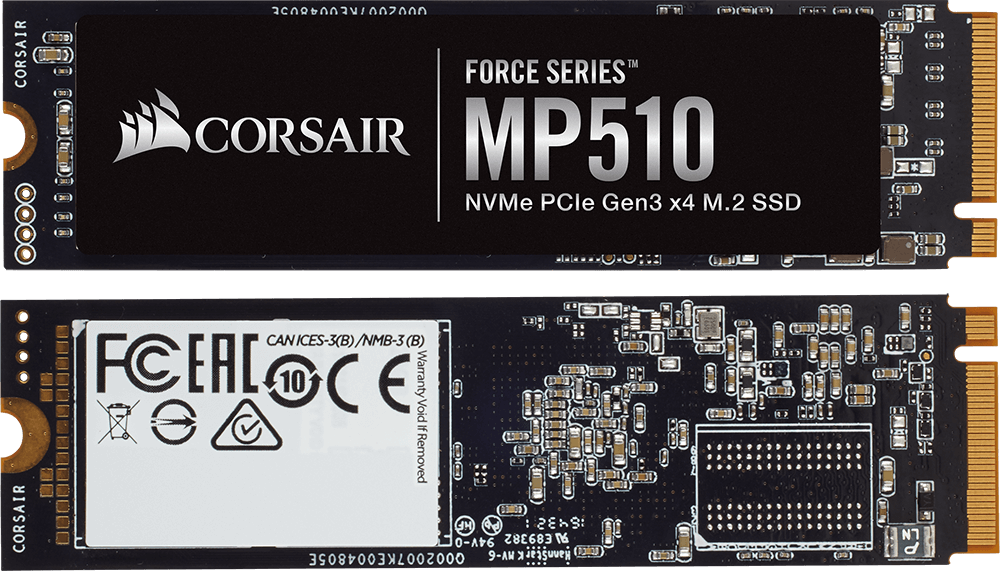

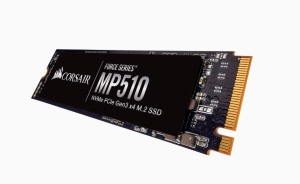

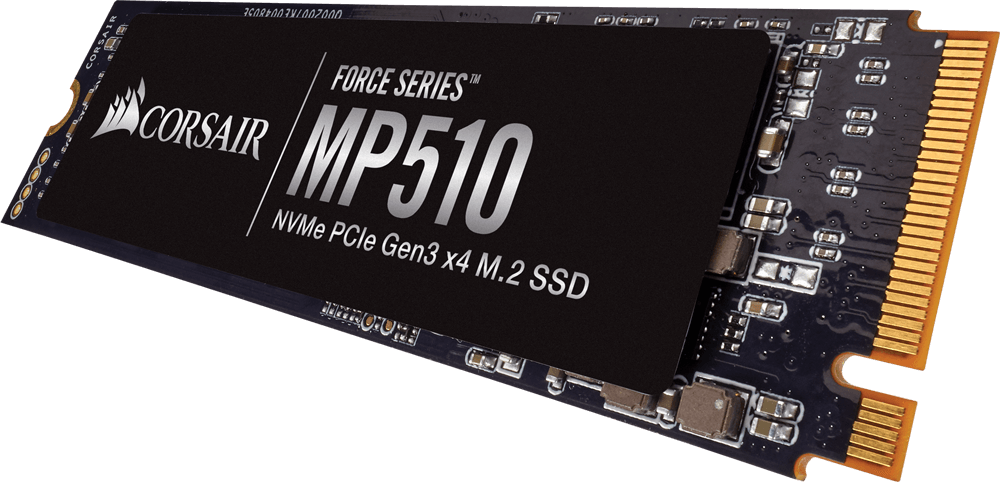

Corsair CSSD-F1920GBMP510 Force Series™ MP510 1920GB M.2
SSD
Overview
The CORSAIR Force MP510 NVMe PCIe Gen3 x4 M.2 SSD provides extreme storage
performance with blazing fast read speeds of up to 3,480MB/sec.
NVME IF YOU WANT TO GO FASTER
EXTREME STORAGE PERFORMANCE
All-new extreme data performance controller delivers up to 3,480MB/sec
sequential read, and up to 3,000MB/s sequential write, for blazing fast read,
write and response times.
HIGH-SPEED NVME PCIE GEN3 x4 M.2 INTERFACE
For simple connection and maximum bandwidth.
HIGH-DENSITY 3D TLC NAND
Provides the ideal mix of performance, endurance and value to keep your drive
performing at its best for years.
COMPACT M.2 2280 FORM FACTOR
Ultra-compact M.2 2280 size fits directly into your notebook or motherboard
with no additional cables or connectors.
COMPREHENSIVE FIVE-YEAR CORSAIR WARRANTY
Long-term reliability and industry leading customer support for peace of
mind.
Compatibility
-
Form Factor: M.2 SSD
-
Supported Platforms: Intel 100, 200, X99, X299 Chipsets, AMD
Socket AM4 Platform
Specifications
-
Endurance: 3,120 TBW
-
MTBF: 1,800,000 Hours
-
DEVSLP: L1.2 < 2mW
-
Encryption: AES 256-bit Encryption
-
Storage Temperature: -40C to +85C
-
SSD Operating Temperature: 0C to +70C
-
SSD Shock: 1500 G
-
Storage Humidity: 93% RH (40 C)
-
Operating Humidity: 90% RH (40 C)
-
Vibration: 20Hz~80Hz/1.52mm, 80Hz~2000Hz/20G
-
SSD Interface: PCIe Gen 3.0 x4
-
SSD Max Sequential Read CDM: Up to 3,480MB/s
-
SSD Max Sequential Write CDM: Up to 2,700MB/s
-
Max Random Write QD32 IOMeter: Up to 530K IOPS
-
Max Random Read QD32 IOMeter: Up to 485K IOPS
-
Form Factor: M.2 2280
-
Dimension: 80mm x 22mm x 3mm
-
Application Consumer: Client
