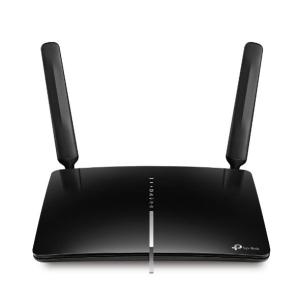

TP-Link Archer MR600 4G+ Cat6 AC1200 Wireless Dual Band Gigabit
Router
The TP-Link Archer MR600 4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router is a high-performance router that supports 802.11a/n/ac and 10/100/1000Mbps LAN and WAN ports. It also has a VPN function that allows you to securely connect to your network.
TP-Link's First 4G+ Router supports 4G+ Cat6 to boost the data speeds of up to 300 Mbps*. Full Gigabit Ports provides reliable wired connections for bandwidth-intensive devices such as game consoles and STB. Plug a SIM card and play no configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests.
The TP-Link Archer MR600 4G+ Cat6 Wireless Router is a great way to enjoy stable and efficient connections to every device. The two external LTE antennas provide better signal for connections everywhere. The Wi-Fi router mode allows you to plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can't get a 4G connection. The TP-Link OneMeshTM feature allows you to create a flexible and cost-efficient Mesh network.
- Router TP-Link's First 4G+ supports 4G+ Cat6 to boost the data speeds of up to 300 Mbps*
- Ports Full Gigabit provides reliable wired connections for bandwidth-intensive devices such as game consoles and STB
- Card Plug a SIM and play no configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests
- Signal Better for Connections Everywhere enjoy stable and efficient connections to every device thanks to the two external LTE antennas
- mode Wi-Fi router plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can't get a 4G connection
- OneMeshTM Supports TP-Link co-works with TP-Link OneMesh products to create a flexible and cost-efficient Mesh network
Supports the 4G+ Cat6, which used Carrier Aggregation technology to boost the data speeds of up to 300 Mbps. Plug your SIM card into the Archer MR600 AC1200 Wireless Dual Band Gigabit Router and enjoy HD movies without interruption, downloading files in seconds, and smooth online gaming. Fully gigabit Ethernet ports provide warp speeds and reliable connections for high-intensive wired devices such as your smart TV, game console, NAS, and more.
Simply plug in a micro SIM card and power on this elegant piece of technology to utilize fast and stable Wi-Fi, whether youre at home or working remote. Got SIM Card? Then Plug and Play. With an integrated 4G+ modem and a built-in SIM card slot, all you need to do is insert a micro SIM card and turn on the Router. Enjoying fast, stable Wi-Fi on a 4G+ network has never been easier. Reliable Access for Up to 64 Devices Simultaneously. Easily share a 3G/4G connection with up to 64 wireless devices, such as phones, tablets, and laptops, at the same time. 4 LAN ports stand ready to provide internet for wired devices like desktop computers. Wi-Fi Where You Need It. Enjoy unmatched convenience and versatility. Tested in the field for years to ensure universal compatibility with 2 advanced LTE antennas to deliver a smooth connection.
The Archer MR600 supports TP-Link OneMesh, allowing it to seamlessly work with other TP-Link OneMesh products to provide a more flexible and cost-effective Mesh network. *OneMesh Range Extender or Powerline Adapter sold separately. Thanks to its easy setup and intuitive web interface, the Archer MR600 can be up and running in minutes. The powerful Tether app also lets you manage the network settings from any Android or iOS device, including parental controls and access control.
Specifications
HARDWARE
FEATURES |
Interface |
1 10/100/1000 Mbps
LAN/WAN Port |
3 10/100/1000 Mbps LAN
Ports |
1 Micro SIM Card
Slot |
Button |
WPS Button, Reset
Button, WiFi On/Off Button, Power On/Off Button |
External Power
Supply |
Power Adapter: Input
Power 100-240v~50/60 Hz 0.6A |
Output parameter 12VDC
1.5A |
Dimensions ( W x D x H
) |
9.06.31.5 in ( 22916037
mm) |
Antenna |
2 Detachable 4G LTE
Antennas |
|
|
WIRELESS
FEATURES |
Wireless
Standards |
IEEE 802.11a/n/ac 5
GHz, IEEE 802.11b/g/n 2.4 GHz |
Frequency |
2.4 GHz and 5
GHz |
Signal
Rate |
300 Mbps at 2.4 GHz,
867 Mbps at 5 GHz |
Reception
Sensitivity |
5 GHz: 11a 54M: -74
dBm |
11ac HT20: -66
dBm |
11ac HT40: -63
dBm |
11ac HT80 : -59
dBm |
11n HT20: -73
dBm |
11n HT40: -70
dBm |
2.4 GHz: 11g 54M: -74
dBm |
11n HT20: -72
dBm |
11n HT40: -69
dBm |
Transmit
Power |
< 20 dBm (2.4 GHz),
< 23 dBm (5 GHz) |
Wireless
Functions |
Enable/Disable Wireless
Radio, Wireless Schedule, WMM, Wireless |
Statistics |
Wireless
Security |
64/128-bit WEP,
WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
Network
Type |
4G: FDD-LTE:
B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700
MHz) |
TDD-LTE: B38/B40/B41
(2600/2300/2500 MHz) |
3G: DC-HSPA+/HSPA/UMTS:
B1/B5/B8 (2100/850/900 MHz) |
|
|
SOFTWARE
FEATURES |
Quality of
Service |
Bandwidth
Control |
Security |
DoS, IPv4 SPI Firewall,
IPv6 Firewal, IP and MAC Address Binding, Access
Control |
WAN
Type |
Dynamic IP/Static
IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
Management |
TP-Link Cloud, Local
Management, Remote Management |
DHCP |
Server, DHCP Client
List, Address Reservation |
Port
Forwarding |
ALG, Virtual Server,
Port Triggering, UPnP, DMZ |
Dynamic
DNS |
TP-Link, DynDns,
NO-IP |
VPN |
PPTP VPN, IPSec VPN ,
OpenVPN |
Access
Control |
Parental Control, Local
Management Control |
Firewall
Security |
DoS, SPI Firewall, IP
Address Filter/Domain Filter, |
IP and MAC Address
Binding |
Protocols |
IPv4,
IPv6 |
Guest
Network |
2.4 GHz Guest Network x
1, 5 GHz Guest Network x 1 |
|
|
OTHERS |
Certification |
CE,
RoHS |
Package
Contents |
4G+ Cat6 AC1200
Wireless Dual Band Gigabit Router Archer MR600 |
Power
Adapter |
RJ45 Ethernet
Cable |
Quick Installation
Guide |
System
Requirements |
Microsoft Windows
98SE/NT/2000/XP/Vista/7/8/8.1/10, MAC OS, |
NetWare, UNIX or
Linux |
Internet Explorer 11,
Firefox 12.0, Chrome 20.0, Safari 4.0, or other |
Java-enabled
browser |
Micro SIM
Card |
Environment |
Operating Temperature:
0~40
(32
~104) |
Storage Temperature:
-40~70
(-40
~158) |
Operating Humidity:
10%~90% non-condensing |
Storage Humidity:
5%~90% non-condensing |
