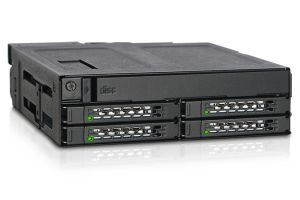

Introducing the ToughArmor
MB604SPO-B ruggedized mobile rack for hot-swapping 4x SATA/SAS SSDs and
HDDs up to 9.5mm in height, and 1x Slim 12.7mm or Ultra-Slim 9.5mm
CD/DVD/Blu-ray ROM optical disk drive reader for the external 5.25" bay.
Featuring industrial full-metal construction inside and out, and
designed for commercial applications such as military and medical
systems, airborne and shipboard PCs, in-vehicle systems, servers,
workstations, and mobile computer systems. Maintain optimal drive
temperatures with the user-configurable 40mm cooling fan and plenty of
ventilation holes throughout the enclosure. Advanced removable trays
with anti-vibration protect drives in harsh environments, and built-in
individual status LEDs give you drive updates at a glance.
|
|
|
Maximize Space-Efficiency
|
|
 |
|
The high-density design of
ToughArmor MB604SPO-B packs four 5mm-9.5mm 2.5" SSD/HDD hot-swap bays
and one Slim/Ultra-Slim CD/DVD/Blu-ray ROM optical disk drive into a
single 5.25" drive bay, perfect for space-sensitive applications such as
powerhouse PC, portable military workstation, and rackmount industrial
PC.
|
 |
|
MB604SPO-B's newly designed
optical drive bracket features an adaptable design to support any Slim
12.7mm or Ultra-Slim 9.5mm CD/DVD/Blu-Ray ROM optical disk drive reader.
|
 |
|
MB604SPO-B's tray is designed
to support HDDs and SSDs up to 9.5mm in height, making them compatible
with SAS drives as well as SATA drives. SAS drives are used in
enterprise applications such as long-term archival for their long
lifespan, higher reliability, and faster rotational speeds up to 15,000
RPM for fast data access.
|
|
|
Designed for Versatility
|
 |
|
Whether you're using a slim or
an ultra-slim disk drive, installation is easy using the conveniently
labeled screw holes. Once connected, simply secure the built-in screw
and your drive is locked into place. This ensures that your optical disk
drive reader stays put, even under heavy movement or vibrations. When
using an Ultra-Slim (9.5mm) optical reader, the included foam spacer can
be installed on top of the ODD for a cleaner look.
|
|
 |
|
|
When it's time to replace or
upgrade your CD/DVD/Blu-ray optical disk drive reader, removal is just
as easy. When the bracket screw is loosened, the spring-loaded ejection
arm is revealed. Simply pull the ejection arm to remove the optical disk
drive from the enclosure.
|
|
|
Built Tough
|
|
 |
|
ICY DOCK's ToughArmor uses a
ruggedized full-metal construction throughout the enclosure and trays,
and this trend continues with the MB604SPO-B. ToughArmor is specifically
designed for industrial applications operating in strenuous conditions,
such as in military and medical applications, avionics systems, factory
and warehouse machinery, and any application requiring a flammability
rating.
|
|
|
Packed with Features
|
|
 |
|
To prevent the build-up of
dust, which over time can clog internal connectors and inhibit airflow,
the included dust cover protects the enclosure when an optical drive is
not in use. When you're ready to install an CD/DVD/Blu-ray optical disk
drive, the dust cover is easily removed without tools or screws.
|
 |
|
Individual LED lights for each
bay give you drive status updates at a glance, letting you know when
your drives are powered on or in use.
|
 |
|
A user-controllable 40mm
cooling fan works with the ample ventilation holes in the tray and
chassis to remove as much heat as possible and keep drives running at
optimal temperatures. The fan can be set to high for intense mechanical
HDD applications, low for use with cooler SSDs, and can be shut off
completely to be cooled by the computers built-in cooling system.
|
 |
|
Support for SATA data and
power cables with locking latch designs, so you'll never have to worry
about cables accidently disconnecting while in use. Once these cables
are connected, they'll stay locked into place until manually removed,
providing a reliable power and data connection.
|
|
|
Make ToughArmor On-The-GO!
With MB991U3-1SB
|
To access your data outside of your system or in a remote location, the ToughArmor MB991U3-1SB
is the way to go about. The drive tray slot of MB991U3-1SB is
compatible with a variety of ToughArmor drive trays including the
ToughArmor MB516, MB607, MB991, MB992, MB994, MB996 and MB998 series.
This allows existing ToughArmor users to access their internal drive
externally without opening up the case. It is a great tool for an
individual drive diagnostic test. If you need to do a safe data erase or
just simply expending system storage capacity, just remove the tray
from the internal ToughArmor unit and insert it in the MB991U3-1SB to
perform individual tasks externally with USB 3.0 interface. Best of all,
the MB991U3-1SB uses USB bus-powered and it does not require a power
adapter to operate. Simply connect the USB cable to any system and you
are ready to go. | | | | |
