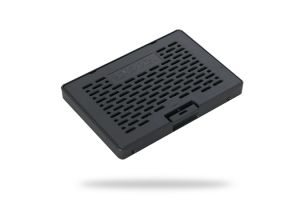

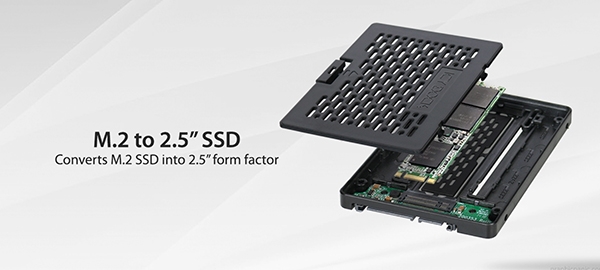

ICY DOCK's EZConvert
MB703M2P-B is a complete solution to convert any M.2 SATA SSD into the
exact dimensions and port locations as a standard 2.5" SSD (9.5mm
height). Designed for compatibility, it accepts all M.2 sizes from 30mm
to 80mm in length, mounting them without screws or tools, and allows
these drives to be installed anywhere that accepts a bare 2.5" drive,
such as a hot-swap bay, 2.5" mounting bracket, or in any of ICY DOCK's
2.5" drive enclosures. MB703M2P-B protects the delicate circuit board of
your M.2 SSDs from bumps and drops.
|
|
|

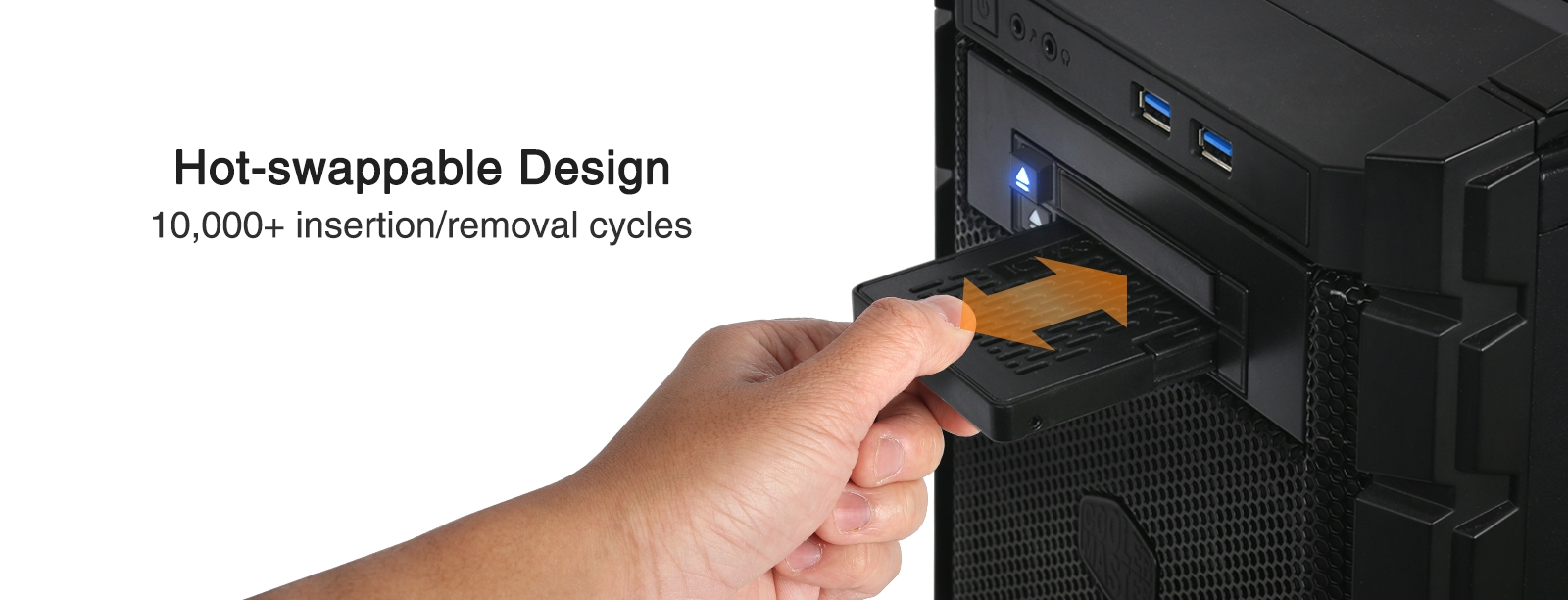

Enable Hot-Swap
|
|
 |
|
|
Because M.2 SSDs are not
designed to be hot-swapped, their connectors are very delicate,
typically rated for only 250 insertion/removal cycles. When used with
the EZConvert MB703M2P-B, M.2 SATA SSDs can be hot-swapped without
putting any wear on the internal connector, instead using ICY DOCK's
strong hot-swap connector rated for 10,000 insertion/removal cycles.
Hot-swap makes it easy to add, remove, and replace drives without the
need to restart the system.
|
|
|
Perfect Compatibility
|
 |
 |

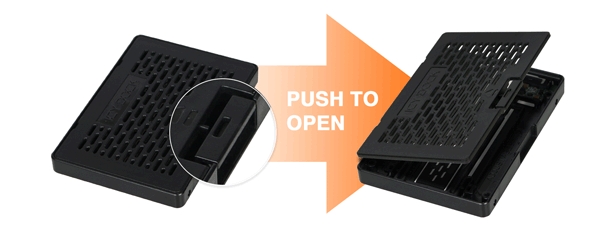

| The 1-piece lid has a sturdy EZ-press
latch, to stand up to frequent drive swaps. Simply press the latch in to
open the lid, revealing the drive bay for easy installation, removal,
or drive replacement. |
 |
|

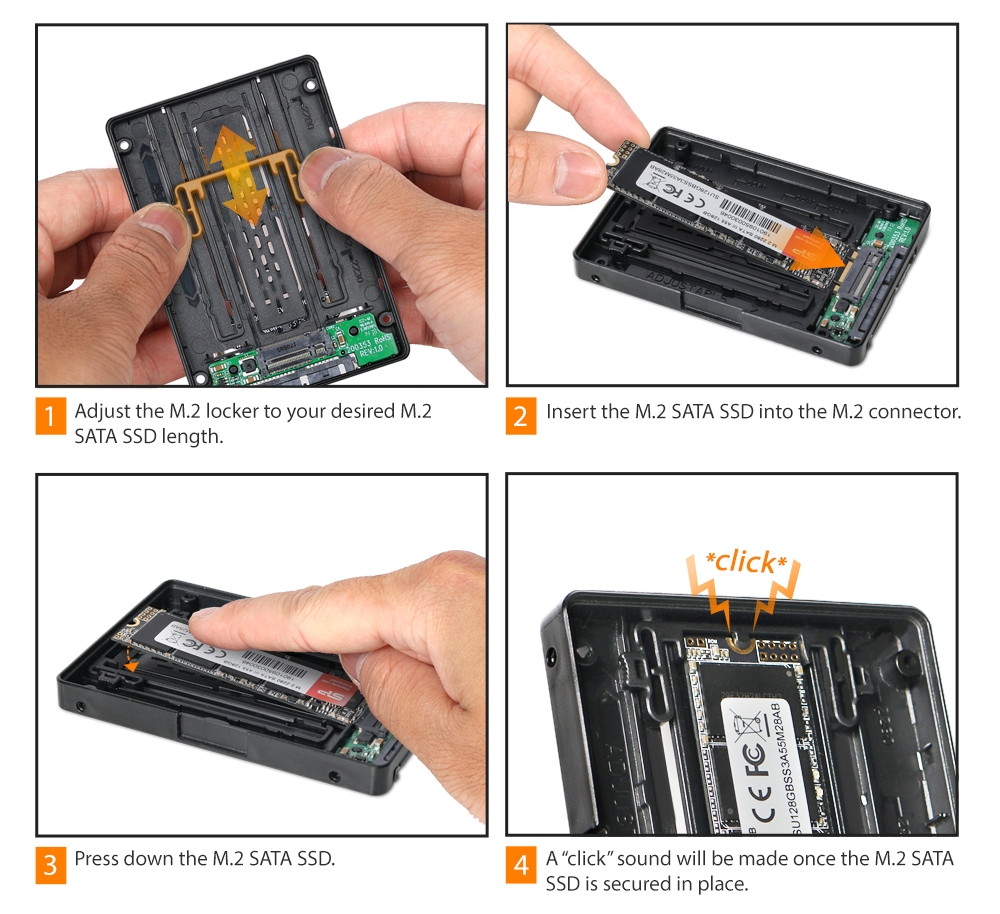

The adjustable M.2 locker
slides to accommodate all standard M.2 SATA SSD lengths, including 2230
(30mm), 2242 (42mm), 2260 (60mm), and 2280 (80mm). The locker clips into
the SSDs screw hole to secure the drive without the need for screws or
tools.
|
|
|
Note: the converter does not support M.2 NVMe SSDs. Please refer to the FAQ fitting guide for more details.
|
 |
 |
|

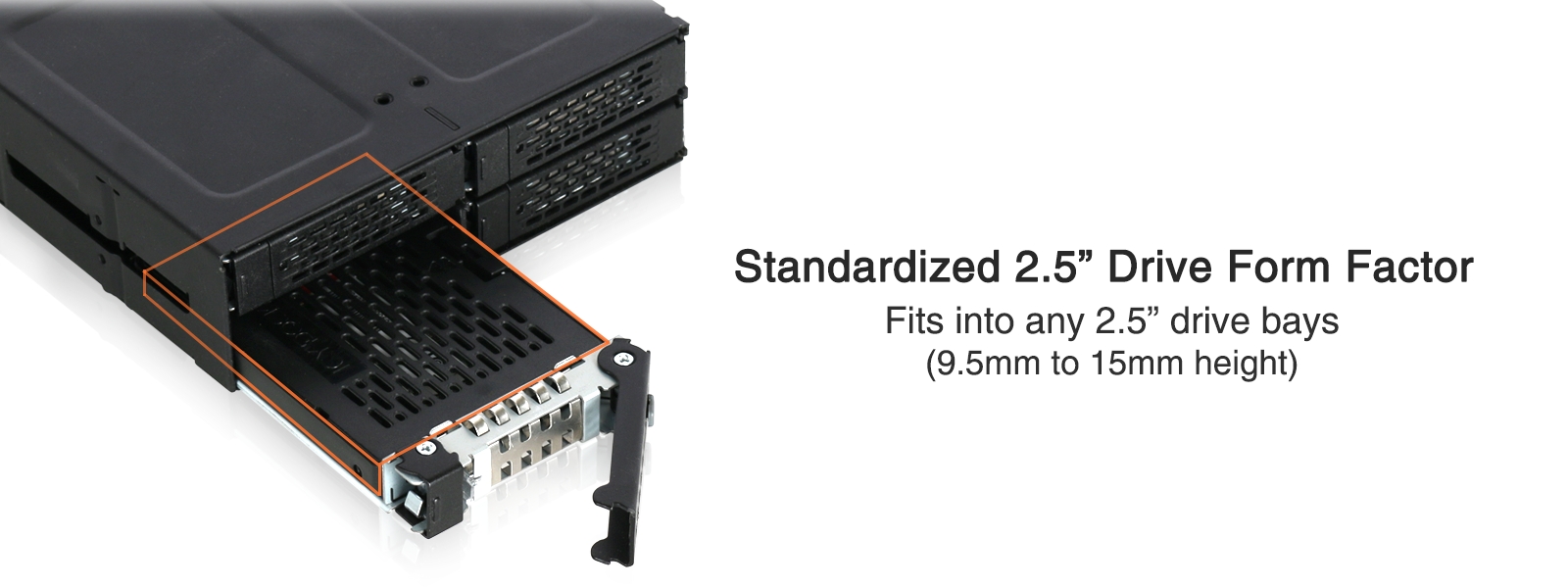

Because the MB703M2P-B uses
the standardized 2.5" form factor, it can be installed into any 2.5"
backplane or hot-swap bay that supports 9.5mm to 15mm height drives,
such as our flexiDOCK, ExpressCage, or several ToughArmor models. This
lets you expand the capabilities of your existing 2.5" devices by adding
M.2 SATA SSD support to them.
|
 |
|

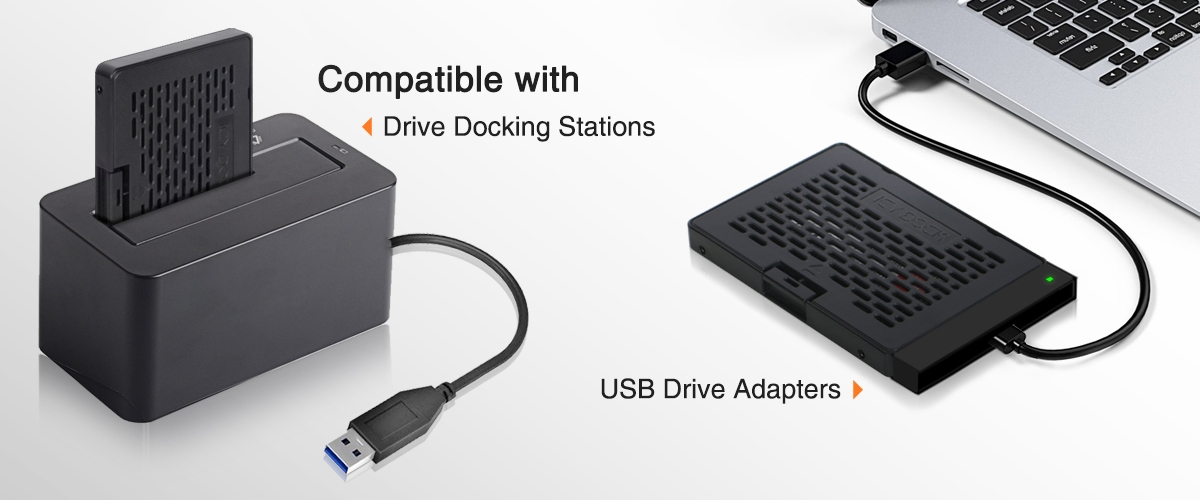

ICY DOCK's EZConvert
MB703M2P-B not only allows you to convert M.2 SATA drives into a 2.5"
drive form factor, but also, when used in combination with an
aftermarket SATA to USB 3.1 adapter cable or docking station, you can
easily convert the MB703M2P-B into an external M.2 SATA drive to access
your data anywhere at any time.
|
|
|
Built to Last
|
|
 |
|

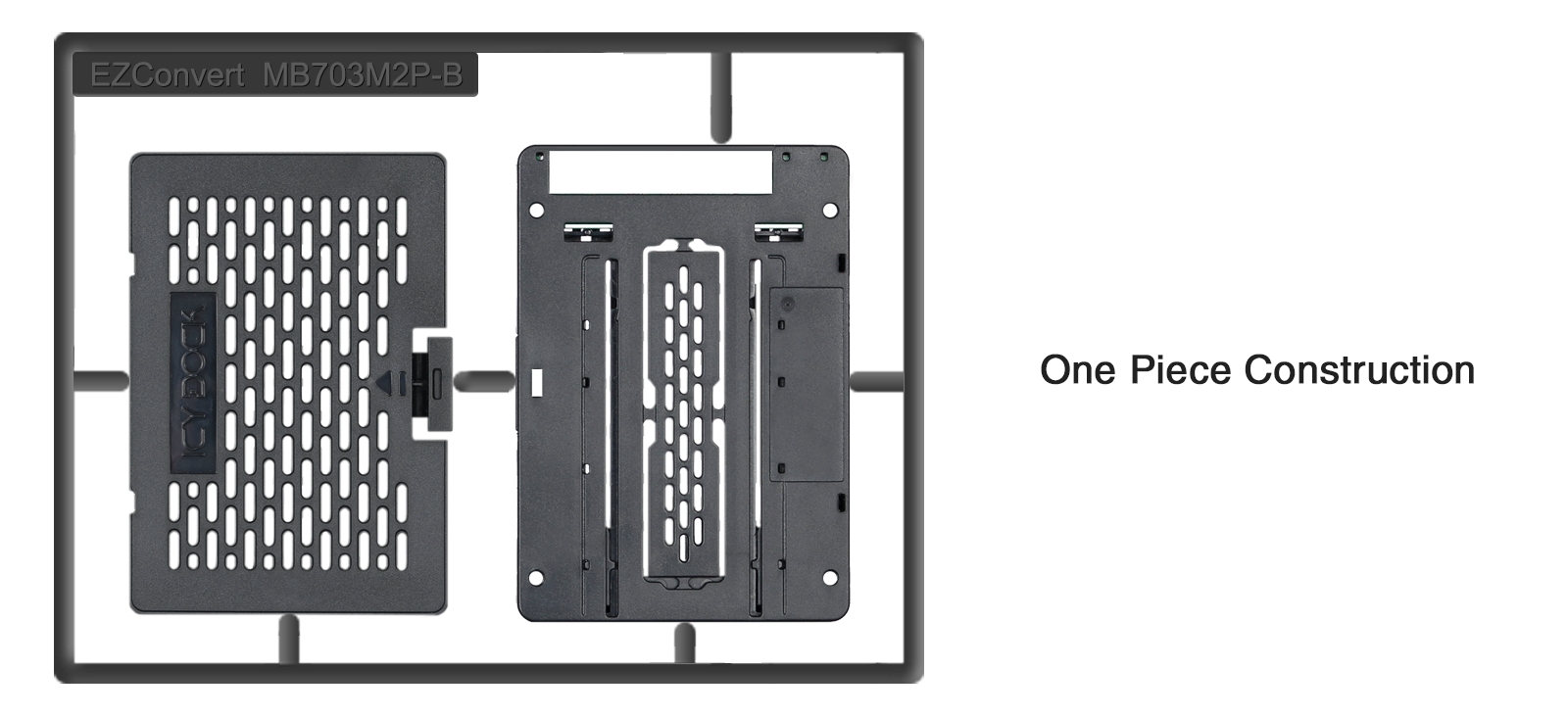

MB703M2P-B's body and lid each
use a 1-peice design, constructed from a single piece of strong ABS
plastic, to strengthen the enclosure and give your drive a physical
layer of protection against drops and bumps. One-piece construction is
preferred over multiple pieces, as the connection between two pieces
creates a weak point that is prone to failure.
|
|
|
Packed with Features
|
|
 |
|

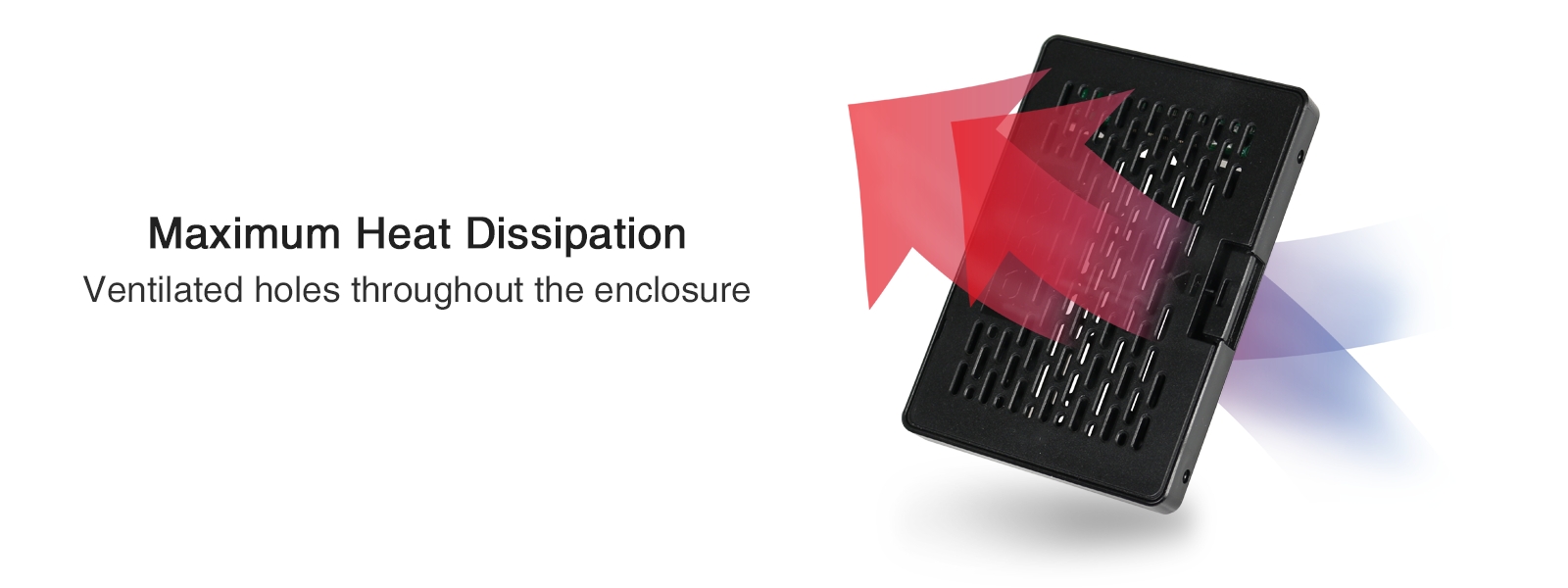

The lid and body have
ventilation holes amply placed throughout the enclosure, working with
your computer's cooling system to cool the drive and protect it from
overheating damage, which can lead to data loss.
|
 |

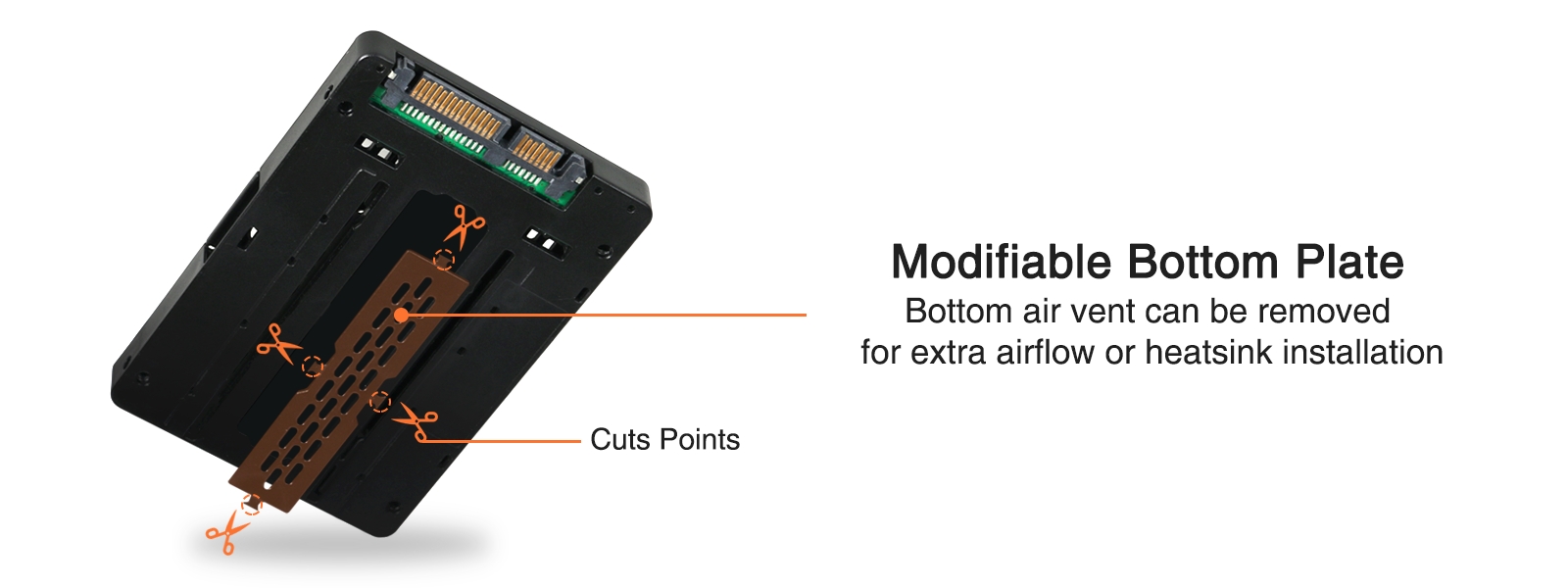

| ICY DOCK's
EZConvert MB703M2P-B was specifically designed to provide maximum
cooling efficiency to prevent speed throttling on SATA M.2 drives. Air
vent holes sit right underneath the SATA M.2 drive, giving the drive
enough air flow while doing intensive reads and writes. Moreover, to
allow more air circulation, these air venting holes can be removed
physically to reveal a cutout, allowing users to install M.2 drive
heatsinks or simply leave it open for an increased cooling effect. |
 |
|

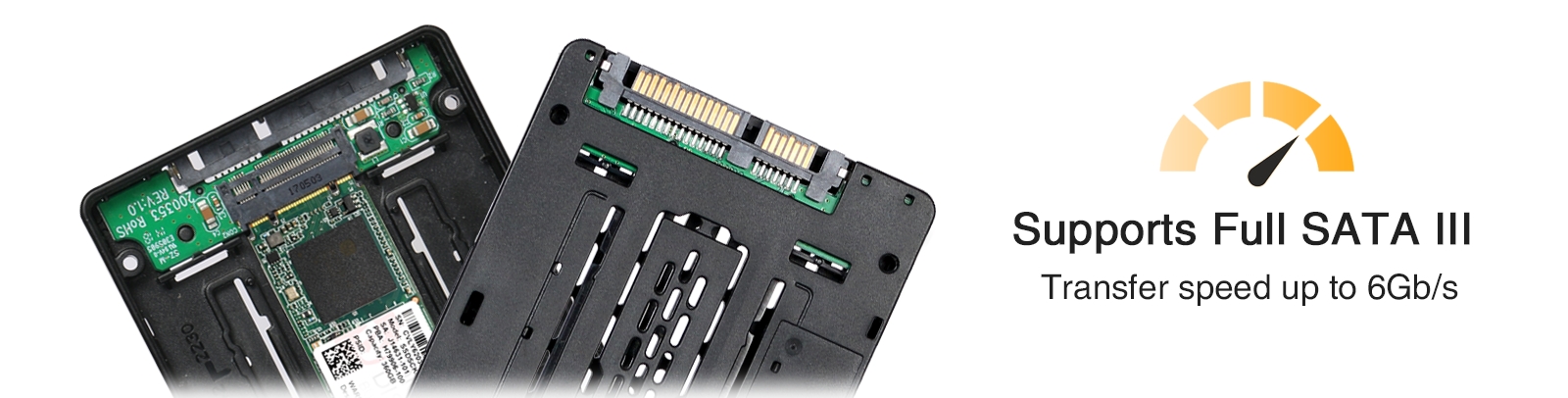

The
MB703M2P-B supports the full SATA III bandwidth specifications of up to
6Gbps, letting you take full advantage of the fastest M.2 SATA SSDs
available.
|
 |
|

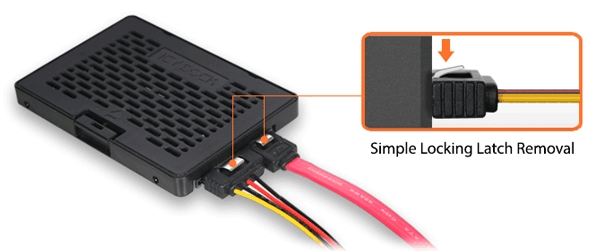

EZConvert supports SATA data
and power cables with locking latch designs, so you'll never need to
worry about cables unintentionally disconnecting from your enclosure.
Once these cables are connected, they'll lock into place and stay that
way.
|
|
|
Key Features
|
|
|
*
|
Convert your M.2 SATA SSD to a 2.5" SSD form factor, 9.5mm in height
|
|
*
|
Exact same dimensions, port locations, and screw locations as a 2.5" SSD (9.5mm height)
|
|
*
|
Accepts any M.2 SATA SSD from 30mm to 80mm in length (2230 / 2242 / 2260 / 2280)
|
|
*
|
Enables hot-swap functionality for any M.2 SATA SSD
|
|
*
|
Supports full SATA III bandwidth specification of 6Gbps
|
|
*
|
100% tool-less and screw-less M.2 drive installation
|
|
*
|
Can be installed into any 2.5" backplane, hot-swap bay, or USB drive adapter.
|
|
*
|
Sturdy ABS plastic construction
|
|
*
|
Body and lid each use strong one-piece construction.
|
|
*
|
Supports SATA data and power cables with locking latch designs
|
|
*
|
Industry leading 3 year warranty with exceptional customer support
|
|
*
|
Complimentary technical support from trained US-based ICY DOCK support technicians | | |
