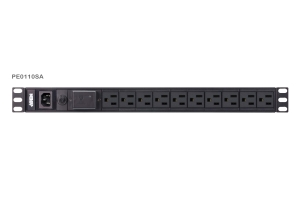

Aten PE0110SG Basic 1U PDU with surge protection
Overview
- Surge Protection
- Space saving — 1U rack mount design
- IEC or NEMA outlet models
- Overcurrent Protection
The Atens PE0110S, a 10-outlet, 1U rack mount power distribution unit (PDU),
provides IEC and NEMA output. It distributes power to 10 receptacles from a
single plug with unfiltered electrical pass-through. The PE0110S also provides
surge protection, prevents damage to your equipment from power surges and
spikes. The integrated surge protector includes a LED indicator, letting you
know the status of your equipment.
Aluminum housing helps prolong the units life with rugged casing made of
impact-resistant material for maximum durability. Basic 1U PDU can be easily
mounted to wall, wooden furniture, or work bench.
Package Contents
- 1x Basic PDU
- 1x Power cord
- 1x User Instructions
Features
- Space saving -1U rack mount design
- IEC or NEMA outlet models
- Surge Protection
- Over-current Protection
- Aluminum material
- Works with data centers, server rooms and telecom equipment
Diagram
Specifications
|
Electrical |
|
|
Nominal
Input Voltage |
100-240
VAC |
|
|
Maximum
Input Current |
10A
(Max) |
|
|
|
Input
Frequency |
50-60
Hz |
|
|
Input
Connection |
For G PlugIEC-320
C14 |
|
|
For PlugChinese
10A |
|
|
Input
Power |
2400VA(Max) |
|
|
Outlet
Type |
(10) IEC-320
C13 |
|
|
Maximum
Output Current (Outlet) |
10A
(Max) |
|
|
Maximum
Output Current (Bank) |
10A
(Max) |
|
|
Maximum
Output Current (Total) |
10A
(Max) |
|
|
OPD(Overcurrent
Protection Device) |
YES |
|
|
Physical
Properties |
|
|
Dimensions
(L x W x H) |
48.20 x 4.44 x 4.50
cm |
|
|
(18.98 x 1.75 x 1.77
in.) |
|
|
Weight |
0.66 kg ( 1.45 lb
) |
|
|
Power
Cord Length |
10ft(31.5mm2) |
|
|
Environmental |
|
|
Temperature
(Operating / Storage) |
0 40
/ -20 60 |
|
|
*When the environmental
temperature comes close 40 degrees, it is recommended to lower the load to
60% to comply to the safety regulations. |
|
|
Elevation
(Operating / Storage) |
3000m |
|
|
Compliance |
|
|
EMC
Verification |
CE Class
A |
|
|
Safety
Verification |
CE,LVD |
|
|
Note |
For some of rack mount
products, please note that the standard physical dimensions of WxDxH are
expressed using a LxWxH format. |
|
