All stock codes associated to this product
XS512EM100AJS, XS512EM-100AJS, 4133253

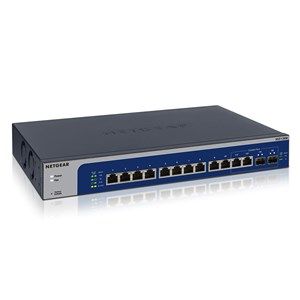

Netgear XS512EM 10-Gigabit/Multi-Gigabit Smart Managed
Plus
Overview
As a leading provider of network equipment for SMBs, NETGEARunderstands
the importance of reliable and high performance networks. With the growth of
virtualization, cloud-based services and applications like VoIP, video streaming
and IP surveillance, SMB networks need to extend beyond simple reliability to
higher speed and performance. The 10-Gigabit and Multi-Gigabit Smart Managed
Plus Switches from NETGEAR present the right solution for this requirement;
delivering unprecedented non-blocking10-Gigabit bandwidth at the most affordable
cost. All of them are perfect for removing the SMB network bottlenecks caused by
the proliferation of Gigabit-to-the-desktop and the upcoming
10-Gigabit/Multi-Gigabit high end workstations.
Configurable L2 Networking Features
The 10G Web Managed (Plus) Switches provide plug-and-play connectivity, in
addition to configurable L2 network features in order to meet current and future
needs on virtualization, converged networking and mobility. Some of the main
features include:
- Advanced VLAN support for traffic segmentation including port-based and
802.1Q-based
- Advanced QoS (Quality of Service) for traffic prioritization including
port-based and 802.1p/DSCP-based
- Auto denial-of-service (DoS) prevention
- IGMP snooping support for multicast optimization
- Loop detection and broadcast storm controls
- Rate limiting and priority queuing for better bandwidth
allocation
- Port mirroring for network monitoring
- Port trunking/link aggregation (LAG) allows for increased throughput
beyond 10G or to provide redundancy across the link(s)
- Jumbo frame support
5-Speed Networking
The all new GS110EMX, XS512EM and XS724EM comes with the revolutionary
5-speed Multi-Gigabit technology built in the NETGEAR multi-speed switches
allows your devices to speed past the Gigabit barrier.
The ports automatically detects which speed is needed by the connected device
and provides the adequate speed. Moreover the Multi-speed switch ports can be
connected with regular Cat5E Ethernet cables, without the need to upgrade to
Cat6 wiring, therefore reducing wiring costs and hassle.
10-Gigabit Transition with BASE-T
With 10GBASE-T support, the 10G Web Managed (Plus) Switches enable a standard
RJ45 Ethernet jack and existing Cat 6 or Cat 7 network cables to be used,
delivering a 10X increase in network performance with minimum network changes
and upgrades.
- 10GBASE-T is backward compatible, auto-negotiating between higher and
lower speeds, thereby not forcing an all-at-once network equipment
upgrade
- Cat 5/Cat 5e are supported for Gigabit speeds and Multi-Gigabit (2.5G, 5G)
speeds up to 100 meters
- Cat 6 twisted pair copper cabling supports 10-Gigabit speeds up to 45
meters
- Cat 6a or newer Cat 7 cabling will allow for up to 100 meter 10GBASE-T
connections
Smart IT, not Big IT
- Easy-to-use web browser-based management GUI makes setup and management
simple
- Standards-based technology, ensuring interoperability with any
standards-based devices in the existing network
- Worry-free with NETGEAR ProSAFE LIFETIME Hardware Warranty
- Minimal down-time with NETGEAR ProSAFE LIFETIME Next-Business-Day (NBD)
Replacement Warranty
- Get deployment assistance with 90-days Free 24x7 Advanced Technical Phone
Support
- LIFETIME 24x7 Online Chat Technical Support
Highlights
HARDWARE FEATURES
10GBASE-T Connections
Support low-latency, line-rate 10G Copper BASE-T technology with backward
compatibility to Gigabit Ethernet and Fast Ethernet. Cost-effectively migrate
current network to 10G capacity by utilizing the existing Cat 6 RJ45 short
connections (up to 45m) and Cat 6a / Cat 7 connections up to 100m.
10GBASE-X SFP+ ports
Providing flexibility to uplink to 10G-capable core or aggregation switches
that support fiber links. Backward compatible to Gigabit fiber. Support copper
or fiber modules.
Multi-Gigabit Connections
Support line-rate 2.5G/5G "NBASE-T" technology with backward compatibility to
Gigabit Ethernet and Fast Ethernet. Upgrade your current network without
upgrading your existing cabling, thanks to Multi-Gigabit you will be able to run
5G and 2.5G over connections up to 100m.
SOFTWARE FEATURES
Comprehensive QoS Features
Advanced controls for optimized network performance and better delivery of
mission-critical traffic such as voice and video. Ingress and egress rate
limiting allows for bandwidth shaping for mitigating network resources
constraints or for optimizing guest access bandwidth on the network.
- Port-based or 802.1p-based prioritization
- Layer 3-based (DSCP) prioritization
- Port-based ingress and egress rate limiting

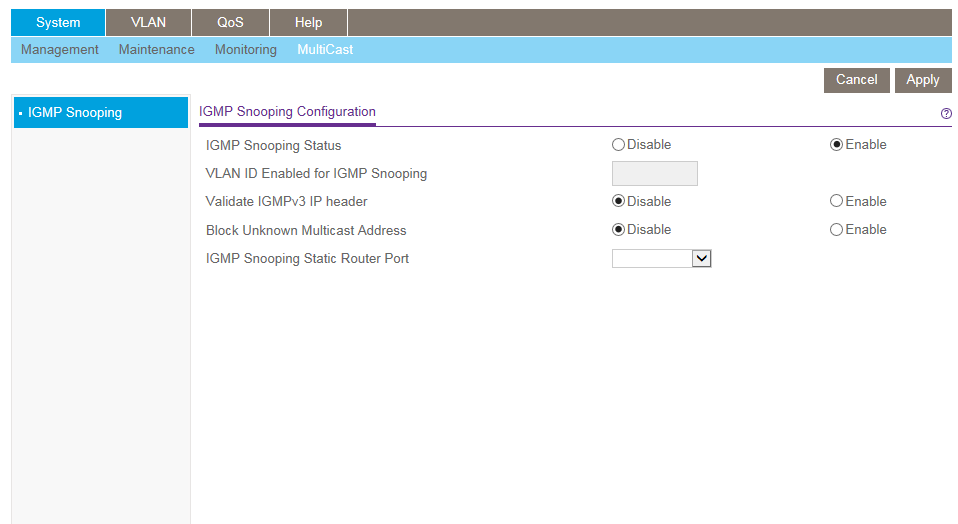

IGMP Snooping
For improved network efficiency on delivering multicast traffic. Save cost
and improve network efficiency by ensuring multicast traffic only reaches
designated receivers without the need of an extra multicast router.
Loop Detection / Auto DoS Prevention
Detect accidental network loops and protect against DoS (Denial of Service)
attacks.
Port-based & 802.1Q-based VLANs
Segment network into smaller groups for more secure and efficient use of
network resources.
Port Trunking / Link Aggregation (LAG)
Build up bigger bandwidth to support aggregated uplink/downlink traffic.
Energy Effiecient Ethernet (IEEE 802.3az)
For maximum power savings and reduced energy costs.
Port Mirroring
For better and quicker network diagnostics and troubleshooting.
Cable Test
Easily identify bad Ethernet cables.
Target Application
Features
L2 Services - VLANs
- IEEE 802.1Q VLAN tagging
- Port-based VLANs (physical)
L2 Services - Availability
- Broadcast, multicast, unknown unicast storm control
- Static manual LAGs (port trunking)
- IEEE 802.3x (full duplex and flow control)
L2 Services - Multicast Filtering
- IGMP snooping (v1, v2 and v3)
- Block unknown multicast
L3 Services - DHCP
Link Aggregation
- Static manual LAGs (port trunking)
- 4 LAGs (XS708Ev2) or 8 LAGs (XS716E) with max 8 members in each
LAG
- GS110EMX, XS512EM, XS724EM supports LACP
Network Security
- Broadcast, multicast, unknown unicast storm control
- DoS attacks prevention
Quality of Service (QoS)
- Port-based rate limiting (ingress and egress)
- Port-based QoS
- IEEE 802.1p COS
- IPv4 DSCP
- IPv4 ToS
- Weighted Round Robin (WRR)
Management
- Password management
- Web browser-based graphical user interface (GUI) for advanced
configuration and management
- ProSAFE Plus Configuration Utility (PCU) for multi-switch management
(requires Windows PC)
- Firmware upgrade via HTTP (Web GUI) or TFTP (Plus Utility)
- Config file transfers (backup, restore) using web browser-based management
GUI or Plus Utility
- Port mirroring; many-to-one port mirroring
- Energy Efficient Ethernet (EEE) IEEE 802.3az (deactivated by
default)
- Short cable power reduction
- Auto power-down
NETGEAR Warranty
- This product is backed by a NETGEAR ProSAFE Limited Lifetime Hardware
Warranty.
- Lifetime Next Business Day Hardware Replacement. Click here for coverage,
availability and terms and conditions.
- ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote
diagnostics performed by our technical experts for prompt resolution of
technical issues). ProSUPPORT coverage can be extended by purchasing one,
three, or five year contracts.
- ProSUPPORT Lifetime 24x7 Advanced Technical Support via
chat.
Specifications
100M/1G/2.5G/5G/10G
RJ-45 copper ports |
12 |
SFP+
Ports |
2
(shared) |
Form
Factor |
Rackmount |
Packet buffer
memory |
3MB |
Bandwidth |
240Gbps |
MAC Address database
size |
32K |
VLAN (#
supported) |
64 |
Number of LAGs &
number of members |
8 LAGs with max 8
members in each LAG |
Supported multicast
groups |
128 |
Max number of source
ports allowed (many to one port mirroring) |
11 |
Fan(s) |
2 (active
fans) |
IEEE 802.3az (Energy
Efficient Ethernet) |
Yes |
Max power
consumption (Watts) |
76.56W |
LEDs |
Power, Speed, Fan,
Link/Activity |
Acoustic noise level
@ 25 C (dBA) |
29.3dBA |
Operating
temperature |
0 to 50
C |
Electromagnetic
compliance (A or B) |
A |
Dimensions (W x D x
H) |
328 x 204 x 43 mm (12.9
x 8.0 x 1.7 in) |
Weight |
2.51kg (5.54
lb) |
