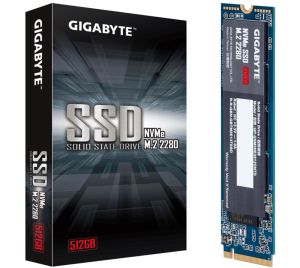

Gigabyte GP-GSM2NE3512GNTD NVMe SSD 512GB
Key Features
- Form Factor: M.2 2280
- Interface: PCI-Express 3.0 x4, NVMe 1.3
- Total Capacity: 512GB*
- Warranty: Limited 5-year or 800TBW
- Sequential Read Speed : up to 1700 MB/s**
- Sequential Write speed : up to 1550 MB/s**
- HMB (Host Memory Buffer) supported
- TRIM & S.M.A.R.T supported

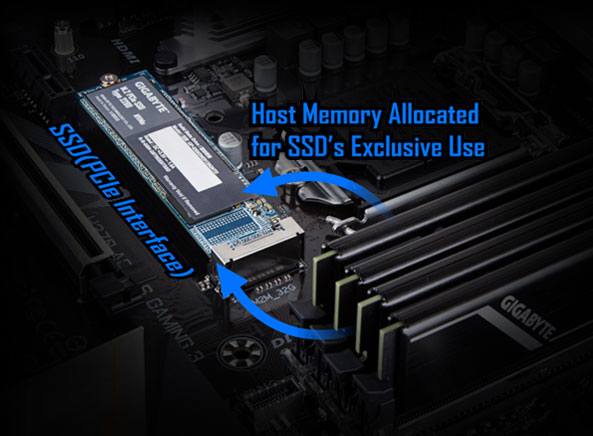

Host Memory Buffer (HMB)
The Host Memory Buffer (HMB) feature utilizes the DMA (Direct Memory Access)
of PCI Express to allow SSDs to use some of the DRAM on PC system, instead of
requiring the SSD to bring its own DRAM.
Breaking the barriers of SATA limitations (1TB)
Outstanding performance
- GIGABYTE NVMe SSD provides performance for your daily computing tasks,
boast of best controller & NAND flash that provide.
- Sequential read speeds up to 1700 MB/s.
- Sequential write speeds up to 1100 MB/s.
- GIGABYTE M.2 PCIe SSD gives you faster data transferring experience
compared to 2.5" SATA solid state drive.
Solid State Drive VS. Traditional Hard Drive
|
Solid State
Drive |
Traditional Hard
Drive |
|
Performance |
Faster |
Slower |
|
Power
Consumption |
Lower |
Higher |
|
Vibration
Resistance |
Better |
Lower |
|
Noise |
No |
Yes |
|
Heat
Produced |
Lower |
Higher |
SSD Tool Box
The newly updated SSD Tool Box is an application that helps users monitor SSD
Status, provides general information such as model name, FW version, health
condition, drive optimization and also detects sensor temperature. Moreover,
users can clear all the data with the Secure Erase function. You can download
the SSD Tool Box from the Support.
Reliability You Can Trust - 5 Years Limited
Warranty
GIGABYTE NVMe SSDs possess both high data transferring speed and enhanced
endurance, providing durable MTBF* of 1.5 million hours and 5 years or 110TBW**
limited warranty***.
Specifications
|
Interface |
PCI-Express 3.0 x4,
NVMe 1.3 |
|
Form
Factor |
M.2
2280 |
|
Total
Capacity |
512GB |
|
Warranty |
Limited 5-year or
1600TBW |
|
NAND |
NAND
Flash |
|
External DDR
Cache |
N/A |
|
Sequential Read
speed |
Up to 1700
MB/s |
|
Sequential Write
speed |
Up to 1550
MB/s |
|
Random Read
IOPS |
Up to
270K |
|
Random Write
IOPS |
Up to
340K |
|
Dimension |
80 x 22 x 2.3
mm |
|
Mean time between
failure (MTBF) |
1.5M
hours |
|
Power Consumption
(Active) |
Avg. read : 3.3W ;
Write : 2.8W |
|
Power Consumption
(Idle) |
1.8mw |
|
Temperature
(Operating) |
0C to
70C |
|
Temperature
(Storage) |
-40C to
85C |
|
Note |
* Test system
configuration: configuration may vary by models, we will choose the latest
platform for verification. |
|
* Performance may vary
based on SSD's firmware version and system hardware & configuration.
Sequential performance measurements based on CrystalDiskMark v.5.1.2 and
I0meter 1.1.0. |
|
* Speeds based on
internal testing. Actual performance may vary. |
|
* TBW (Terabyte
Written):Terabytes Written" is the total amount of data that can be
written into an SSD before it is likely to fail. |
|
* 1GB = 1 billion
bytes. Actual useable capacity may vary. |
|
* 5-years or 1600TBW,
whichever comes first. |
