All stock codes associated to this product
DBS200028, DBS-2000-28, DL17466, 790069442957

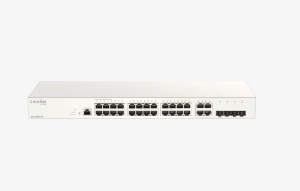

D-Link 28-Port Nuclias Cloud-Managed Switch
Overview
Powerful & flexible Cloud-Managed networking solution for
Small-to-Medium-Sized Businesses (SMBs/SMEs).
- 24 x 10/100/1000BASE-T ports
- 4 x 10/100/1000BASE-T ports
- Zero-Touch Deployment
- Cloud Management w/99.9% SLA
- WPA/WPA2/WPA3 Encryption
- Innovative D-Link Green Energy-saving features
- Intuitive Web Portal for comprehensive switch management
- Multilingual Support
Cloud Networking, Refreshed
The DBS-2000 series of switches is part of the Nuclias Cloud solution D-Links
complete Cloud-Managed Networking solution for Small-to-Medium Businesses
(SMBs), designed to make the ownership and administration of your IT
infrastructure as simple and hassle-free as possible.
Management Over the Cloud
DBS-2000 is a series of Smart Managed Switches, manageable via the Nuclias
Cloud Web Portal through any compatible online PC or Tablet. Connectivity with
the Nuclias Cloud platform is guaranteed, with a 99.9% Service-Level-Agreement
(SLA), and operation will continue even if the Cloud connection fails.
Easy Troubleshooting
The DBS-2000 Series features Cable Diagnostics and Per Port Traffic Packet
Counters to help network admins find & solve network problems. Cable
Diagnostics enables quick examination of cable quality, recognition of cable
type, and detection of cable errors, with the Per-Port Traffic Packet Counter
helping to further isolate problems.
Advanced Security Features
The DBS-2000 series utilizes the Nuclias Cloud Web Portal interface, giving
administrators an easy way to manage Layer-2 features, such as VLANs, Spanning
Tree Protocol (STP), and 802.3ad Link Aggregation (static). With powerful
security features, including IGMP snooping, Static MAC, and end-to-end
encryption (WPA/WPA2/WPA3), these Cloud switches are a versatile solution for
deployments that require easy configuration, without added
complexities.
Specifications
Power
Input |
100-240
VAC |
CPU
Speed |
500MHz |
DRAM
Size |
DDR3
256MB |
Flash Memory
Size |
32MB |
Packet Buffer
Size |
4.1MBits |
FAN |
Fanless |
1000Base-T
Interface |
24 |
Combo
1000Base-T/SFP |
4 |
Auto
MDI/MDIX |
Yes |
Console
Port |
No |
RJ-45 Management
Port |
No |
Alarm
Port |
No |
CompactFlash (CF)
Card Slot |
No |
Secure Digital (SD)
Card Slot |
No |
Number of Module
Slots |
No |
10/100/1000
Mbps |
24 |
Combo 1000
Mbps/SFP |
4 |
Switch
Capacity |
56
Gbps |
Max. Packet
Forwarding Rate |
41.7Mpps |
Dimension |
440mm x 140 mm x
44mm |
Maximum Heat
Dissipation |
59.09
BTU/hr |
Weight |
2.15
kg |
Operation
Temperature |
-5 -
50C |
Storage
Temperature |
-20-70C |
Operation
Humidity |
0% - 95%
RH |
Storage
Humidity |
0% ~ 95%
RH |
Operating
Altitude |
1500
meters |
Maximum Power
Consumption |
17.32
W |
MTBF |
992,594
hours |
