POWER |
AC adapter
input |
100-240V~50-60Hz
0.8A |
AC adapter
output |
12V 2A |
HARDWARE
FEATURES |
Ports |
2 10/100/1000 Mbps RJ45
ports |
Button |
1 Reset button on the
underside |
External Power
Supply |
12 V / 2
A |
Flash |
1
Gbit |
SDRAM |
4
Gbit |
Dimensions |
4.33 4.33 4.49 in (110
110 114 mm) |
Antenna |
4 internal
omni-directional antennas per Deco Unit |
WIRELESS
FEATURES |
Wireless
Standards |
IEEE 802.11a/n/ac/ax
5GHz, |
IEEE 802.11b/g/n/ax
2.4GHz |
Mesh Protocol:802.11
k/v/r |
Frequency |
5
GHz |
2.4
GHz |
Signal
Rate |
575 Mbps on 2.4GHz,
2400 Mbps on 5GHz, 1024QAM on |
2.4GHz and
5GHz |
Transmit
Power |
FCC: <30
dBm(2.4GHz), <30 dBm(5GHz) |
CE: <20 dBm
(2.4GHz), <23 dBm (5GHz) |
Wireless
Security |
WPA/WPA-PSK2/WPA3
encryptions |
SOFTWARE
FEATURES |
Quality of
Service |
WMM |
WAN
Type |
Dynamic IP/Static
IP/PPPoE/L2TP/PPTP |
Management |
Local Management;
Remote Management; Multi-Managers |
DHCP |
Server |
Firewall
Security |
SPI
Firewall |
Protocols |
Supports IPv4 and
IPv6 |
Advanced
Functions |
Parental Controls, QoS
(Quality of Service), Reporting, Assisted |
Setup, Address
Reservation, Port Forwarding, TP-Link DDNS, IPTV, IPv6, LED
Control |
Guest
Network |
2.4 GHz guest network *
1 |
5 GHz guest network *
1 |
APP |
Easy setup by Deco
App |
Working
Modes |
Router, Access
Point |
OTHERS |
Certification |
CE, FCC, IC, RoHS, RCM,
JPA, JRF, VCCI |
Package
Contents |

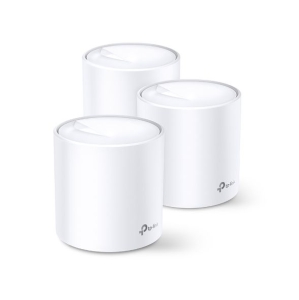

3 Deco X60
units |
1 RJ45 Ethernet
cable |
3 Power
adapters |
1 Quick Installation
Guide |
Smartphone/Tablet
Requirements |
iOS 9.0 or
later, |
Android 4.3 or
later |
Environment |
Operating Temperature:
0~40
(32~104) |
Storage Temperature:
-40~70
(-40~158) |
Operating Humidity:
10%~90% non-condensing |
Storage Humidity:
5%~90%
non-condensing |
