All stock codes associated to this product
DESF1010PE, DES-F1010P-E, 16DESF1010PE, 16DES-F1010P-E, 4620901, DLDESF1010PE, 790069295553

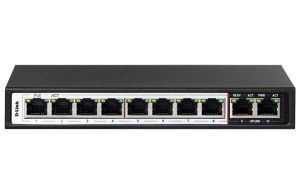

D-Link DES-F1010P-E 10-Port Fast Ethernet Switch with 8 PoE Ports and 2 Uplink Ports
Overview
- 8 10/100 Mbps PoE ports
- 2 10/100Mbps Uplink ports
- 96 W PoE budget
- Support IEEE802.3af/at up to 30W per port to PoE compatible
devices
- Support transmission Data/PoE up to 250m cable length
- 6KV Lightning protection
- Smart Features: Extend, VLAN, QoS and PoE
- Plug &Play Installation
![](/images/extra/p474069-i1.jpg)

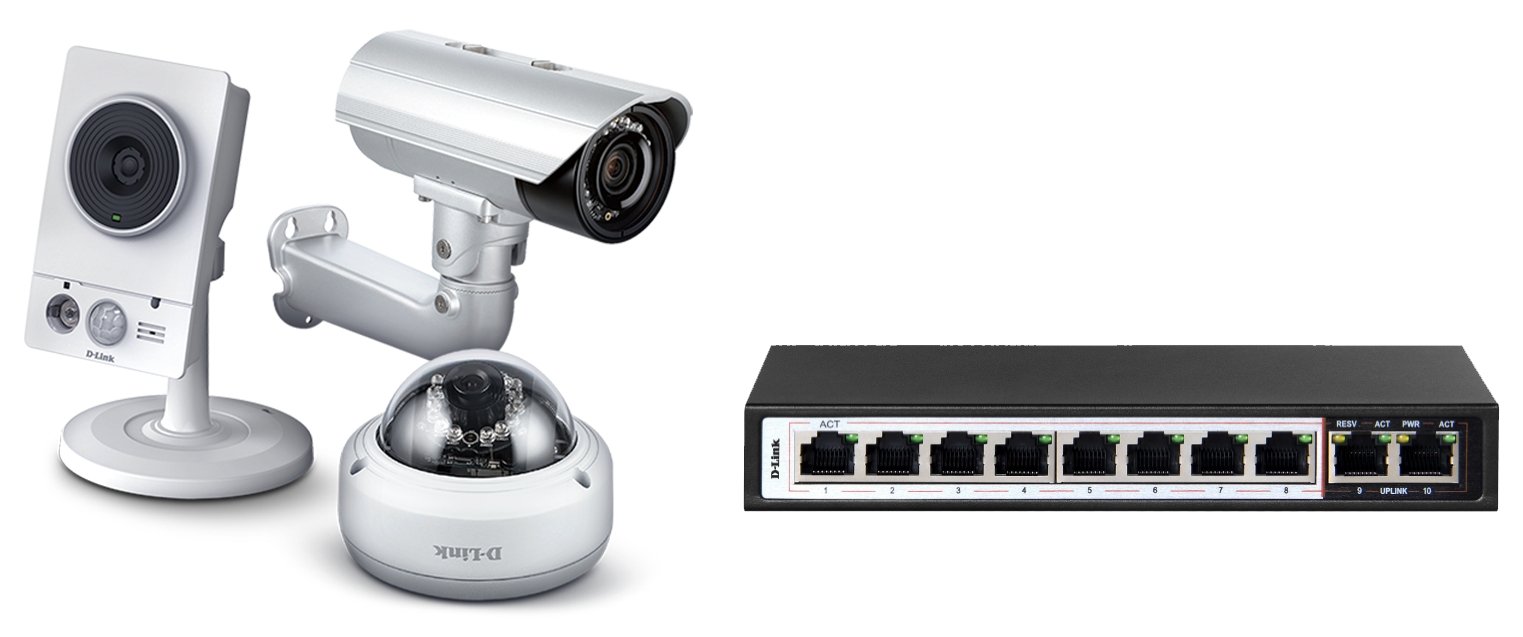

Built for your Need
Robust and cost-effective PoE solution to provide power for your PoE powered
devices such as IP cameras, CCTV, VoIP, AP etc
![](/images/extra/p474069-i2.jpg)

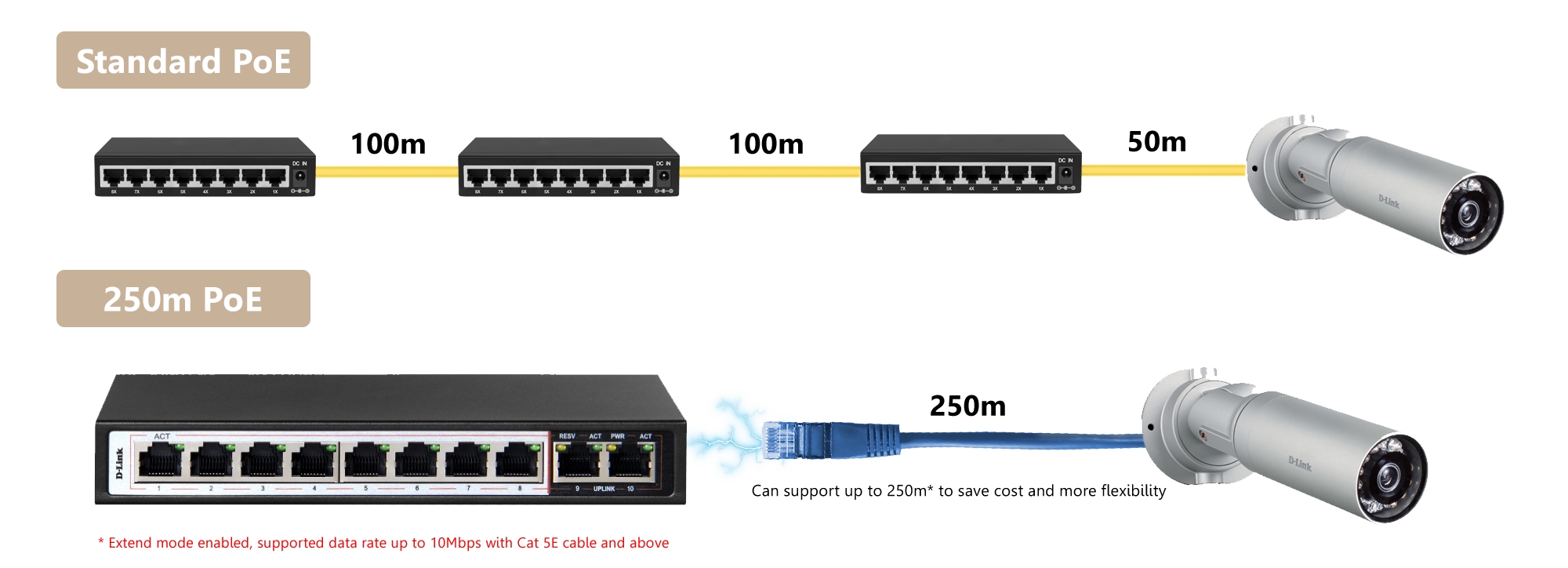

Up to 250m PoE and Data Transmission
Equipped with PoE extend technology, DES-F1010P-E have the capability to
supply 802.3af/at PoE up to 250m with data transmission. Cost saving for long
distance solution
![](/images/extra/p474069-i3.jpg)
6KV Surge Protection
D-Link 250M is enhanced with 6KV surge protection Effectively guard equipment
from lighting damage especially if use on AP/IP camera install outdoor or at
higher position
![](/images/extra/p474069-i4.jpg)
Enhanced with VLAN Function
With a flick of button, Isolate the downlink port to each other can
effectively suppress network storms and improve network performance
![](/images/extra/p474069-i5.jpg)
Enhanced with Video QoS
- Improve the Video Packet Priority
- Create high priority for video streaming, perfect solution for IP
camera/CCTV
![](/images/extra/p474069-i6.jpg)
Intelligent Detection
Automatically Detect unresponsive PoE device and reboot the device for
recovery
![](/images/extra/p474069-i7.jpg)
Robust deployment for all occasion
Specifications
Size |
Desktop |
Interfaces |
8 10/100 BASE-T
ports |
2 10/100 BASE-T Uplink
ports |
Standards |
IEEE 802.3 10BASE-T
Ethernet (twisted-pair copper) |
IEEE 802.3u 100BASE-TX
Fast Ethernet (twisted-pair copper) |
ANSI/IEEE 802.3 NWay
auto-negotiation |
IEEE 802.3x ow
control |
Media Interface
Exchange |
Auto MDI/MDI-X
adjustment on all ports |
Lighting
Protection |
6KV |
Switching
Fabric |
2
Gbps |
Transmission
Method |
Adopt
Store-and-forward |
Data Transfer
Rates |
Fast
Ethernet |
100
Mbps |
Ethernet |
10
Mbps |
Packet Filtering /
Forwarding Rates |
10M port maximum
14800pps |
100M port maximum
148800pps |
PoE
Standards |
IEEE
802.3af |
IEEE
802.3at |
PoE-Capable
Ports |
Ports 1 to
8 |
Power
Budget |
96 W (36 W max. per PoE
port) |
LED
Power |
Yes |
LED
Link/Activity |
Yes |
Weight |
0.95kg |
Dimensions |
184 x 75 x 27
mm |
Power |
External power adapter:
60W |
Temperature |
Operating: 0 to 40 C
(32 to 104 F) |
Humidity |
Operating: 0% to 95% RH
non-condensing |
Storage: 0% to 95% RH
non-condensing |
