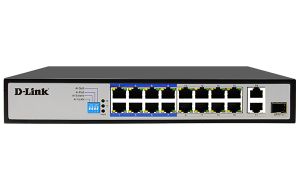

D-Link DES-F1018P-E 18-Port PoE Switch with 16 Long Reach 250m PoE Ports and 2 Gigabit Uplink Ports
Overview
- 10/100/1000 Mbps Ethernet ports
- 2 SFP Uplink
- 150 W PoE budget
- Support IEEE802.3af/at up to 30W per port to PoE compatible
devices
- Support transmission Data/PoE up to 250m cable length (Port 1-8 with
Extend enabled)
- 6KV Lightning protection
- Smart Features: Extend, VLAN, QoS and PoE
- Plug &Play
![](https://dlink.com.sg/wp-content/uploads/2019/06/icon.png)
Built for your Need
Robust and cost-effective PoE solution to provide power for your PoE powered
devices such as IP cameras, CCTV, VoIP, AP etc
![](https://dlink.com.sg/wp-content/uploads/2019/07/compare-2.png)
Up to 250m PoE and Data Transmission
Equipped with PoE extend technology, DGS-F1018P-E have the capability to
supply 802.3af/at PoE up to 250m with data transmission. Cost saving for long
distance solution
![](https://dlink.com.sg/wp-content/uploads/2019/07/3-product-2.png)
6KV Surge Protection
D-Link 250M is enhanced with 6KV surge protection Effectively guard equipment
from lighting damage especially if use on AP/IP camera install outdoor or at
higher position
![](https://dlink.com.sg/wp-content/uploads/2019/07/4-vlan-1.png)
Enhanced with VLAN Function
With a flick of button, Isolate the downlink port to each other can
effectively suppress network storms and improve network performance
![](https://dlink.com.sg/wp-content/uploads/2019/07/5-ip.png)
Enhanced with Video QoS
- Improve the Video Packet Priority
- Create high priority for video streaming, perfect solution for IP
camera/CCTV
![](https://dlink.com.sg/wp-content/uploads/2019/07/6-backup.png)
Intelligent Detection
Automatically Detect unresponsive PoE device and reboot the device for
recovery
![](https://dlink.com.sg/wp-content/uploads/2019/06/7-img.jpg)
Robust deployment for all occasion
Specifications
Size |
Desktop (with Mounting
Kit) |
Interfaces |
16 10/100/1000 BASE-T
ports |
2
SFP |
Standards |
IEEE 802.3u,Fast
Ethernet standard; |
IEEE 802.3ab,Gigabit
Ethernet standards |
IEEE 802.3ab,Gigabit
Ethernet standards |
IEEE 802.3x,Full-duplex
Ethernet data link layers; |
|
IEEE 802.3af/at
,Ethernet power supply POE standard |
|
IEEE 802.3az
,EEE,Energy effecient Ethernet standard; |
|
IEEE 802.3z ,Gigabit
Ethernet fiber-optic standard |
Media Interface
Exchange |
Auto MDI/MDI-X
adjustment on all ports |
Lighting
Protection |
6KV |
Switching
Fabric |
36
Gbps |
Transmission
Method |
Adopt
Store-and-forward |
Data Transfer
Rates |
Gigabit
Ethernet |
1000
Mbps |
Ethernet |
100
Mbps |
Packet Filtering /
Forwarding Rates |
10M port maximum
14800pps |
100M port maximum
148800pps |
1000M port maximum
1488000pps |
PoE
Standards |
IEEE
802.3af |
IEEE
802.3at |
PoE-Capable
Ports |
Port 1 - 16 (Port 1 - 8
PoE can support up to 250m @ 10Mbps with Extend
enabled) |
Power
Budget |
150 W (30 W max. per
PoE port) |
LED
Power |
Yes |
LED
Link/Activity |
Yes |
Weight |
3kg |
Dimensions |
440 x 180 x 44
mm |
Power |
150W |
Temperature |
Operating: 0 to 40 C
(32 to 104 F) |
Humidity |
Operating: 0% to 95% RH
non-condensing |
Storage: 0% to 95% RH
non-condensing |
