All stock codes associated to this product
RE605X, NWTLRE605X, NWTL-RE605X, RE605X , 5026770, 6935364010683, 6935364030582

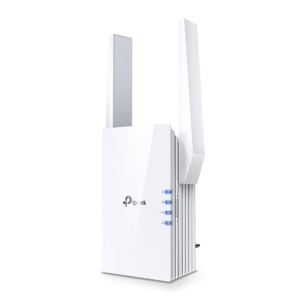

TP-Link RE605X AX1800 Wi-Fi Range Extender
Overview
- RE605X comes equipped with the latest wireless technology, Wi-Fi 6, for
faster speeds, greater capacity, and reduced network congestion.
- Creates a Mesh network by connecting to a OneMesh router for seamless
whole-home coverage.
- Gigabit Ethernet Port Provide faster-wired connections to smart TVs,
computers and gaming consoles
- Intelligent Signal Light Helps to determine the best location for optimal
Wi-Fi coverage by indicating the signal strength in the current
placement
- AP Mode create a new Wi-Fi access point to enhance your wired network with
Wi-Fi capability
- TP-LINK Tether App Easily access and manage your network using any iOS or
Android mobile device
- Ultimate Compatibility Extend the range of any Wi-Fi router or wireless
access point
Get More Range with Your Existing Router
A single router has limited WiFi coverage and always causes WiFi dead zones.
RE605X wirelessly connects to your existing router and boosts more WiFi signals
throughout your home, allowing you to enjoy smooth WiFi 6 network experiences
everywhere with great speed, capacity, and coverage.
WiFi 6: More Connections with Better
Performance
The latest Wi-Fi 6 technology is built for todays devices, eliminating lag,
endless loading, and dead spots. It fully satisfies your network needs
especially for bandwidth-intensive tasks like cloud gaming or 4K UHD
video.
AX1800 Dual Band WiFi
Meeting All Your Different Networking Needs
TP-Link OneMesh: Optimize for Smoothest WiFi
Experience
OneMesh is a simple way to form a Mesh network with a single WiFi name for
seamless whole home coverage. Just connect a OneMesh range extender to a OneMesh
router. No more searching around for a stable connection.
Smart Roaming
Uninterrupted streaming when moving around your home
One Wi-Fi Name
No more switching Wi-Fi network names
Easy Creation
OneMesh Router and OneMesh Range Extenders pair instantly
Unified Management
Manage the entire network all from the TP-Link Tether app
Advanced Features Made for Speed
Adaptive Path Selection
Keeps your network running at top speed by automatically choosing the fastest
connection path to the router.
High Speed Mode
Use both WiFi bands to enjoy super-fast connectionsideal for HD streaming and
gaming.
Built-In Access Point Mode
RE605X is more than a wireless range extender. Simply plug an Ethernet cable
into its Ethernet port, and easily turn your wired internet connection into a 22
MU-MIMO dual band wireless access point.
Control at Your Fingertips
Set up and manage your Wi-Fi through the TP-Link Tether app from your
smartphone (Android, iOS), including TP-Link routers and range
extenders.
Specifications
HARDWARE
FEATURES |
Ports |
1
Gigabit Ethernet Port |
Button |
WPS
Button, Reset Button |
Power
Consumption |
10W |
Dimensions
( W x D x H ) |
2.91.84.9
in. (74.046124.8 mm) |
Antenna |
2
External Antennas |
WIRELESS
FEATURES |
Wireless
Standards |
IEEE
802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n/x
2.4GHz |
Frequency |
2.4GHz
and 5GHz |
Signal
Rate |
574
Mbps at 2.4GHz, 1201 Mbps at 5GHz |
Reception
Sensitivity |
5GHz: |
11a
6Mbps: -93dBm, |
11a
54Mbps: -75dBm |
11ac
HT20 MCS0: -92dBm, |
11ac
HT20 MCS8: -70dBm |
11ac
HT40 MCS0: -90dBm, |
11ac
HT40 MCS9: -66dBm |
11ac
HT80 MCS0: -87dBm, |
11ac
HT80 MCS9: -62dBm |
2.4GHz: |
11g
54Mbps: -77dBm, |
11n
HT20 MCS7: -75dBm |
11n
HT40 MCS7: -72dBm |
Transmit
Power |
CE:
2.4GHz 20dBm, 5GHz 30dBm |
Wireless
Functions |
Enable/Disable
Wireless Radio, Wireless Statistics |
Wireless
Security |
64/128-bit
WEP, WPA/WPA-PSK2 encryptions |
OTHERS |
Package
Contents |
Wi-Fi
Range Extender RE605X |
Quick
Installation Guide |
System
Requirements |
Microsoft
Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10, MAC OS,
NetWare, UNIX or Linux |
Internet
Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled
browser |
Certifications |
FCC,
RoHS |
