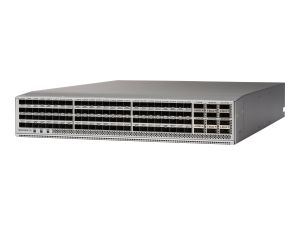

Product Description | Cisco Nexus 93360YC-FX2 - switch - 96 ports - Managed - rack-mountable |
Device Type | Switch - 96 ports - L3 - Managed |
Enclosure Type | Rack-mountable 2U |
Ports | 96 x 1/10/25 Gigabit SFP+ + 12 x 40/100 Gigabit QSFP28 |
Capacity | Longest prefix match (LPM) routes: 896000 ? IP host entries: 896000 ? MAC addresses: 256000 ? Multicast routes: 32000 ? ACL entries (ingress): 5000 ? ACL entries (egress): 2000 ? VLANs supported: 3967 ? ECMP paths: 64 ? Port channels: 512 ? SPAN sessions: 4 ? Rapid Per-VLAN Spanning Tree Plus instances: 3967 ? HSRP groups: 490 ? NAT entries: 1023 ? MST instances: 64 |
Routing Protocol | OSPF, RIP, RIP-2, BGP, EIGRP, HSRP, PIM-SM, Multiprotocol BGP, MSDP, ECMP, MPLS, RSVP |
Features | Layer 3 switching, MPLS support, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Multicast Source Discovery Protocol (MSDP), Virtual PortChannel (vPC) technology, MACsec support, 3 fans, Virtual Extensible LAN (VXLAN), Open Shortest Path First (OSPF), Source-Specific Multicast (SSM), Ethernet Virtual Private Network (EVPN), 40MB system buffer, Power On Auto Provisioning (POAP), Port-side exhaust (PSE) |
Compliant Standards | IEEE 802.1ae |
Power Redundancy | Optional |
Dimensions (WxDxH) | 44.23 cm x 58.29 cm x 8.59 cm |
Manufacturer Warranty | 1-year warranty |
