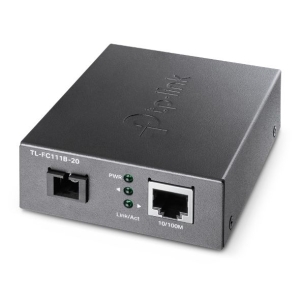

TP-Link TL-FC111B-20 10/100 Mbps WDM Media Converter

Our Price:

$34.35

RRP:

~~$39.00~~

You Save:

$4.65

Qty:

Add To Cart

or quickly purchase this product

Buy Now

Backorder

Part Number:

481597

(?) Brand:

TP-Link

Manuf No:

TL-FC111B-20
TLFC111B20

Shipping Weight:

0.36 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

Enter email address to be notified when this item is available again

Join waiting list

All stock codes associated to this product

TLFC111B20, TL-FC111B-20, NWTLFC111B20, NWTL-FC111B-20, 5243288, 6935364010997, TL99060

TP-Link TL-FC111B-20 10/100 Mbps WDM Media Converter

Overview

Complies with 802.3u 10/100Base-TX, 100Base-FX standards
Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
9/125 m SMF (Single-Mode Fiber)
Bidirectional WDM communication on a single fiber
Ranges up to 20km (12.4 miles)
Work with TL-FC111B-20 as a pair

What This Product Does

TL-FC111B-20 is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.

How This Product Works

TL-FC111B-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20km (12.4 miles) over only one fiber, which saves half of the cable deployment cost for customers. TL-FC111B-20 transmits data at 1310nm wavelength and receives data at 1550nm wavelength on optical fiber. The TL-FC111A-20 works in the other end as a pair by receiving data at a wavelength 1310nm and sending data at wavelength 1550nm.

Specifications

NETWORK
Standards and Protocols	IEEE802.3, IEEE802.3i, IEEE802.3u
ENVIRONMENT
Operating Temperature	0C to 50C (32F to 122F)
Storage Temperature	-40C to 70C (-40F to 158F)
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% RH non-condensing
HARDWARE FEATURES
Network Media	100BASE-Tx: 2-pair UTP/STP of Cat. 5 or above (100 m)
Power Supply	External Power Adapter: 5 V/0.6 A
LED	PWR, Link/Act
Dimensions ( W x D x H )	94.57327 mm
Wave Length	1310 nm TX, 1550 nm RX
ANTENNA
Connector Type	1 SC fiber optic, 1 RJ45 jack
MEDIA CONVERTER & MODULE
Standards and Protocols	IEEE 802.3, IEEE 802.3i, IEEE802.3u
Basic Function	Auto-negotiation of half-duplex / full-duplex transfer mode
	Full-duplex flow control (IEEE 802.3x)
	Half-duplex flow control (Backpressure)
	Extends fiber distance up to 20km (12.4 miles)
Ports	1x 100M single SC/UPC port
Ports	1x 10/100M RJ45 port (Auto MDI/MDIX)
WDM TX	1310 nm
WDM RX	1550 nm
Network Media 10BASE-T	UTP category 3, 4, 5 cable (maximum 100m)
Network Media 10BASE-T	EIA/TIA-568 100 STP (maximum 100m)
Network Media 100BASE-T	UTP category 5, 5e cable (maximum 100m)
Network Media 100BASE-T	EIA/TIA-568 100 STP (maximum 100m)
Network Media 100BASE-FX	Single-mode fiber
LED Indicators	PWR, Link/Act
Dimensions (WDH)	3.7 2.9 1.1 in.
Dimensions (WDH)	(95 73 27 mm)
Power Supply	External Power Adapter: 5 V/0.6 A
Safety & Emission	FCC, CE, RoHS
Fiber Type	9/125 m single-mode fber (20 km)
Environment	Operating Temperature: 0~50 (32~122)
	Storage Temperature: -40~70 (-40~158)
	Operating Humidity: 10%~90% non-condensing
	Storage Humidity: 5%~90% non-condensing

No additional files, specification sheets, guides or documentation found for product.

Warranty: 36 Month Manufacturers Return To Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
