All stock codes associated to this product
OC300, NHTLOC300, NHTL-OC300, OC300, 5042052, 6935364089863, TL22000

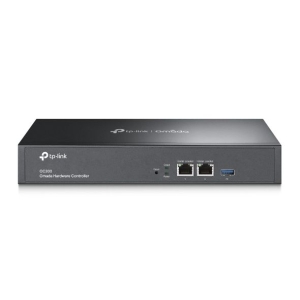

TP-Link OC300 Omada Hardware Controller
Overview
- Centralized management for up to 500 Omada access points, JetStream
switches, and SafeStream routers.
- Cloud access to manage from anywhere, anytime.
- Locally monitor and manage devices with the ultimate security and
stability.
- The Omada app for convenient management.
- Industry-leading hardware design with a powerful chipset, durable metal
casing, and USB 3.0 port for auto backup.
- Batch management, multi-site management, and remote firmware updates
benefit network maintenance.
- The easy-to-use dashboard makes it easy to see your real-time network
status and check network usage and traffic distribution.
- Network topology helps IT admins quickly see and troubleshoot connections
at a glance.
Centralized Management for Access Points, Switches, and
Gateways
OC300, the hardware controller for the Omada Software Defined Networking
(SDN) platform, provides 100% centralized management of access points, switches,
and gatewaysall controlled from a single interface.
- Omada SDN Controller
- Centralized Management of up to 500 Devices and 15,000 Clients
- No PC/Server Needed
- Cloud Service With No License Fees
Hybrid Cloud for Maximum Convenience
Featuring hybrid cloud technology, the Omada Hardware Controller OC300 allows
you to remotely control the whole network wherever you are in the world with
cloud access. Locally manage devices with the ultimate security and
stability.
Industry-Leading Hardware Design
Equipped with an advanced design and the latest chipset, OC300 has enough
processing power to support the massive management of your business network.
Rackmount/desktop design benefits easier and flexible
installation.
Easy and Intelligent Network Monitoring
The easy-to-use dashboard makes it easy to see your real-time network status;
check network usage and traffic distribution; receive network condition logs,
abnormal event warnings, and notifications; or even track key data for better
business results. Network topology helps IT admins quickly see and troubleshoot
connections at a glance.
Multiple Factors Guarantee Easier Network
Maintenance
Batch Management, Multi-Site Management, and Remote Firmware
Updates
Improve network maintenance without needing to configure on-site or manage
devices one by one.
Powerful Scheduling
Maintain your network easily with more agile and effective processing. No
manual tasks required.
Greater Convenience with the Omada App
Remotely access and configure your whole network with a tap of your phone
from anywhere in the world.
Specifications
|
HARDWARE
FEATURES |
|
Interface |
2
x 10/100/1000 Mbps Ethernet Ports |
|
1
x USB 3.0 Port |
|
Power
Supply |
100-240
V~50/60 Hz, 0.6 A |
|
Dimensions |
11.6
x 7.1 x 1.7 in |
|
(294
180 44 mm) |
|
MANAGEMENT |
|
Omada
App |
Yes |
|
Centralized
Management |
Up
to 500 Omada access points, JetStream switches, and SafeStream
routers* |
|
Up
to 15,000 clients |
|
Cloud
Access |
Yes |
|
L3
Management |
Yes |
|
Multi-site
Management |
Yes |
|
Management
Features |
Automatic
Device Discovery |
|
Batch
Configuration |
|
Batch
Firmware Upgrading |
|
Intelligent
Network Monitoring |
|
Abnormal
Event Warnings |
|
Unified
Configuration |
|
Reboot
Schedule |
|
Captive
Portal Configuration |
|
OTHERS |
|
Certification |
CE,
FCC, RoHS |
|
Package
Contents |
Omada
Hardware Controller OC300 |
|
Quick
Installation Guide |
|
Ethernet
Cable |
|
Power
Cord |
|
Rackmount
Kit |
|
Environment |
Operating
Temperature: 0-50 C (32122 ) |
|
Storage
Temperature: -40-70 C (-40158 ) |
|
Operating
Humidity: 10-90% RH non-condensing |
|
Storage
Humidity: 5-90% RH
non-condensing |
Networking
