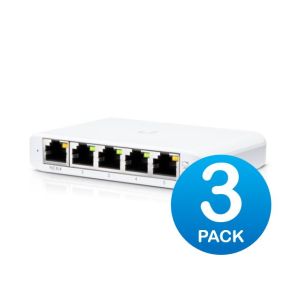

Ubiquiti USW Flex Mini - 3-Pack
Overview
5-Port managed Gigabit Ethernet switch powered by 802.3af/at PoE or
5V, 1A USB-C power adapter.
Build and expand your network with the UniFi Switch, part of the Ubiquiti
Networks UniFi Enterprise System. The UniFi Switch, model USW-Flex-Mini, is a
smart managed Gigabit switch. It offers 5 RJ45 Ethernet ports, providing 1
Gigabit links to your devices. Power up the USW-Flex-Mini with the included USB
Type-C power adapter or with 802.3af PoE Ethernet in port 1.
Managed by UniFi Network Controller version: 5.12.5 or higher
Works with UniFi Network Controller
- Manage Your Networks from a Single Control Plane
- Intuitive and Robust Configuration, Control and Monitoring
- Remote Firmware Upgrade
- Users and Guests
- Guest Portal/Hotspot Support
Specifications |
|
Dimensions |
107.16
x 70.15 x 21.17 mm |
(4.22
x 2.76 x 0.83") |
Weight |
150
g |
(5.29
oz) |
Networking
Interfaces |
(5)
10/100/1000 Mbps RJ45 Ports |
PoE
In Interface |
802.3af/at
PoE (Pins 1, 2+; 3, 6-) |
Max.
Power Consumption |
2.5W |
Power
Method |
USB
Type C, 5V 802.3af/at |
PoE
(44 - 57VDC, 0.05 - 0.04A) |
Power
Supply |
5V,
1A Power Adapter* |
Voltage
Range |
|
USB
Type C |
4.7
- 5.2VDC |
802.3af/at
PoE |
44
- 57VDC |
LEDs |
|
System |
Status |
RJ45
Data Ports |
Link/Speed/Activity |
ESD/EMP
Protection |
16kV
Air, 12kV Contact |
Operating
Temperature |
-5
to 45 C (23 to 113 F) |
Operating
Humidity |
10
to 90% Noncondensing |
Certifications |
CE,
FCC, IC |
