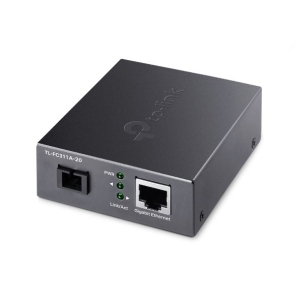

TP-Link TL-FC311A-20 Gigabit WDM Media Converter
Overview
- 1x 10/100/1000Mbps Auto-Negotiation RJ45 port supports
Auto-MDI/MDIX
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
- Adopts WDM technology, transmitting and receiving data on one single
fiber
- Extends fiber distance up to 20 km
What This Product Does
TL-FC311A-20 is a gigabit media converter, providing a gigabit RJ-45 port and
a gigabit SC fiber port, which can convert between electrical and optical
signals. And long-distance data transmission through optical fiber can be
applied to commercial scenarios such as park security monitoring and wireless
networking.
How This Product Works
TL-FC311A-20 adopts WDM (wavelength division multiplexing) technology,
helping send and receive data at a distance of up to 20 km with only a single
mode fiber, which saves half of the cable deployment cost for customers.
TL-FC311A-20 transmits data at 1550 nm wavelength and receives data at 1310 nm
wavelength on optical fiber. Therefore, the terminal device used in conjunction
with the TL-FC311A-2 should send data at a
wavelength of 1310 nm and receive data at a wavelength of 1550 nm. TP-Link
another media converter TL-FC311B-20 is one of the products that can cooperate
with TL-FC311A-20.
Other Features
Besides, this media converter can be used as a standalone device (no rack
required) or used with TP-Link's TL-FC1420 rack for auto MDI/MDI-X in TX port in
which duplex mode is automatically negotiated.
Specifications
|
NETWORK |
|
Standards
and Protocols |
IEEE
802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE
802.3z |
|
ENVIRONMENT |
|
Operating
Temperature |
0C
to 50C (32F to 122F) |
|
Storage
Temperature |
-40C
to 70C (-40F to 158F) |
|
Operating
Humidity |
10%
to 90% RH non-condensing |
|
Storage
Humidity |
5%
to 90% RH non-condensing |
|
HARDWARE
FEATURES |
|
Interface |
1
x Gigabit SC Fiber Port |
|
1
x 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX) |
|
Network
Media |
Single-mode
Fiber |
|
UTP
category 5, 5e cable (maximum 100m) |
|
Power
Supply |
External
Power Adapter: 5 V/0.6 A |
|
LED |
PWR,
Link/Act |
|
Dimensions
( W x D x H ) |
3.7
x 2.9 x 1.1 in |
|
(95
73 27 mm) |
|
Wave
Length |
1550
nm TX, 1310 nm RX |
|
MEDIA
CONVERTER & MODULE |
|
Fiber
Type |
9/125
m single-mode
fiber |
