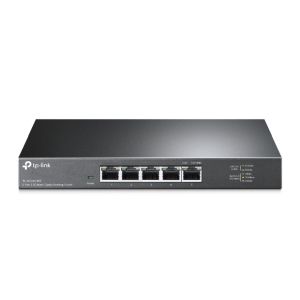

TP-Link TL-SG105-M2 5-Port 2.5G Desktop Switch
Overview
- Five 2.5 Gbps Ports. 5 x 2.5-Gigabit ports unlock the highest performance
of your Multi-Gig bandwidth and devices, and provide up to 25 Gbps of
switching capacity.
- Super-Fast Connections. Provides super-fast connections to 2.5G NAS, 2.5G
Server, gaming computer, 2.5G WiFi 6 AP, 4K video, and more.
- Ideal for Various Scenarios. Built for LAN parties, home entertainment,
small and home offices, and instant transfer for workstations,
- Hassle-Free Cabling. Instantly upgrade to 2.5 Gbps without the need to
upgrade to Cat6 wiring, reducing wiring costs and hassle.**
- Silent Operation. Industry-leading fanless design ensures silent
operation, ideal for any home or business.
- Plug and Play. Allows for easy deployment without the need for a
technician.
- Metal Casing. Durable metal casing and desktop/wall-mounting design are
well-suited for different environments.
Specifications
|
HARDWARE
FEATURES |
|
Standards
and Protocols |
IEEE
802.3, 802.3u, 802.3ab, 802.3x, 802.1p,
802.3bz |
|
Interface |
5x
100Mbps/1Gbps/2.5Gbp Ports, Auto-Negotiation,
Auto-MDI/MDIX |
|
Fan
Quantity |
Fanless |
|
External
Power Supply |
External
Power Adapter (Output: 12 VDC / 1 A) |
|
LED
Indicator |
System
Power: 1 |
|
Link/Act
Indicators: 5, 1 indicator per port built into each RJ-45
port |
|
Dimensions
( W x D x H ) |
8.2x4.9x1.0
in (209x126x26 mm) |
|
Max
Power Consumption |
12.11
W |
|
Max
Heat Dissipation |
41.32
BTU/h |
|
PERFORMANCE |
|
Switching
Capacity |
25
Gbps |
|
Packet
Forwarding Rate |
18.6
Mpps |
|
MAC
Address Table |
16
K |
|
Packet
Buffer Memory |
1.5
Mb |
|
Jumbo
Frame |
10
KB |
|
SOFTWARE
FEATURES |
|
Advanced
Features |
802.3X
Flow Control |
|
802.1p/DSCP
QoS |
|
Transfer
Method |
Store
and Forward |
|
OTHERS |
|
Certification |
CE,
FCC ,RoHS |
|
Package
Contents |
5-Port
2.5G Multi-Gigabit Desktop Switch TL-SG105-M2 |
|
Power
Adapter |
|
Installation
Guide |
|
Rubber
Feet |
|
Environment |
Operating
Temperature: 040 C (32104 F) |
|
Storage
Temperature: -4070 C (-40158 F) |
|
Operating
Humidity: 1090% RH non-condensing |
|
Storage
Humidity: 590% RH
non-condensing |
