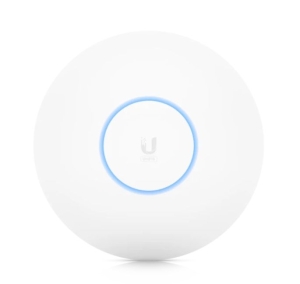

Ubiquiti UniFi 6 Long-Range Access Point
The Ubiquiti U6-LR UniFi Wi-Fi 6 Long-Range Access Point is a powerful 4x4 Mu-/Mimo Wi-Fi 6 access point that offers 2.4GHz @ 600Mbps and 5GHz @ 2.4Gbps speeds. It does not include a POE injector, so make sure you have one before you purchase this product.
The Ubiquiti U6-LR UniFi Wi-Fi 6 Long-Range Access Point is a powerful addition to any home or office network. This access point features four-stream high-efficiency Wi-Fi 6 technology, allowing it to offer up to 2.4 Gbps of radio rate on the 5 GHz band and 600 Mbps on the 2.4 GHz band. Additionally, this access point is powered by an 802.3at PoE injector (not included), making it easy to deploy and manage.
Features
- 1.3 GHz dual-core processor (now upgraded to support full-duplex 1 Gbps
TCP/IP performance)
- Four-stream high-efficiency Wi-Fi 6 technology
- 5 GHz band 4x4 MU-MIMO and OFDMA with radio rate of 2.4 Gbps
- 2.4 GHz band 4x4 MIMO with radio rate of 600 Mbps
- Powered with 802.3at PoE (PoE injector not included)
Specifications
|
MECHANICAL |
|
|
Dimensions |
220
x 48 mm (8.66 x 1.89") |
|
Weight |
Without
Mount: 800 g (1.76 lb) |
|
With
Mount: 930 g (2.05 lb) |
|
Enclosure
Material |
Plastic |
|
Mounting
Material |
SGCC
Steel |
|
Weatherproofing |
IP54 |
|
HARDWARE |
|
|
Processor
Specs |
Dual-Core
Cortex A53 at 1.35 GHz |
|
Memory
Information |
512
MB |
|
Management
Interface |
Ethernet |
|
Networking
Interface |
(1)
1 Gbps Ethernet RJ45 |
|
Button |
Factory
Reset |
|
LEDs |
RGB |
|
Power
Method |
PoE+,
Passive PoE (48V) |
|
Power
Supply |
UniFi
PoE Switch |
|
48V,
0.5A PoE Adapter (Not Included) |
|
Supported
Voltage Range |
44
to 57VDC |
|
Max.
Power Consumption |
16.5W |
|
Max.
TX Power |
|
|
2.4
GHz |
26
dBm |
|
5
GHz |
26
dBm |
|
MIMO |
|
|
2.4
GHz |
4
x 4 |
|
5
GHz |
4
x 4 |
|
Throughput
Speeds |
|
|
2.4
GHz |
600
Mbps |
|
5
GHz |
2400
Mbps |
|
Antenna
Gain |
|
|
2.4
GHz |
4
dBi |
|
5
GHz |
5.5
dBi |
|
Mounting |
Wall/Ceiling
(Kits Included) |
|
Operating
Temperature |
-30
to 60 C (-22 to 140 F) |
|
Operating
Humidity |
5
- 95% Noncondensing |
|
Certifications |
CE,
FCC, IC |
|
SOFTWARE |
|
|
Wi-Fi
Standards |
802.11a/b/g |
|
Wi-Fi
4/Wi-Fi 5/Wi-Fi 6 |
|
Wireless
Security |
WPA-PSK,
WPA-Enterprise (WPA/WPA2/WPA3*) |
|
*Supported
With Upcoming Controller Versions |
|
BSSID |
8
per Radio |
|
VLAN |
802.1Q |
|
Advanced
QoS |
Per-User
Rate Limiting |
|
Guest
Traffic Isolation |
Supported |
|
Concurrent
Clients |
300+ |
|
SUPPORTED
DATA RATES (MBPS) |
|
|
802.11a |
6,
9, 12, 18, 24, 36, 48, 54 Mbps |
|
802.11b |
1,
2, 5.5, 11 Mbps |
|
802.11g |
6,
9, 12, 18, 24, 36, 48, 54 Mbps |
|
802.11n
(Wi-Fi 4) |
6.5
Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
|
802.11ac
(Wi-Fi 5) |
6.5
Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT
20/40/80/160) |
|
802.11ax
(Wi-Fi 6) |
7.3
Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE
20/40/80/160) |
Networking
