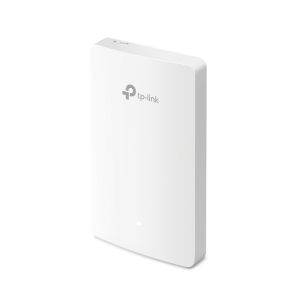

TP-Link EAP235-Wall Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point

IMG 1 of 4
Our Price:
$108.95
RRP:
$140.00
You Save:
$31.05
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
495464
(?) Brand:
TP-Link
Manuf No:
EAP235-WALL
EAP235WALL
Shipping Weight:
1.2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
EAP235WALL, EAP235-WALL, EAP235Wall, EAP235-Wall, NWTLEAP235WALL, NWTL-EAP235-WALL, 4816340, TL20120, 6935364088972, II205487

TP-Link EAP235-Wall Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point



Overview

  • Omada SDN Ready: Ready for Omada SDN controller for centralized management and monitoring.
  • Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds.
  • Four Gigabit Ports: 4 Gigabit Ethernet ports, one uplink and three access ports. PoE pass-through is available on one of the access port providing power for desk phones, cameras or other PoE devices.
  • Centralized Management: Cloud access and Omada app for mobility and easy management.
  • Elegant Appearance: Ultra slimmest and conspicuous design blends the access point into the walls of hotel rooms, hospitals, offices, and dormitories.
  • Easy Installation and PoE Support: Easy-mount construction, compatible with US, EU and 86mm junction boxes with PoE support.
  • Customer Oriented Guest Network: Along with multiple ways of login (SMS, Facebook Wi-Fi, Voucher, and customizable captive portal) allows guest access smoothly and friendly.
  • Advanced Wireless Tech: Optimize network performance with airtime fairness, band steering, and beamforming technologies.

Specifications

HARDWARE FEATURES

Interface

Uplink port: One 10/100/1000 Mbps Ethernet Port, accepts 802.3af or 802.3at PoE

Access ports: Three 10/100/1000 Mbps Ethernet Ports with one PoE power pass-thru port

Physical Security Lock

Yes

Button

Reset

Power Supply

802.3af/802.3at PoE

Power Consumption

9.8 watts

24.4 watts with 13w PoE output

Dimensions

5.6 x 3.4 x 0.8 in.

143 x 86 x 20 mm

Antenna

2.4 GHz: 2x 4 dBi

5 GHz: 2x 4 dBi

Mounting

Wall Plate Mounting

WIRELESS FEATURES

Wireless Standards

IEEE 802.11a/b/g/n/ac

Frequency

2.4 GHz and 5 GHz

Signal Rate

5 GHz: Up to 867 Mbps

2.4 GHz: Up to 300 Mbps

Wireless Functions

16 SSIDs (Up to 8 SSIDs on each band)

Enable/ disable SSID broadcast

Automatic channel assignment

Transmit power control (adjustable in 1 dBm step)

QoS (WMM)

Band steering

Beamforming

Load balance

Rate limit

Scheduled reboot

Wireless scheduled on/off

Wireless Statistics based on SSID, access point, or client

Wireless Security

Captive portal authentication

Access control list

Wireless MAC address filtering

Wireless isolation between clients

SSID to VLAN Mapping

LAN port-based VLAN

Rogue AP detection

802.1X EAP support

64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise

Transmission Power

21 dBm (2.4 GHz)

21 dBm (5 GHz)

MANAGEMENT

Omada App

Yes

Centralized Management

Omada Cloud-Based Controller

Omada Hardware Controller (OC300)

Omada Hardware Controller (OC200)

Omada Software Controller

Cloud Access

Yes

Email Alerts

Yes

LED ON/OFF Control

Yes

Management MAC Access Control

Yes

SNMP

v1, v2c

System Logging Local/Remote Syslog

Local/ remote syslog

SSH

Yes

Web-based Management

HTTP/ HTTPS

L3 Management

Yes

Multi-site Management

Yes

Management VLAN

Yes

OTHERS

Certification

FCC, RoHS

Package Contents

Omada AC1200 Wireless Gigabit Wall Plate Access Point EAP235-Wall

Installation guide

Mounting screw

Environment

Operating temperature: 040 (32104 )

Storage temperature: -4070 (-40158 )

Operating humidity: 1090% RH non-condensing

Storage humidity: 590% RH non-condensing

No additional files, specification sheets, guides or documentation found for product.

Warranty: 5 year return to base
