WIRELESS |
|
Standards |
Wi-Fi
6 |
|
IEEE
802.11ax/ac/n/a 5 GHz |
|
IEEE
802.11ax/n/b/g 2.4 GHz |
|
WiFi
Speeds |
AX3000 |
|
5
GHz: 2402 Mbps (802.11ax) |
|
2.4
GHz: 574 Mbps (802.11ax) |
|
WiFi
Range |
4-7+
Bedroom Houses (3-pack) |
|
TP-Link
Mesh Technology |
|
Optional
Ethernet backhaul work together to link Deco units to provide seamless
coverage |
|
4x
Antennas (Internal) |
|
Multiple
antennas form a signal-boosting array to cover more directions and large
areas |
|
Beamforming |
|
Concentrates
wireless signal strength towards clients to expand WiFi
range |
|
WiFi
Capacity |
High |
|
Dual-Band |
|
Distribute
devices to different bands for optimal
performance |
|
MU-MIMO |
|
Silmultaneously
communicates with multiple MU-MIMO clients |
|
OFDMA |
|
Silmultaneously
communicates with multiple WiFi 6 clients |
|
6
Streams |
|
More
than enough bandwidth for connected devices |
|
Working
Modes |
Router
Mode |
|
Access
Point Mode |
|
HARDWARE |
|
Processor |
1
GHz Quad-Core CPU |
|
Ethernet
Ports |
2x
Gigabit Ports |
|
*Per
Deco Unit |
|
Supports
WAN/LAN auto-sensing |
|
Buttons |
Reset
Button |
|
Power |
12
V 2
A |
|
SECURITY |
|
WiFi
Encryption |
WPA |
|
WPA2 |
|
WPA3 |
|
Network
Security |
SPI
Firewall |
|
Access
Control |
|
HomeCare
Antivirus |
|
Malicious
Site Checker |
|
Port
Intrusion Prevention |
|
Infected
Device Isolation |
|
Notification
and Log |
|
Guest
Network |
1x
5 GHz Guest Network |
|
1x
2.4 GHz Guest Network |
|
SOFTWARE |
|
Protocols |
IPv4 |
|
IPv6 |
|
Service
Kits |
HomeCare |
|
Parental
Controls |
HomeCare
Parental Controls |
|
Custom
Profiles |
|
Content
Filtering |
|
URL
FIltering |
|
Time
Limit |
|
Time
Schedule (Bed Time) |
|
Log
Insight |
|
Usage
Monitor |
|
Monthly
Reports |
|
WAN
Types |
Dynamic
IP |
|
Static
IP |
|
PPPoE |
|
PPTP |
|
L2TP |
|
Quality
of Service |
HomeCare
QoS |
|
QoS
by Device |
|
QoS
by Application |
|
Cloud
Service |
OTA
Firmware Upgrade |
|
TP-Link
ID |
|
DDNS |
|
NAT
Forwarding |
Port
Forwarding |
|
Port
Triggering |
|
DMZ |
|
UPnP |
|
IPTV |
IGMP
Proxy |
|
IGMP
Snooping |
|
Bridge |
|
Tag
VLAN |
|
DHCP |
Address
Reservation |
|
DHCP
Client List |
|
Server |
|
DDNS |
TP-Link |
|
Management |
Deco
App |
|
PHYSICAL |
|
Dimensions
(WxDxH) |
4.33
x 4.33 x 4.99 in |
|
(110
x 110 x 114 mm) |
|
Package
Contents |
Deco

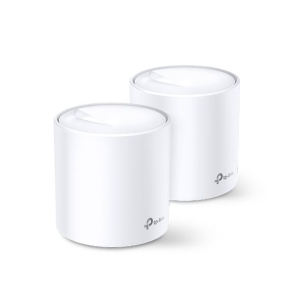

X60 (2-pack) |
|
2
Deco X60 Units |
|
1
RJ45 Ethernet Cable |
|
2
Power Adapters |
|
1
Quick Installation Guide |
|
OTHERS |
|
System
Requirements |
Android
4.4 or later |
|
iOS
9.0 or later |
|
Certifications |
CE,
FCC, IC, RoHS, RCM, JPA, JRF, VCCI |
|
Environment |
Operating
Temperature: 0~40 (32 ~104) |
|
Storage
Temperature: -40~70 (-40 ~158) |
|
Operating
Humidity: 10%~90% non-condensing |
|
Storage
Humidity: 5%~90% non-condensing |
|
TEST
DATA |
|
WiFi
Transmission Power |
CE: |
|
<20
dBm (2.4 GHz) |
|
<23
dBm (5 GHz) |
|
FCC: |
|
<30
dBm (2.4 GHz) |
|
<30
dBm (5
GHz) |
Networking
