All stock codes associated to this product
SNV3500, SY70114

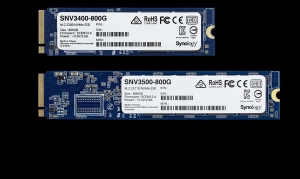

Synology M.2 NVMe SSD SNV3500 - 400GB
Overview
M.2 22110 NVMe SSD, built for demanding cache deployments in Synology
rackmount NAS
Durable SSD for demanding caching workloads
Synology SNV3000 series NVMe SSD is designed to handle tough caching
workloads in a 24/7 multi-user environment. Its durable I/O performance boosts
system responsiveness and speeds up handling of frequent access data, providing
a streamlined storage experience while minimizing service disruptions to your
Synology NAS.
Consistently fast caching for 24/7
environments
Built for system cache, Synology SNV3000 series pushes up random I/O
performance and reduces latency in demanding 24/7 environments. It offers
durable caching with over 375,000/70,000 4K random read/write IOPS1 and a 988
TBW endurance rating2, suitable for multimedia post-production and database
applications.
Data integrity safeguards
Synology SNV3000 series integrates end-to-end data protection to safeguard
data integrity over the entire transfer path. The SNV3500 comes with power loss
protection circuit design3, further preventing data corruption during an
abnormal shutdown: Dedicated capacitors provide power to flush data-in-flight
into NAND flash in a power loss event and firmware is designed to enable a
correct restart on the next power-up.
Lifetime analytics based on actual workload
Full integration with Synologys DiskStation Manager (DSM) enables lifetime
analytics for each SNV3000 series unit based on actual workloads4
Timely Notifications
Plan further ahead for uninterrupted system performance and longevity with
timely notifications.
Optimal Use
Easy monitoring allows you to make optimal use of each SSD.
Purpose-built for Synology NAS
Synology SNV3000 series is thoroughly tested for compatibility with our
systems following each engineering change, while firmware and component changes
are strictly managed. Intensive I/O stress, power cycling, and temperature
trials ensure that all products meet our strictest standards for quality and
reliability.
Specifications
|
General |
|
|
Capacity |
400
GB |
|
Form
Factor |
M.2
22110 |
|
Interface |
NVMe
PCIe 3.0 x4 |
|
Performance |
|
|
Sequential
Read (128KB, QD32) |
3,100
MB/s |
|
Sequential
Write (128KB, QD32) |
550
MB/s |
|
Random
Read (4KB, QD256) |
205,000
IOPS |
|
Random
Write (4KB, QD256) |
40,000
IOPS |
|
Endurance
and Reliability |
|
|
Terabytes
Written (TBW)* |
500
TB |
|
Drive
Writes Per Day (DWPD) |
0.68 |
|
Mean
Time Between Failures (MTBF) |
1.8
million hours |
|
Uncorrectable
Bit Error Rate (UBER) |
<
1 sector per 1017 bits read |
|
Power
Loss Protection |
- |
|
Warranty* |
5
Years |
|
Notes |
Based
on the JESD219A enterprise workload. |
|
5-year
limited warranty provides coverage until the end of the warranty period or
until the endurance usage of the drive has been reached, whichever comes
first. (Learn more) |
|
Power
Consumption |
|
|
Supply
Voltage |
3.3V
( 5%) |
|
Active
Read (Typ.) |
3.7
W |
|
Active
Write (Typ.) |
3.4
W |
|
Idle |
2.0
W |
|
Notes |
Power
consumption may differ according to configurations and
platforms. |
|
Temperature |
|
|
Operating
Temperature |
0C
to 70C (32F to 158F) |
|
Storage
Temperature |
-40C
to 85C (-40F to 185F) |
|
Others |
|
|
Size
(Height x Width x Depth) |
4.5
mm x 22 mm x 110 mm |
|
Certification |
FCC |
|
CE |
|
EAC |
|
BSMI |
|
VCCI |
|
RCM |
|
KC |
|
RoHS |
|
Compatibility |
|
|
Applied
Models |
M.2
SSD via M2D18 |
|
M.2
SSD via M2D20 |
|
M.2
SSD via E10M20-T1 |
|
M.2
SSD via Internal
slot |
