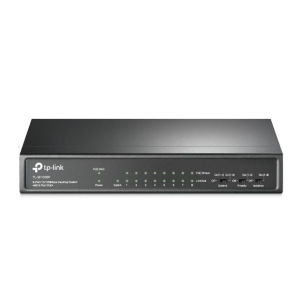

TP-Link TL-SF1009P Desktop Switch with 8-Port PoE+ - 9-Port

HARDWARE FEATURES

Interface

9x 10/100 Mbps RJ45 Ports (8x 10/100 Mbps 802.3af/at PoE+ ports)

AUTO Negotiation

AUTO MDI/MDIX

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100 STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100 STP (maximum 100m)

Fan Quantity

Fanless

Physical Security Lock

Yes

External Power Supply

External Power Adapter (Output: 53.5VDC / 1.31A)

Packet Forwarding Rate

1.3392 Mpps

PoE Ports (RJ45)

Standard: 802.3 af/at compliant

PoE Ports: Ports 18

Power Supply: 65 W

Backbound Bandwidth

1.8 Gbps

Mac Address Table

2K

Jumbo Frame

2 KB

Switching Capacity

1.8 Gbps

Dimensions ( W x D x H )

6.7 x 3.9 x 1.1 in (171 x 98 x 27 mm)

Max Power Consumption

3.6 (220/50 Hz. no PD connected)

77.08 (220/50 Hz. with 65 W PD connected)

Max Heat Dissipation

12.28 BTU/h (no PD connected)

262.84 BTU/h (with 65 W PD connected)

SOFTWARE FEATURES

Transmission Method

Store-And-Forward

Advanced Functions

Compatible With IEEE 802.3af/at Compliant PDs

Extend Mode Button (Ports 14 and Ports 18, Up to 250 m PoE power supply and data transmission)

Priority Mode Button (Ports 12)

Isolation Mode Button (Ports 18)

Mac Address Auto-Learning and Auto-Aging

IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode

OTHERS

Certification

FCC, CE, RoHS

Package Contents

TL-SF1009P

Power Adapter

Installation Guide

Environment

Operating Temperature: 040 (32104 )

Storage Temperature: -4070 (-40158 )

Operating Humidity: 1090% RH non-condensing

Storage Humidity: 590% RH non-condensing
