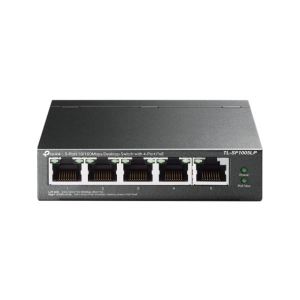

TP-Link TL-SF1005LP Desktop PoE Switch with 4-Port PoE - 5-Port 10/100Mbps

IMG 1 of 1
Our Price:
$51.30
RRP:
$69.00
You Save:
$17.70
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
495546
(?) Brand:
TP-Link
Manuf No:
TL-SF1005LP
TLSF1005LP
Shipping Weight:
0.3 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
TLSF1005LP, TL-SF1005LP, TL-SF1005LP, NWTLSF1005LP, NWTL-SF1005LP, 5042511, 6935364052782, II40697

TP-Link TL-SF1005LP 5-Port 10/100Mbps Desktop PoE Switch with 4-Port PoE



Overview

  • 5x 10/100 Mbps RJ45 ports
  • 4x PoE ports transfer data and power on individual cables
  • Works with IEEE 802.3af compliant PDs
  • Up to 250 m data and power transmitting range under Extend Mode**
  • Priority Mode ensures high priority of ports 12 to guarantee the quality of sensitive application
  • Supports PoE Power up to 41 W for all PoE ports*
  • Plug and play with no configuration required

Specifications

HARDWARE FEATURES

Interface

5x 10/100 Mbps RJ45 Ports (Ports 14 support 802.3af PoE)

AUTO Negotiation

AUTO MDI/MDIX

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100 STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100 STP (maximum 100m)

Fan Quantity

Fanless

Physical Security Lock

Yes

External Power Supply

External Power Adapter (Output: 53.5 V DC / 0.81 A)

Packet Forwarding Rate

0.744 Mpps

PoE Ports (RJ45)

Standard: 802.3 af compliant

PoE Ports: Ports 14

Power Supply: 41 W

Mac Address Table

2K

Jumbo Frame

2 KB

Switching Capacity

1 Gbps

Dimensions ( W x D x H )

3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm)

Max Power Consumption

1.9 W (220 V / 50 Hz, no PD connected)

47 W (220 V / 50 Hz, with 41 W PD connected)

Max Heat Dissipation

6.48 BTU/h(no PD connected)

160.27 BTU/h(with 41 W PD connected)

SOFTWARE FEATURES

Transmission Method

Store-And-Forward

Advanced Functions

Compatible With IEEE 802.3af/at Compliant PDs

Extend Mode Button (Ports 14)

Priority Mode Button (Ports 12)

Mac Address Auto-Learning And Auto-Aging

IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode

OTHERS

Certification

FCC, CE, RoHS

Package Contents

TL-SF1005LP

Power Adapter

Installation Guide

Environment

Operating Temperature: 040 (32104 )

Storage Temperature: -4070 (-40158 )

Operating Humidity: 1090% RH non-condensing

Storage Humidity: 590% RH non-condensing



No additional files, specification sheets, guides or documentation found for product.

Warranty: 60 months*

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
