All stock codes associated to this product
RE500X, NWTLRE500X, NWTL-RE500X, RE500X, 4897098682869, II346528, RE500X, 5265513

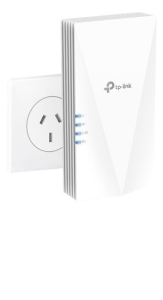

TP-Link RE500X AX1500 Wi-Fi Range Extender
Overview
- RE500X comes equipped with the latest wireless technology, Wi-Fi 6, for
faster speeds, greater capacity, and reduced network congestion.
- Creates a Mesh network by connecting to an OneMesh router for seamless
whole-home coverage.
- Gigabit Ethernet Port Provide faster-wired connections to smart TVs,
computers and gaming consoles
- Intelligent Signal Light Helps to determine the best location for optimal
Wi-Fi coverage by indicating the signal strength in the current
placement
- AP Mode create a new Wi-Fi access point to enhance your wired network with
Wi-Fi capability
- TP-LINK Tether App Easily access and manage your network using any iOS or
Android mobile device
- Ultimate Compatibility Extend the range of any Wi-Fi router or wireless
access point
Specifications
|
HARDWARE
FEATURES |
|
Ports |
1
Gigabit Ethernet Port |
|
Button |
WPS
Button, Reset Button |
|
Power
Consumption |
10W |
|
Dimensions
( W x D x H ) |
2.91.84.9
in. (74.046124.8 mm) |
|
Antenna |
2
External Antennas |
|
WIRELESS
FEATURES |
|
Wireless
Standards |
IEEE
802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n 2.4GHz |
|
Frequency |
2.4GHz
and 5GHz |
|
Signal
Rate |
300
Mbps at 2.4GHz, 1200 Mbps at 5GHz |
|
Reception
Sensitivity |
5GHz: |
|
11a
6Mbps: -93dBm, |
|
11a
54Mbps: -75dBm |
|
11ac
HT20 MCS0: -92dBm, |
|
11ac
HT20 MCS8: -70dBm |
|
11ac
HT40 MCS0: -90dBm, |
|
11ac
HT40 MCS9: -66dBm |
|
11ac
HT80 MCS0: -87dBm, |
|
11ac
HT80 MCS9: -62dBm |
|
2.4GHz: |
|
11g
54Mbps: -77dBm, |
|
11n
HT20 MCS7: -75dBm |
|
11n
HT40 MCS7: -72dBm |
|
Transmit
Power |
CE:
2.4GHz 20dBm, 5GHz 30dBm |
|
Wireless
Functions |
Enable/Disable
Wireless Radio, Wireless Statistics |
|
Wireless
Security |
64/128-bit
WEP, WPA/WPA-PSK2 encryptions |
|
OTHERS |
|
Package
Contents |
Wi-Fi
Range Extender RE500X |
|
Quick
Installation Guide |
|
System
Requirements |
Microsoft
Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10, MAC OS,
NetWare, UNIX or Linux |
|
Internet
Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled
browser |
|
Certifications |
FCC,
RoHS |
